Microscopes > Upright microscopes > Bright field microscopes > Bresser > Biorit > Bresser Microscope Biorit, mono, 20x-1280x
Product no.: 12857

Microscope Biorit, mono, 20x-1280x

$ 286.00 incl. VAT plus shipping costs
too expensive?
long-term
Product not available anymore + lead time

Product description

More about the series Biorit...

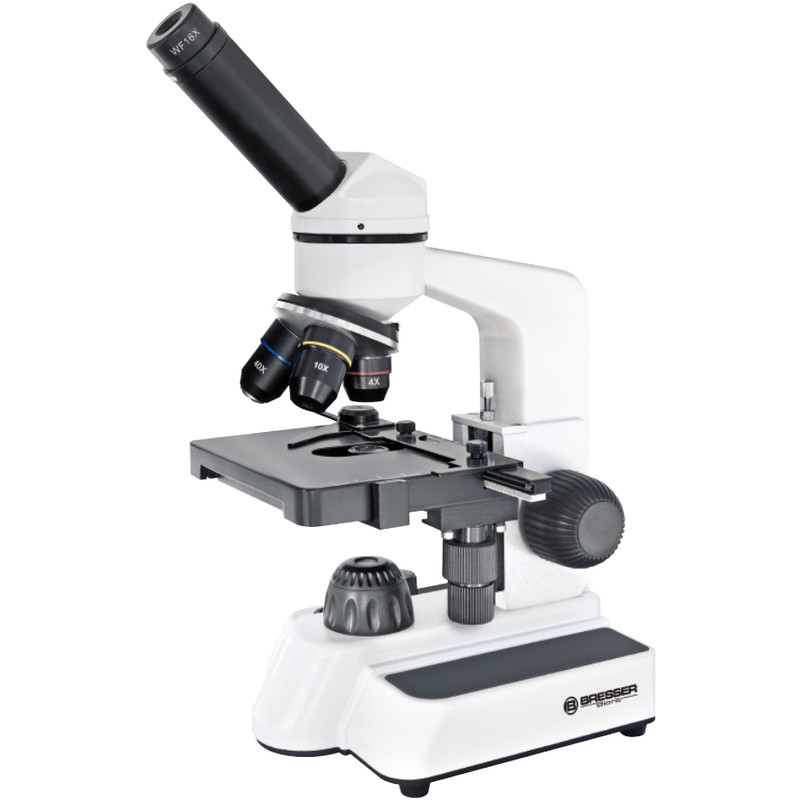

BRESSER Biorit 20x-1280x Microscope

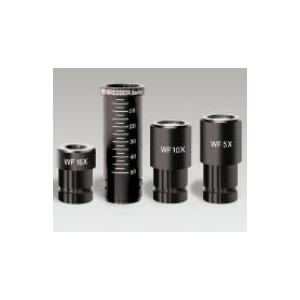

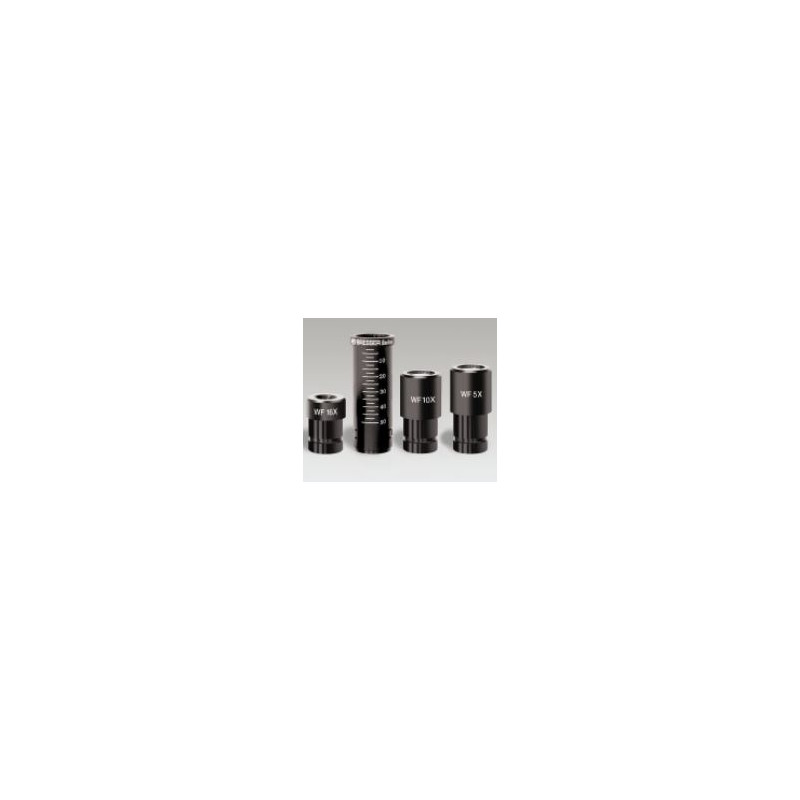

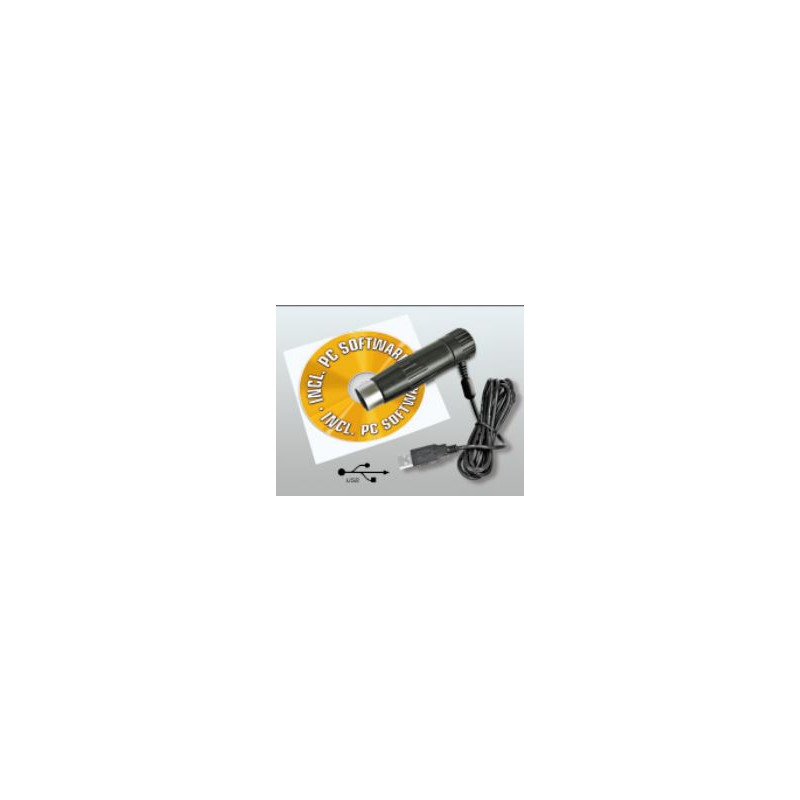

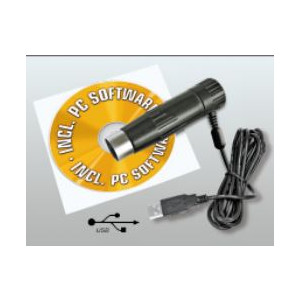

Like the BRESSER Visiomar, the biological microscope BRESSER Biorit is designed for the beginning in microscopy, for hobby and study. On the other hand, it has a superior equipment. A part of this is the accu, which is mounted in the microscope base. The accu makes possible a mobile use, as well as the AC adaptor makes possible the located use. In order to perform the transmitted light illumination, there are a LED, a condenser lens, which is integrated in the microscope stage, and a aperture wheel with 6 different apertures used to achieve fitting light intensity. The monocular viewing, with ist 5x, 10x and 16x wide field eyepiece, and the 4x, 10x and 40x objectives result, in conjunction with the 2x Barlow lens, in the total magnification range 40x-1280x. A big dimensioned focusing wheel with grip provides sharp adjusted pictures. You can observe the samples on your PC monitor with the BRESSER MicrOcular II (640 x 480 pixels), which is included. Its software enables you to save and replay your microscope observations (Windows XP, Vista, Windows 7).

Observation objects:
• Microbes
• Insects
• Plants

Specifications

Optics


Lighting
Transmitted light
Lamp type
LED (6V/6W, adjustable)
Magnification
20-1280 (40 - 1280)
Image scale
4,10,40 (4, 10, 40)
Eyepiece
5,10, 16 (Wide-field eyepiece, extra: 2x Barlow lens)
Condensor
einlinsiger Kondensor
Lens type
Achromatic
Power supply
Battery charger, mains plug

Capacity


brightfield
yes

Mechanics


Specimen stage
Cross table (with vernier scale)
Viewing posture (°)
45° oblique viewing, 360° rotating head
Focusing
Coarse movement
Type of build
Monocular

Special features


Centering stage
-
Dust cover bag
-
Luminous field diaphragm
-
Rechargeable battery operation
yes
Filter holder
yes
Built-in digital camera
yes

Camera


Resolution Photograph (Pixel)
640 x 480
Internal memory (Megabyte)
-
Extendable storage
-
LCD screen
-
Video function
-
Interface
USB

General


Colour
black-white
Series
Biorit
Suitable from
12
Length (mm)
200
Width (mm)
300
Height (mm)
145
Weight (g)
1600

Suitable for


Advanced
-
Pros
-
Beginners
yes

Field of application


Hobby
yes

Area of application


Interference contrast
-
Metallurgy
-

Product safety

Manufacturer: Bresser GmbH, Gutenbergstraße 2, 46414 Rhede, DE, www.bresser.de
