Microscopes > Upright microscopes > Bright field microscopes > Bresser > Erudit > Bresser Microscope Erudit DLX 40x-1000x
Product no.: 11739

Microscope Erudit DLX 40x-1000x

$ 314.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 1-2 weeks + lead time

Delivery not guaranteed until Christmas.
Show alternatives
Right of return up to January 31 2025!


Product description

More about the series Erudit...

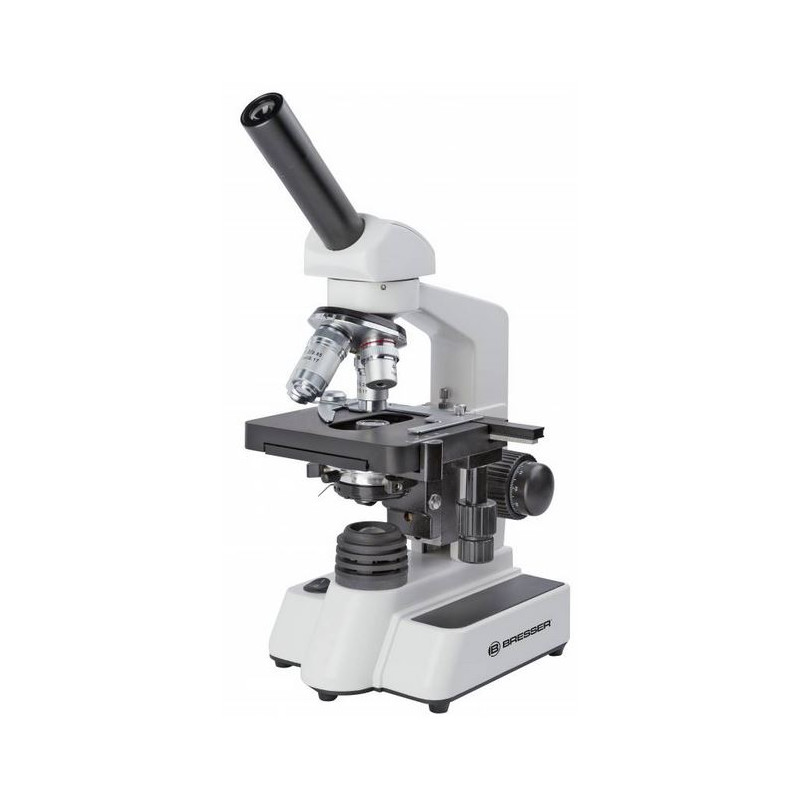

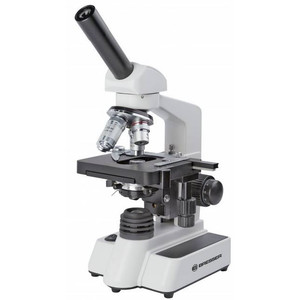

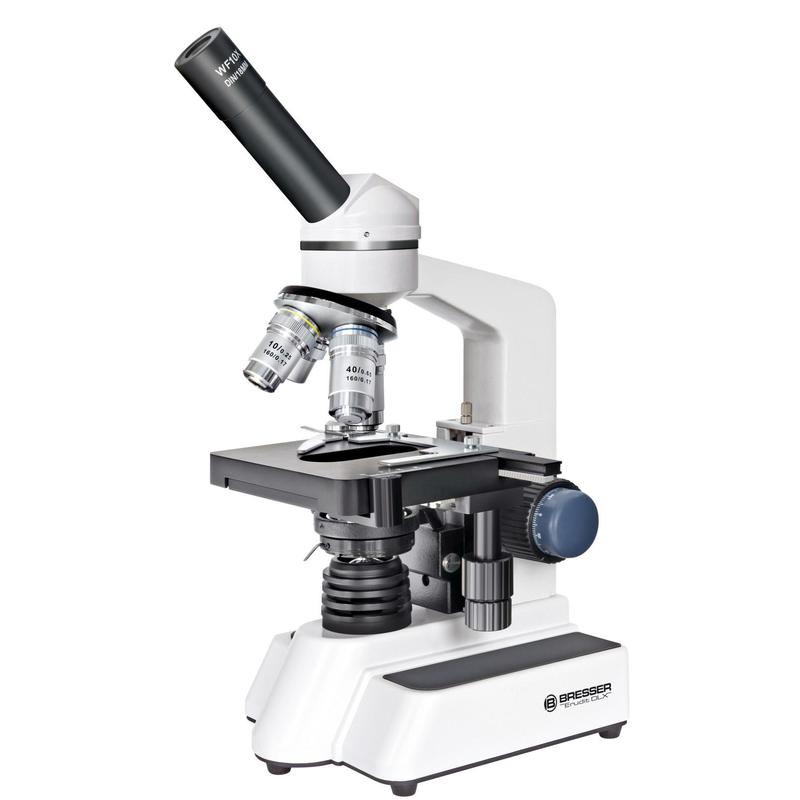

BRESSER Erudit DLX 40-1000x Microscope

The BRESSER Erudit DLX is a high-quality microscope for school, studies and hobby use. An integrated rechargeable battery makes the Erudit DLX for mobile use. The LED illuminator and the height adjustable condenser (with diaphragm and filter holder) offer an optimal illumination. The achromatic DIN-objectives allow a very good image. The 40x and 100x objectives are resilient to save the preparation for damage. The microscope has a 360° rotatable monocular view, coarse and fine focusing drive, and a coaxial mechanical desk with nonius.

FEATURES

  • Type: Biological microscope
  • View: Monocular
  • Comfortable view, 360° turnable head
  • Application range: Biology, Botany, Education, Teaching
  • Illumination: LED, adjustable condenser
  • Level: Beginner, Intermediate
  • Extras: Rechargeable battery operation
  • Warranty: 2 years
  • coaxial mechanical stage
  • Integrated dimmer
  • Eyepiece: 10x
  • Objectives: 4x, 10x, 40x, 100x
  • Magnifications: 40x, 100x, 400x, 1000x

SCOPE OF DELIVERY

  • Microscope body
  • eyepiece 10x
  • 4 objecitves (4x, 10x, 40x, 100x(oil))
  • Abbe condenser with field diaphragm and filter holder
  • blue filter
  • immersion oil
  • dust cover
  • power supply

Our expert comment:

This device was tested by our microscope expert who was very impressed with the quality. Good looks and excellent quality! If a monocular microscope is enough and you want to stay in the 200 euro range, this is the instrument of choice!

(Bernd Gährken)

Specifications

Optics


Lighting
Transmitted light
Lamp type
LED (6V/20W, continuously adjustable)
Magnification
40,100,400,1000
Image scale
4,10,40,100
Eyepiece
10 (Extra wide-field eyepiece)
Condensor
Abbe (height adjustable)
Lens type
Achromatic
Power supply
Power plug
Optical system
DIN (160mm)

Capacity


brightfield
yes

Mechanics


Specimen stage
Cross table (with vernier scale)
Viewing posture (°)
30° oblique viewing, 360° rotating head
Focusing
Coarse and fine movement (coaxial)
Type of build
Monocular

Special features


Built-in digital camera
-
Centering stage
-
Rechargeable battery operation
yes
Filter holder
yes
Luminous field diaphragm
yes
Dust cover bag
yes

General


Colour
beige-black
Series
Erudit
Suitable from
12
Length (mm)
150
Width (mm)
330
Height (mm)
130
Weight (g)
2600

Suitable for


Pros
-
Beginners
yes
Advanced
yes

Area of application


Interference contrast
-
Metallurgy
-

Product safety

manufacturer: Bresser GmbH, Gutenbergstraße 2, 46414 Rhede, DE, www.bresser.de
