More about the series Erudit...
Microscope for the demanding beginner
The Bresser Erudit DLX positions itself as a high-quality, robust and good equipped microscope for school, studies and hobby use. A rechargeable battery, which is integrated in the solid microscope base, enables the Erudit DLX to function also in mobile use.

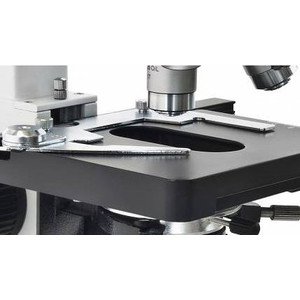

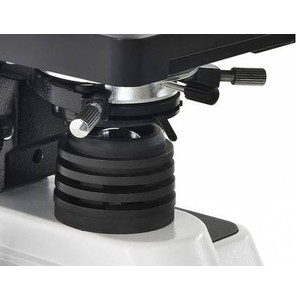

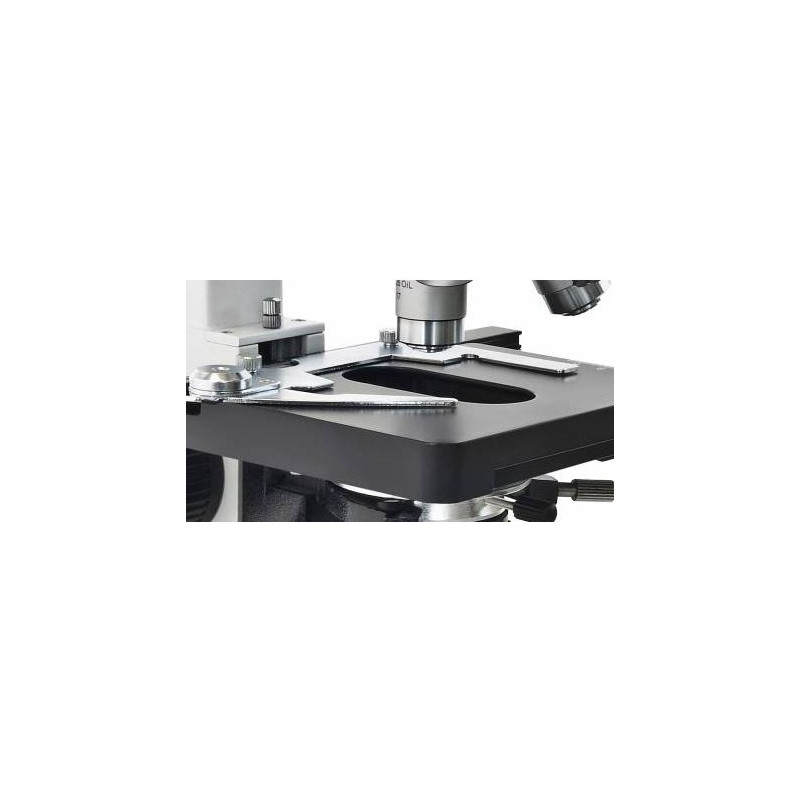

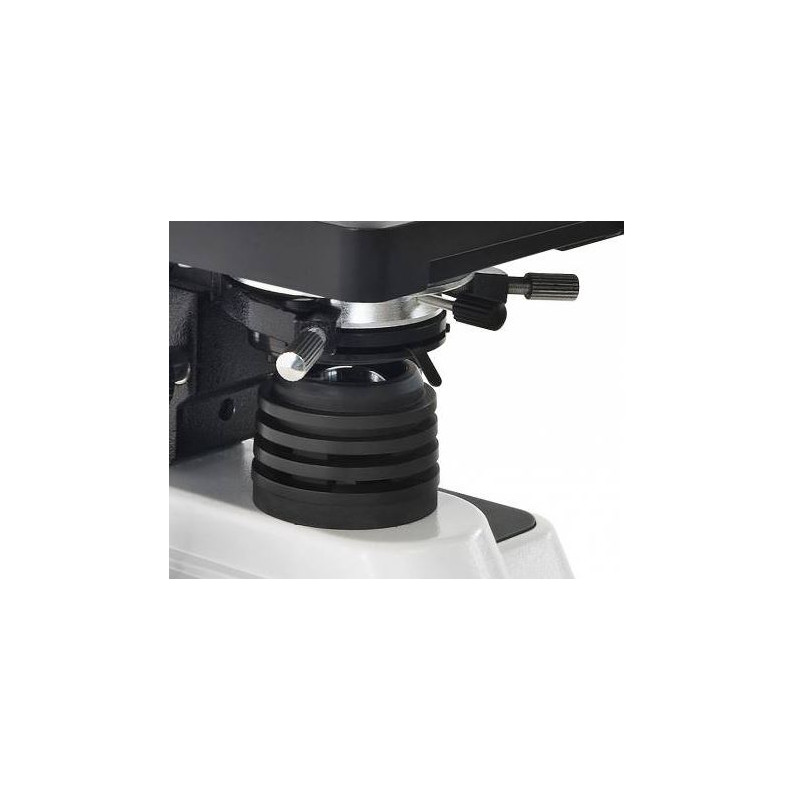

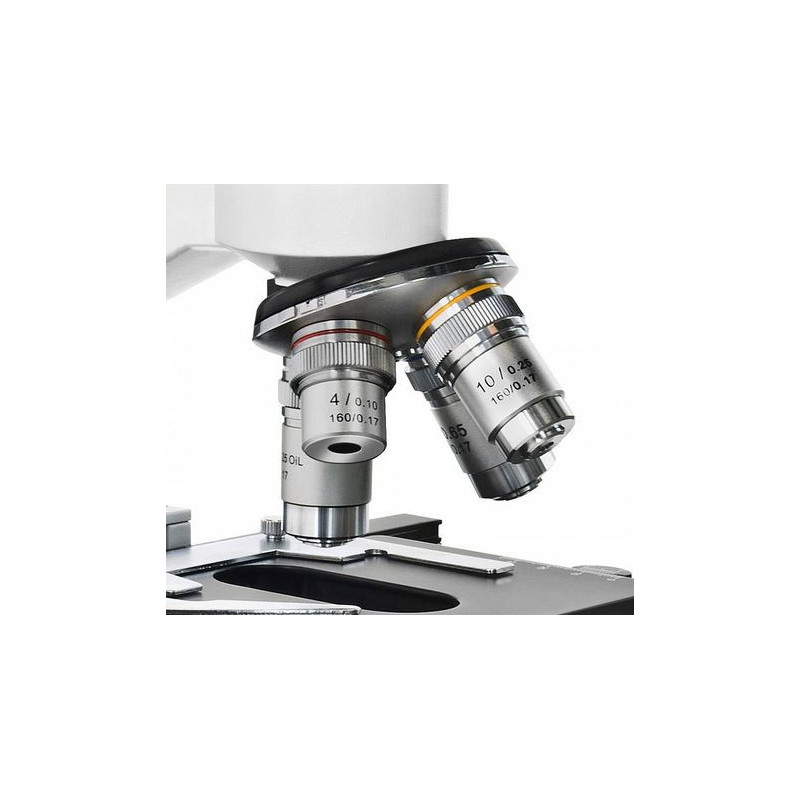

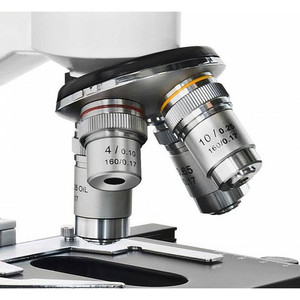

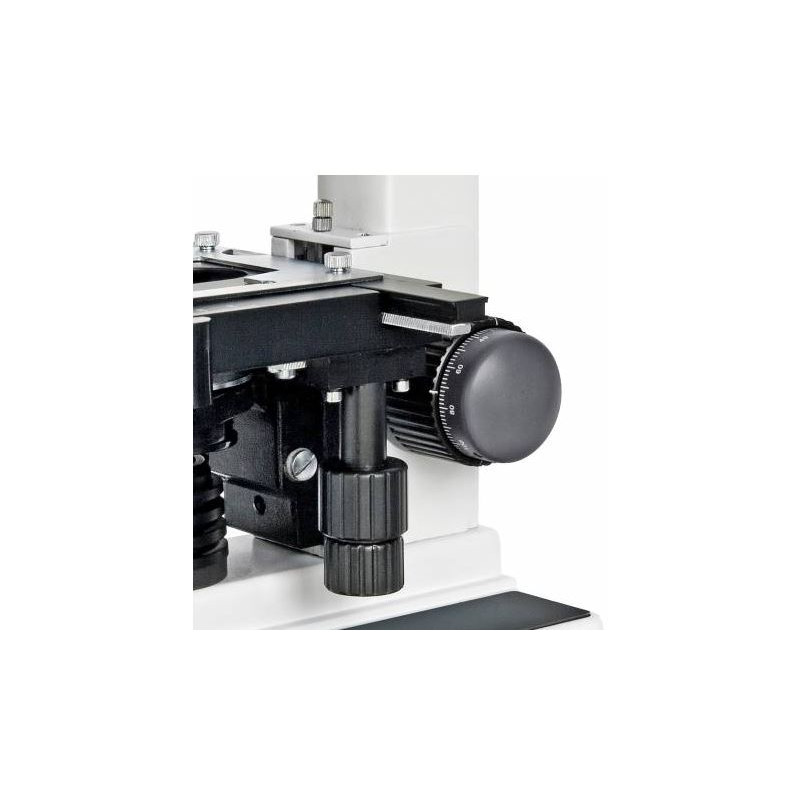

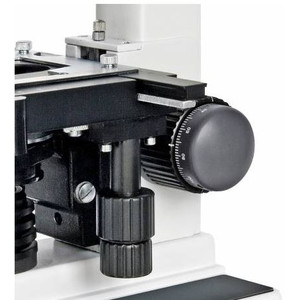

The transmitted light illumination of Erudit DLX is performed by a LED with dimmer (for continous variation of light intensity) and a height-adjustable condenser (with iris diaphragm and filter holder). This allows to the instrument to have 4x, 10x, 40x and 60x or 100x objectives (see technical data sheet). These all are DIN objectives. The 40x and the 60x objective are retractable (saveguarding against damages). With the 10x wide field eyepiece, you get a total magnification range 40x-600x. The microscope has a 360° rotatable monocular viewing, coaxial coarse and fine focusing drive, and a mechanical desk with vernier scales.
With meaningful accessories, which are available on request, you can build up your microscope to a more and more powerful system. Above all, we recommend the BRESSER MicrOcular II (640 x 480 pixels). With this electronic eyepiece, you can observe your preparations on your PC monitor. The software enables you to save and replay your microscope observations.
Observation objects:
Microbes
Bacteria
Vemin
FEATURES
- Type: Biological microscope
- View: Monocular
- Comfortable view, 360° turnable head
- Application range: Biology, Botany, Education, Teaching
- Illumination: LED, adjustable condenser
- Level: Beginner, Intermediate
- Extras: Rechargeable battery operation
- Warranty: 2 years
- coaxial mechanical stage
- Integrated dimmer
- Eyepiece: 10x
- Objectives: 4x, 10x, 40x, 60x
- Magnifications: 40x, 100x, 400x, 600x
SCOPE OF DELIVERY
- Microscope body
- eyepiece 10x
- 4 objecitves (4x, 10x, 40x, 60x)
- Abbe condenser with field diaphragm and filter holder
- blue filter
- dust cover
- power supply
Our expert comment:
This device was tested by our microscope expert who was very impressed with the quality. Good looks and excellent quality! If a monocular microscope is enough and you want to stay in the 200 euro range, this is the instrument of choice!
(Bernd Gährken)
