Microscope Science TFM-301, trino, 40x - 1000x

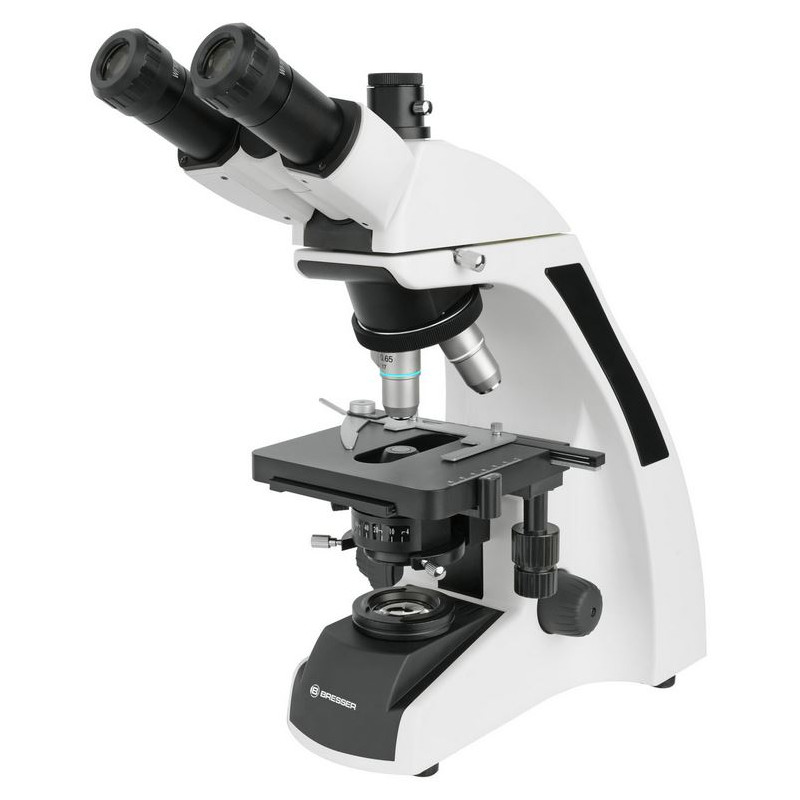

BRESSER Science TFM-301 Trino

The New BRESSER Science TFM-301 is a trinocular microsscope, which is equipped with semiplan objectives.

The WF 10x eyepieces offer a large visual field of 20mm. The interpupillary distance can be adjusted from ca. 55mm to 75mm. Dioptre adjustments are possible with both eyepieces.

The bright and durable LED illumination is dimmable and also very practical for darkfield microscopy*. Very versatile power supply system via USB port and cable or mains adapter (both included).

The Köhler illumination is regulable with the built-in luminous-field diaphragm and the vertically and horizontally adjustable Abbe condenser (numerical aperture 1.25, with iris diaphragm). An imprint of the different possible magnifications on the condenser makes the adjustment of the iris diaphragm very fast and precise.

Coaxial pinions drive the stage and focus which enables ergonomic operation of the microscope.

SCOPE OF DELIVERY

• Microscope with integrated LED illumination
• semiplan objectives (4x, 10x, 40x, 100x oil)
• 2x eyepieces (WF 10x)(Ø 30mm)
• Immersion oil
• Dust cover
• Mains adapter
• USB power cable
• Manual

*only with optional accessorie
