Microscopes > Upright microscopes > Bright field microscopes > Euromex > BioBlue > Euromex Microscope BioBlue, BB.4253, trino, DIN, semiplan, 40x-1000x, 10x/18, NeoLED, 1W
Product no.: 44253

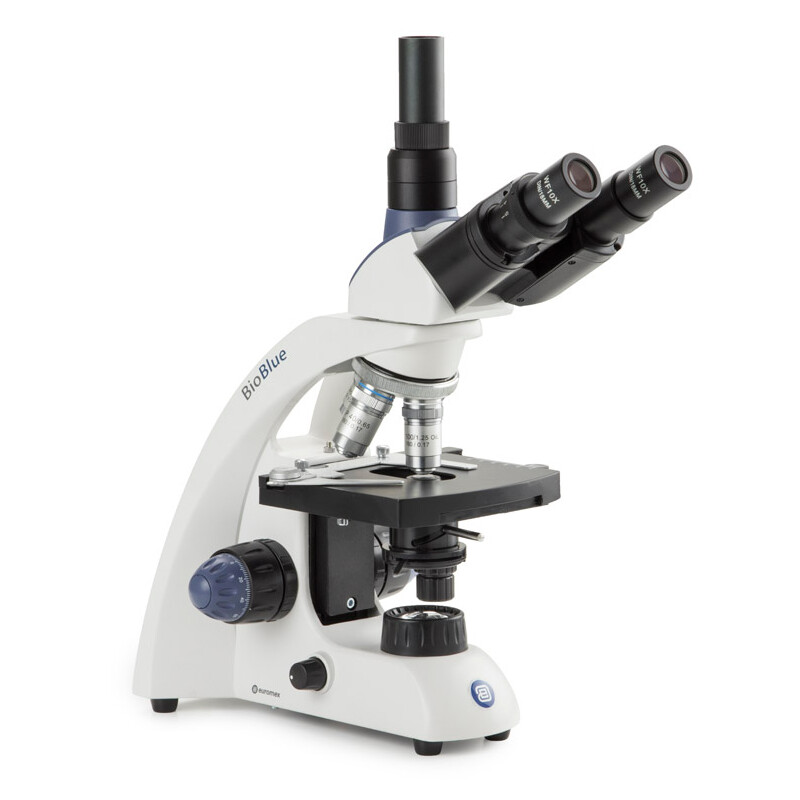

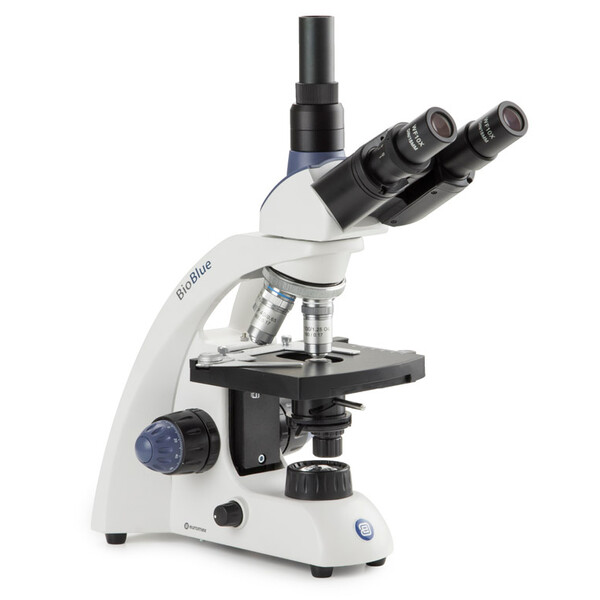

Microscope BioBlue, BB.4253, trino, DIN, semiplan, 40x-1000x, 10x/18, NeoLED, 1W

$ 740.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 3-5 weeks + lead time

No delivery possible before Christmas. Order a voucher coupon!


Product questions?
advice for Microscopy

Product description

More about the series BioBlue...

Euromex BioBlue

These modern microscopes were specifically developed for education with a special attention for ergonomics and quality. The eyepieces are secured and equipped with an adjustable specimen protection.

  • Wide Field eyepieces HWF 10x/18
  • The eyepieces of monocular models are equipped with a pointer

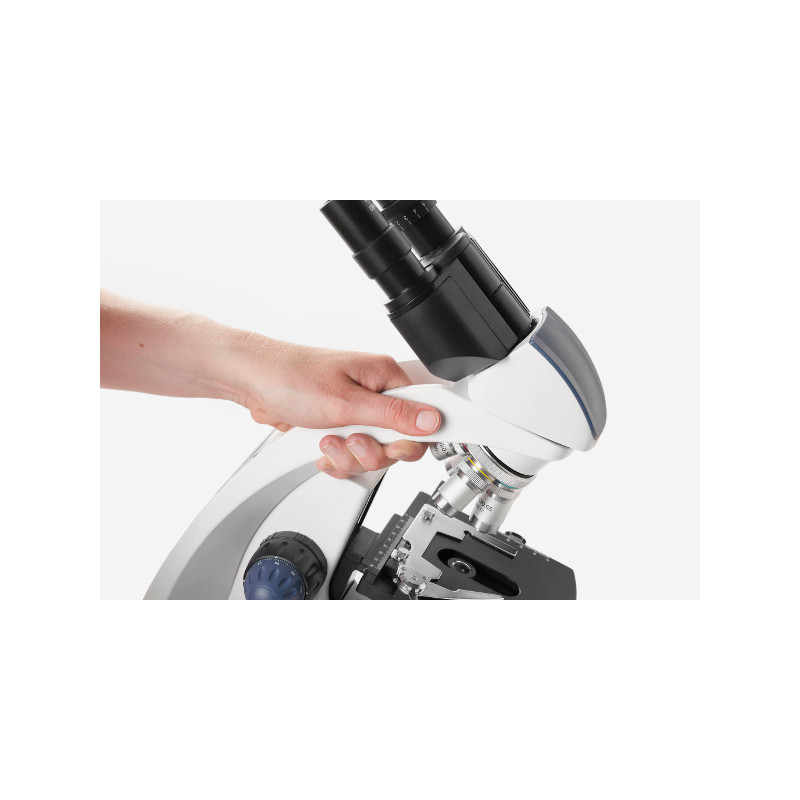

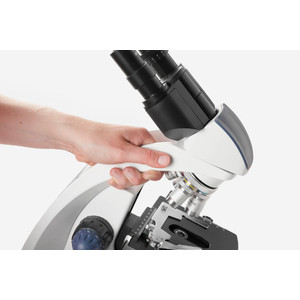

  • Mono- and binocular models, head 360° rotatable
  • Revolving nosepiece for 4 objectives
  • Semi-plan DIN 4x 10x 20x S40x S60x and S100x-oil objectives
  • 120 x 120 mm stage with two object clamps or with integrated X-Y translation stage
  • Adjustable specimen protection mechanism
  • Coaxial coarse and fine adjustment with 0.002 mm graduations
  • Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder
  • Adjustable LED illumination with built-in power supply, rechargeable batteries and charger

Specifications

Optics

Image scale
40-1000 (20 (N.A. 0.40) achromatic, 40 (N.A. 0.65 with slide contact protection))
Condensor
NA 1.25 Abbe condenser with iris diaphragm and filter holder, height-adjustable
Lamp type
LED
Lens type
Semi-Plan Achromatic
Eyepiece
10x/18 (Widefield)
Power supply
85-240V, built-in battery charger, detachable power cord
Magnification
40-1000 (10, 40, 100, 400)
Optical system
DIN (160mm)

Capacity

Brightness control
yes
brightfield
yes

Mechanics

Viewing posture (°)
45° angled eyepiece, 360° rotatable
Type of build
Trinocular
Specimen stage
Cross table (120 x 120 mm)
Focusing
Coarse and fine movement (coaxial, with 0.002 mm division)

Special features

Rechargeable battery operation
yes
Filter holder
yes
Dust cover bag
yes

General

Series
BioBlue

Suitable for

Beginners
yes

Field of application

Education
yes
Medicine
yes

Area of application

University
yes
Veterinary medicine
yes
Secondary school
yes
High School
yes
show more...

Product safety

manufacturer: Euromex Microscopen bv, Papenkamp 20, 6836 BD Arnhem, NL, http://www.euromex.com (neu), http://www.euromex.nl/de
Product safety

Recommended accessories

Microscopy accessories > Eyepieces (6)
Eyepiece

Euromex Eyepiece 5x/18 mm WF AE.5571 (BioBlue)

$ 60.00*
+ Show more accessories in this category: 5
Microscopy accessories > Lenses (6)
Objective

Euromex Objective 20x/0.40, AE.5594, DIN, semiplan, (BioBlue)

$ 96.00*
+ Show more accessories in this category: 5
Microscopy accessories > Cameras (10)
Camera adaptor

Euromex DC.1359 1x Objective 1, C-Mount, f. 1 inch cameras, short shaft

$ 125.00*
+ Show more accessories in this category: 9
Microscopy accessories > Transport cases (3)
Carry case

Euromex Carry case AE.9918, nylon microscope bag (26 x 40 x 17 cm)

$ 36.90*
+ Show more accessories in this category: 2
Microscopy accessories > Contrast methods (7)

Euromex Simple microscope polarization equipment - analyzer for eyepiece, AE.5152 (EcoBlue, BioBlue)

$ 79.00*
+ Show more accessories in this category: 6
Microscopy accessories > Other (3)

Euromex AE.5511 demonstration head (for EcoBlue, BioBlue)

$ 152.00*
+ Show more accessories in this category: 2
Microscopy supplies > Consumables (4)

Bresser Immersion oil, 5ml, refractive index=1.515

$ 10.90*
Baseprice: $ 2,180.00/L
+ Show more accessories in this category: 3
Microscopy supplies > Other (1)

Euromex Cleaning set PB.5275

$ 27.90*

*All prices include VAT plus shipping costs.

show more...
Euromex Microscope BioBlue, BB.4253, trino, DIN, semiplan, 40x-1000x, 10x/18, NeoLED, 1W
Euromex Microscope BioBlue, BB.4253, trino, DIN, semiplan, 40x-1000x, 10x/18, NeoLED, 1W

Customer reviews

There are no customer reviews for this product yet.

Compose your own review

Do you have specific questions about your order or products? Please contact our customer service!

Add your review now

Customers who bought this product also bought...

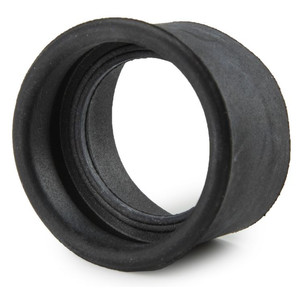

Euromex Eyecup, Ø28 mm AE.5365 (1 pc.) (BioBlue)
