Microscopes > Upright microscopes > Bright field microscopes > Euromex > Oxion > Euromex OX.3030 binocular microscope

Product no.: 44124

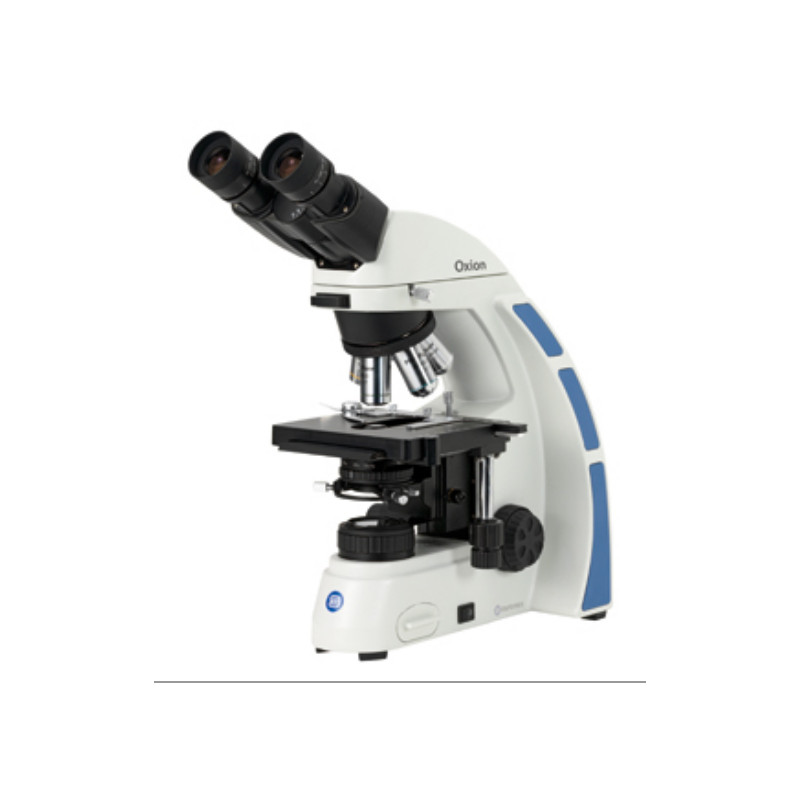

OX.3030 binocular microscope

Name: Euromex OX.3030 binocular microscope
Brand: Euromex
Price: 1920 USD

$ 1,920.00 incl. VAT, plus shipping costs

too expensive?

short-term
ready for shipping in 3-5 weeks + lead time

No delivery possible before christmas
Check alternatives on stock or order a voucher!

add to cart

Product questions?

advice for Microscopy

Product description

More about the series Oxion...

Euromex Oxion series

Thanks to the high resolving power, a 3 Watt transmitted LED illumination, a 100 Watt Mercury fluorescence epi-illumination, multiple phase contrast, dark field set and the optional Apochromatic objectives, these microscopes can be used for all kind of demanding applications as well in fundamental research

Wide Field eyepieces HWF 10x / 22
Semi Plan SMP 4x, 10x, S40x and S100x-oil, IOS, objectives for bright field contrast
Plan PL 4x, 10x, 20x, S40x, S60x and S100x-oil, IOS, objectives for bright field contrast
Plan Phase PLPH 10x, 20x, S40x and S100x-oil, IOS, objectivesfor phase contrast
Plan Semi-Apochromatic PL APO 4x, 10x, 20x, S40x and S100x-oil, IOS, objectives for bright field contrast
Plan Semi-Apochromatic PL APO FLUAREX 4x, 10x, 20x, S40x and S100x-oil, IOS, objectives for fluorescence
Binocular withor without photo port
Height adjustable Abbe condenser N.A. 1.25 with holder for phase sliders
Zernike phase and bright field disc condenser with 4 phase rings
Zernike phase and bright field disc condenser with 3 phase rings + dark field stop
Cardioid dark field Oil-immersion condenser with built-in 5 W LED illumination
Large stage with ball beared XY translation stage with optional heating elements and temperature controller
Adjustable 3 Watt LED illumination
100 Watt mercury vapor lamp for fluorescence
Many fluorphore filter sets available

Models OX.3012 and OX.3015 are equiped with standard Semi Plan IOS objectives for bright field applications
Models OX.3020 to OX.3035 are equiped with standard Plan IOS objectives for bright field applications
Models OX.3040 to OX.3047 are equiped with Plan Phase IOS objectives for phase contrast
Models OX.3050 to OX.3065 are equiped with Plan Semi-Apochromatic IOS objectivesfor bright field applications
Models OX.3070 to OX.3085 are equiped witht Plan Semi-Apochromatic IOS objectives for fluorescence applications
Model OX.3064 is equipped with standard Plan IOS objectives and a cardioid oil-immersion condenser with built-in 5 W LED illumination for dark field applications and living blood analysis

Specifications

Optics

Image scale

40-1000 (20 (N.A. 0.40) achromatic, 40 (N.A. 0.65 with slide contact protection))

Condensor

NA 1.25 Abbe condenser focusable with iris diaphragm, height-adjustable

Lamp type

LED

Lens type

Plan, achromatic (infinity corrected)

Eyepiece

10/22

Power supply

85-240 V

Magnification

40-1000

Lighting

Transmitted light

Optical system

infinity

Capacity

Brightness control

adjustable

Lamp type

LED

brightfield

yes

Mechanics

Working distance (mm)

Type of build

binocular

Viewing posture (°)

Siedentopf head, adjustable by 30° in the vertical axis. For 80/20 trinocular tube. Interpupillary distance adjustable from 50-75 mm.

Focusing

Coarse and fine movement

Specimen stage

Cross table

Special features

Centering stage

Rechargeable battery operation

Built-in digital camera

Filter holder

yes

Luminous field diaphragm

yes

Dust cover bag

yes

General

Colour

white / blue

Weight (g)

10000

Height (mm)

397

Length (mm)

294

Series

Oxion

Field of application

Medicine

yes

Area of application

Veterinary medicine

yes

Gynecology

yes

show less...

Downloads

Booklet (EN)
