Microscopes > Upright microscopes > Bright field microscopes > Euromex > Oxion > Euromex OX.3035 trinocular microscope
Product no.: 44125

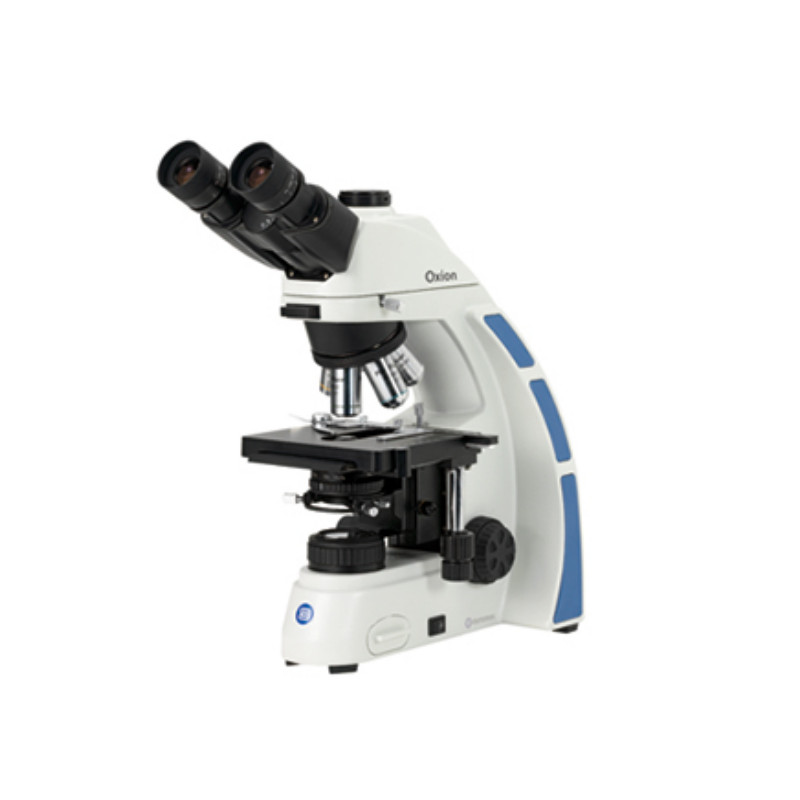

OX.3035 trinocular microscope

$ 1,960.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 3-5 weeks + lead time

No delivery possible before christmas
Check alternatives on stock or order a voucher!


Product questions?
advice for Microscopy

Product description

More about the series Oxion...

Euromex Oxion series

Thanks to the high resolving power, a 3 Watt transmitted LED illumination, a 100 Watt Mercury fluorescence epi-illumination, multiple phase contrast, dark field set and the optional Apochromatic objectives, these microscopes can be used for all kind of demanding applications as well in fundamental research

  • Wide Field eyepieces HWF 10x / 22
  • Semi Plan SMP 4x, 10x, S40x and S100x-oil, IOS, objectives for bright field contrast
  • Plan PL 4x, 10x, 20x, S40x, S60x and S100x-oil, IOS, objectives for bright field contrast
  • Plan Phase PLPH 10x, 20x, S40x and S100x-oil, IOS, objectivesfor phase contrast
  • Plan Semi-Apochromatic PL APO 4x, 10x, 20x, S40x and S100x-oil, IOS, objectives for bright field contrast
  • Plan Semi-Apochromatic PL APO FLUAREX 4x, 10x, 20x, S40x and S100x-oil, IOS, objectives for fluorescence
  • Binocular withor without photo port
  • Height adjustable Abbe condenser N.A. 1.25 with holder for phase sliders
  • Zernike phase and bright field disc condenser with 4 phase rings
  • Zernike phase and bright field disc condenser with 3 phase rings + dark field stop
  • Cardioid dark field Oil-immersion condenser with built-in 5 W LED illumination
  • Large stage with ball beared XY translation stage with optional heating elements and temperature controller
  • Adjustable 3 Watt LED illumination
  • 100 Watt mercury vapor lamp for fluorescence
  • Many fluorphore filter sets available

Models OX.3012 and OX.3015 are equiped with standard Semi Plan IOS objectives for bright field applications
Models OX.3020 to OX.3035 are equiped with standard Plan IOS objectives for bright field applications
Models OX.3040 to OX.3047 are equiped with Plan Phase IOS objectives for phase contrast
Models OX.3050 to OX.3065 are equiped with Plan Semi-Apochromatic IOS objectivesfor bright field applications
Models OX.3070 to OX.3085 are equiped witht Plan Semi-Apochromatic IOS objectives for fluorescence applications
Model OX.3064 is equipped with standard Plan IOS objectives and a cardioid oil-immersion condenser with built-in 5 W LED illumination for dark field applications and living blood analysis

Specifications

Optics

Image scale
40-1000 (20 (N.A. 0.40) achromatic, 40 (N.A. 0.65 with slide contact protection))
Condensor
NA 1.25 Abbe condenser focusable with iris diaphragm, height-adjustable
Lamp type
LED
Eyepiece
10/22
Power supply
85-240 V
Magnification
40-1000
Lighting
Transmitted light
Optical system
infinity

Capacity

Brightness control
adjustable
Lamp type
LED
brightfield
yes

Mechanics

Working distance (mm)
45
Type of build
Trinocular
Viewing posture (°)
Siedentopf head, adjustable by 30° in the vertical axis. For 80/20 trinocular tube. Interpupillary distance adjustable from 50-75 mm.
Focusing
Coarse and fine movement
Specimen stage
Cross table

Special features

Centering stage
-
Rechargeable battery operation
-
Built-in digital camera
-
Filter holder
yes
Luminous field diaphragm
yes
Dust cover bag
yes

General

Colour
white / blue
Weight (g)
10000
Height (mm)
397
Length (mm)
294
Series
Oxion

Field of application

Medicine
yes

Area of application

Veterinary medicine
yes
Gynecology
yes
show more...

Downloads

Booklet (EN)

Product safety

manufacturer: Euromex Microscopen bv, Papenkamp 20, 6836 BD Arnhem, NL, http://www.euromex.com (neu), http://www.euromex.nl/de
