Microscopes > Upright microscopes > Bright field microscopes > Motic > BA-210 > Motic Microscope BA210 bino, infinity, EC- plan, achro, 40x-400x, LED
Product no.: 67729

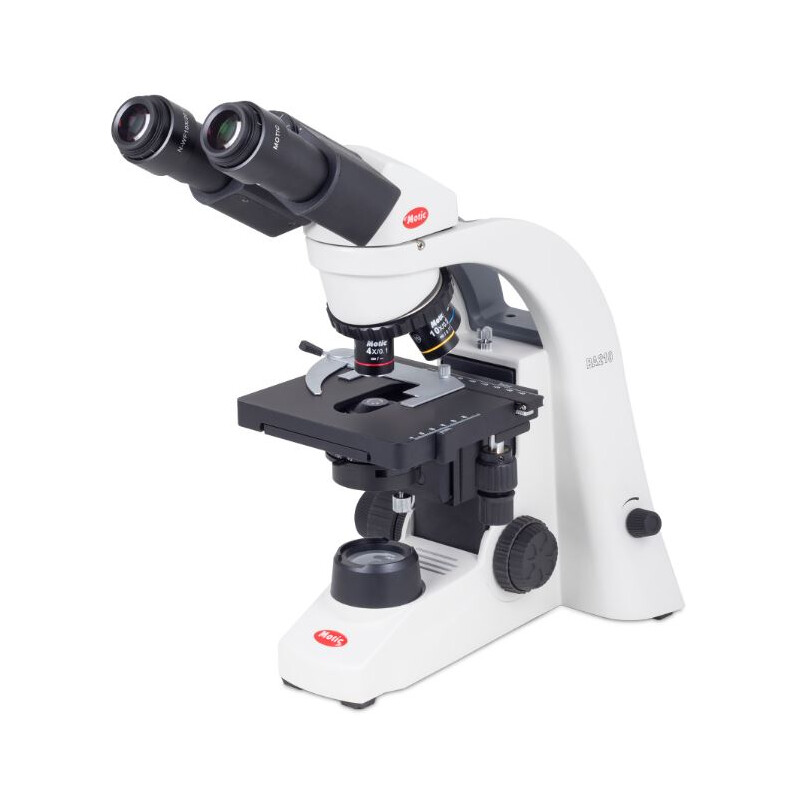

Microscope BA210 bino, infinity, EC- plan, achro, 40x-400x, LED

$ 1,130.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 1-2 weeks + lead time

Right of return up to January 31 2025!


Product questions?
advice for Microscopy

Product description

More about the series BA-210...

  • Optical system Colour Corrected Infinity Optical System (CCIS®)
  • Observation tube Trinocular head, Siedentopf type
  • Inclination 30º inclined, 360º rotating
  • Interpupillary distance 55-75mm
  • Diopter adjustment On both eyepieces, +/- 5 diopter
  • Eyepieces Widefield N-WF10X/20mm with diopter adjustment
  • Nosepiece Reversed quadruple
  • Objective classification CCIS® EC Plan Achromatic, DIN
  • Objective mounting thread W 4/5"x1/36" (RMS standard)
  • Stand type Upright
  • Stage Mechanical stage with built-in low position rackless coaxial stage control and sample holder
  • Stage size 150x150mm
  • Travel range X&Y 80x30mm
  • Condenser Focusable Abbe condenser N.A. 1.25 with slot for contrast sliders
  • Diaphragm Iris diaphragm
  • Focus mechanism Coaxial coarse and fine focusing system with tension adjustment
  • Fine focus precision 2µm
  • Focusing stroke 20mm
  • Upper limit stop Upper limit stop preset but adjustable
  • Filter holder On top of the illuminator with fixing cap
  • Transmitted illumination Quartz halogen 6V/30W with intensity control
  • Illumination interchangeability Quartz halogen 6V/30W or LED 3W
  • Transformer Internal
  • Power supply 100-240V (CE)
  • Accessories included

  1. Dust cover
  2. power cord
  3. Hex key
  4. immersion oil (5ml)
  5. blue filter
  6. spare fuse
  7. cord hanger
  8. thumb screw

  • Dimensions LxWxH 360x220x395mm
  • Net weight 7.2kg

BA210 LED BINOCULAR

  • Observation tube Binocular head, Siedentopf type

Specifications

Optics

Magnification
400
Eyepiece
10
Lens type
Plan, achromatic
Condensor
Abbe condenser (NA 1.25), with slider slot, centering and iris
Lighting
Transmitted light
Lamp type
LED
Optical system
infinity
Objective 1
4x/0.10 wd 15.9 mm
Objective 2
10X/0.25 AA 17.4mm
Objective 3
40X/0.65/S AA 0.5mm

Capacity

Brightness control
yes
Power supply
100-240V, VDE plug (CE) mains adaptor
brightfield
yes

Mechanics

Type of build
binocular
Focusing
Coarse and fine movement
Viewing posture (°)
30° oblique viewing, 360° rotating head
Specimen stage
Cross table (150 x 150 mm, 80x30mm)

Special features

Dust cover bag
yes
Filter holder
yes
Wide-angle eyepiece
yes

General

Colour
grey/black
Weight (g)
7200
Length (mm)
360
Height (mm)
395
Width (mm)
220
Series
BA-210

Field of application

Medicine
yes

Area of application

Interference contrast
-
Metallurgy
-
Veterinary medicine
yes
University
yes

Miscellaneous

supplier product number
1100100403753
show more...

Product safety

manufacturer: Motic Deutschland GmbH, Christian-Kremp-Straße 11, 35578 Wetzlar, DE, http://www.moticeurope.com/
