Microscopes > Upright microscopes > Bright field microscopes > Motic > BA-310E > Motic Microscope BA310E trino, infinity, EC-plan, achro, 40x - 400x, Hal. 30W
Product no.: 67718

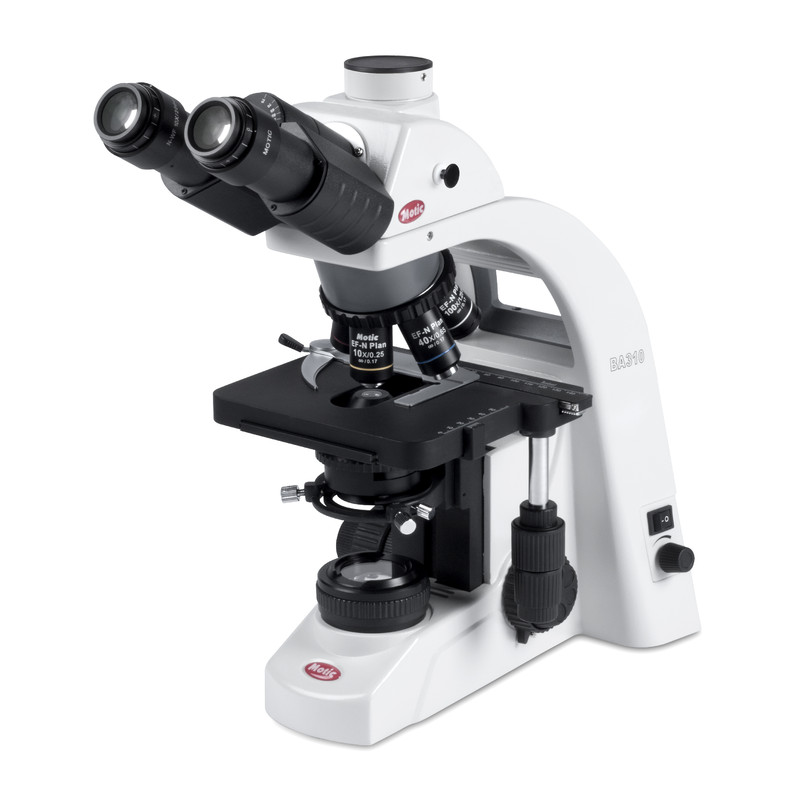

Microscope BA310E trino, infinity, EC-plan, achro, 40x - 400x, Hal. 30W

$ 1,900.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 1-2 weeks + lead time

Delivery not guaranteed until Christmas.
Show alternatives
Right of return up to January 31 2025!


Product questions?
advice for Microscopy

Product description

More about the series BA-310E...

BA310E Trinocular

  • Optical system Colour Corrected Infinity Optical System (CCIS®)
  • Observation tube Trinocular head, Siedentopf type, 360º swiveling
  • Trinocular light split 100:0/20:80 (optional 100:0/0:100)
  • Interpupillary distance 48-75mm
  • Diopter adjustment On both eyepieces, +/- 5 diopter
  • Eyepieces Widefield N-WF10X/20mm with diopter adjustment
  • Nosepiece Reversed quintuple
  • Objective classification CCIS® EC Plan Achromatic, DIN
  • Objectives

-4X/0.10 WD 15.9mm

-10X/0.25 WD 17.4mm

-40X/0.65/S WD 0.5mm

  • Objective mounting thread W 4/5"x1/36" (RMS standard)
  • Stand type Upright

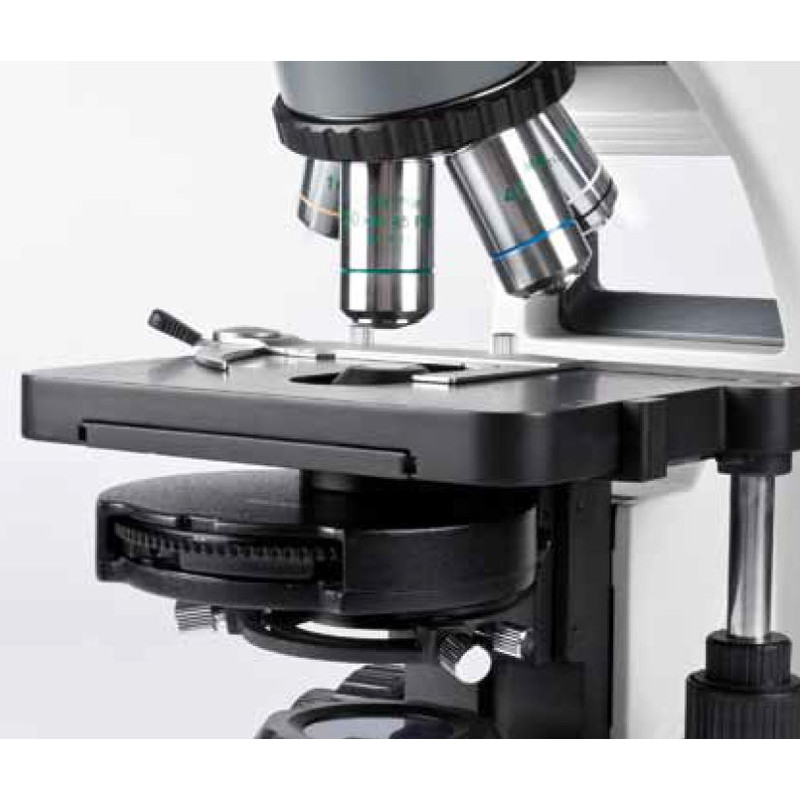

  • Stage Mechanical stage with built-in low position rackless coaxial stage control with tension adjustment and sample holder
  • Stage size 180x170mm
  • Travel range X&Y 80x55mm
  • Condenser Focusable and centerable Abbe condenser N.A. 0.90/1.25 with slot for contrast sliders
  • Diaphragm Iris diaphragm
  • Focus mechanism Coaxial coarse and fine focusing system with tension adjustment
  • Fine focus precision 2µm
  • Focusing stroke 20mm
  • Upper limit stop Upper limit stop preset but adjustable
  • Filter holder On top of the illuminator with fixing cap
  • Transmitted illumination Koehler Quartz halogen 6V/30W with intensity control
  • Illumination interchangeability Quartz halogen 6V/30W or LED 3W
  • Transformer Internal
  • Power supply 100-240V (CE)
  • Accessories included

  1. Dust cover
  2. power cord
  3. Hex key
  4. blue filter
  5. spare fuse
  6. cord hanger
  7. thumb screw

  • Dimensions LxWxH 400x220x400mm
  • Net weight 8.6kg

Specifications

Optics

Eyepiece
10
Lens type
Plan, achromatic
Lamp type
Halogen (6V/30W)
Condensor
Abbe condenser (NA 1.25), with slider slot, centering and iris
Lighting
Transmitted light
Magnification
400x
Optical system
infinity
Objective 1
4X/0.10, AA 15.9mm
Objective 2
10X/0.25 AA 17.4mm
Objective 3
40X/0.65/S AA 0.5mm

Capacity

brightfield
yes

Mechanics

Type of build
Trinocular
Focusing
Coarse and fine movement (0.002mm graduation, with locking function as object protection)
Viewing posture (°)
30° oblique viewing, 360° rotating head
Specimen stage
Cross table (175x140 mm, Translation: 76x50 mm)

Special features

Dust cover bag
yes
Filter holder
yes
Wide-angle eyepiece
yes

General

Colour
grey/black
Series
BA-310E
Length (mm)
400
Height (mm)
400
Width (mm)
220
Weight (g)
8600

Field of application

Medicine
yes

Area of application

Interference contrast
-
Metallurgy
-
Veterinary medicine
yes

Miscellaneous

supplier product number
1100100402966
show more...
