Microscopes > Upright microscopes > Bright field microscopes > Motic > BA-310 > Motic Microscope BA310LED, trino, infinity, plan, achro, 40x-1000x, LED 3W
Product no.: 45002

Microscope BA310LED, trino, infinity, plan, achro, 40x-1000x, LED 3W

$ 2,000.00 incl. VAT, plus shipping costs
too expensive?
short-term
ready for shipping in 1-2 weeks + lead time

Delivery possible before Christmas,
when your order by 04.12.!
Right of return up to January 31 2025!


Product questions?
advice for Microscopy

Product description

More about the series BA-310...

BA310 LED TRINOCULAR

Spezifikation

  • Optical system Colour Corrected Infinity Optical System (CCIS®)
  • Observation tube Trinocular head, Siedentopf type, 360º swiveling
  • Trinocular light split 100:0/20:80 (optional 100:0/0:100)
  • Optical system Colour Corrected Infinity Optical System (CCIS®)
  • Observation tube Trinocular head, Siedentopf type, 360º swiveling
  • Inclination 30º inclined, 360º rotating
  • Trinocular light split 100:0/20:80 (optional 100:0/0:100)
  • Interpupillary distance 48-75mm
  • Diopter adjustment On both eyepieces, +/- 5 diopter
  • Eyepieces Widefield N-WF10X/20mm with diopter adjustment
  • Nosepiece Reversed quintuple
  • Objective classification CCIS® EC Plan Achromatic, DIN
  • Objectives

-4X/0.10 (WD 15.9mm)
-10X/0.25 (WD 17.4mm)
-40X/0.65/S (WD 0.5mm)
-100X/1.25/S-Oil (WD 0.15mm)

  • Objective mounting thread W 4/5"x1/36" (RMS standard)
  • Stand type Upright

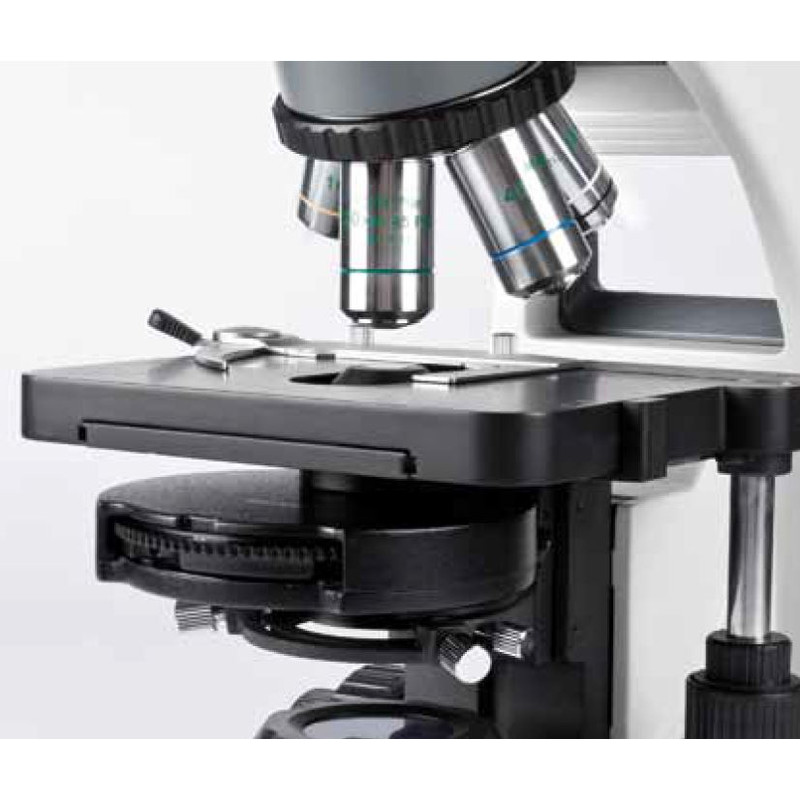

  • Stage Mechanical stage with built-in low position coaxial stage control with tension adjustment
  • and 2-sample holder
  • Stage size 175x140mm
  • Travel range X&Y 76x50mm
  • Condenser Focusable and centerable Abbe condenser N.A. 0.90/1.25 with slot for contrast sliders
  • Diaphragm Iris diaphragm
  • Focus mechanism Coaxial coarse and fine focusing system with tension adjustment
  • Fine focus precision 2μm
  • Focusing stroke 20mm
  • Upper limit stop Upper limit stop preset but adjustable
  • Filter holder On top of the illuminator
  • Transmitted illumination Koehler LED 3W with intensity control
  • Transformer Internal
  • Power supply 100-240V (CE)
  • Accessories included

  1. Dust cover
  2. power cord
  3. Hex key
  4. Immersion oil (5ml)
  5. spare fuse
  6. cord hanger
  7. thumb screw

  • Dimensions LxWxH 400x220x400mm
  • Net weight 8.6kg

Specifications

Optics

Eyepiece
10
Lens type
Plan, achromatic (4 (N.A. 0.10), 10 (N.A. 0.25), 40 (N.A. 0.65 with specimen protection), 100 (N.A. 1.25 oil immersion, with specimen protection))
Lamp type
LED
Condensor
Abbe condenser (NA 1.25), with slider slot, centering and iris
Lighting
Transmitted light
Magnification
1000
Optical system
infinity

Capacity

brightfield
yes

Mechanics

Type of build
Trinocular
Focusing
Coarse and fine movement (0.002mm graduation, with locking function as object protection)
Viewing posture (°)
30° oblique viewing, 360° rotating head
Specimen stage
Cross table (175x140 mm, Translation: 76x50 mm)

Special features

Dust cover bag
yes
Filter holder
yes
Wide-angle eyepiece
yes

General

Width (mm)
200
Colour
grey/black
Weight (g)
8600
Height (mm)
400
Series
BA-310
Length (mm)
400

Field of application

Medicine
yes
Education
yes

Area of application

Interference contrast
-
Metallurgy
-
Veterinary medicine
yes
University
yes

Miscellaneous

supplier product number
1100100401512
