More about the series RedLine100...
The RED-100 Series
The RED-100 Series represents the ideal microscope line for primary, secondary and high school students, it is ideal to explore the world of microscopy. The sample is easily placed by using the “one-touch” sample clips. The gliding stage allows the students to gradually move the specimen in different directions.

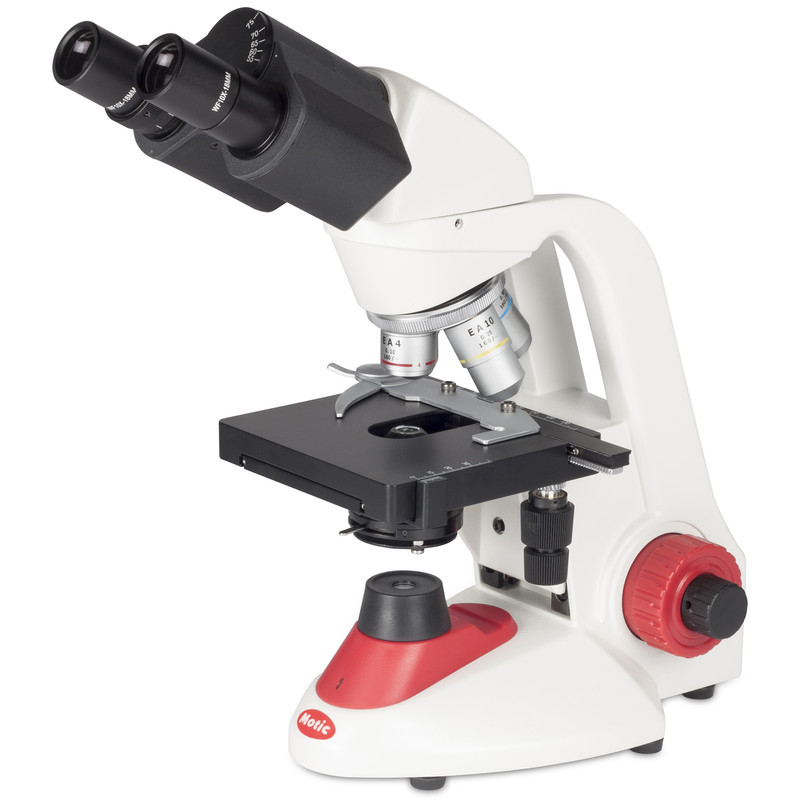

RED132
- Binocular head Siedentopf type, 30º inclined, 360º rotating
- Widefield eyepiece WF10X/18mm with pointer
- Reversed quadruple revolving nosepiece
- Achromatic objectives EA 4X, 10X, 40X S, 100X S-Oil
- Coaxial coarse and fine focusing system with tension adjustment
- Built-in low position coaxial mechanical stage
- Spiral mounted 1.25 N.A. Abbe condenser with iris diaphragm
- Cordless LED illumination 20mA, 3.5V, 70mW with intensity control
