More about the series SWIFT-LINE...
The SWIFT3H Series consists of versatile hybrid microscopes that combine two microscopes in one, making it one of a kind!
By using the compound objectives (4X, 10X, and 40X) you can view microscopic specimens, and by using the 1X macro objective you can observe macroscopic specimens. This is done effortlessly by simply choosing the appropriate objective, adjusting the stage’s position and selecting incident illumination (life specimen cup is also provided as an additional option). If this is not sufficient, you should also know that the tripod base can be dismounted either to attach it on a standard camera tripod, or to take it with you on a field trip. It is cordless, using energy-efficient, rechargeable LED illumination, made of metal and compact so it is ideal for both classroom and field work applications.

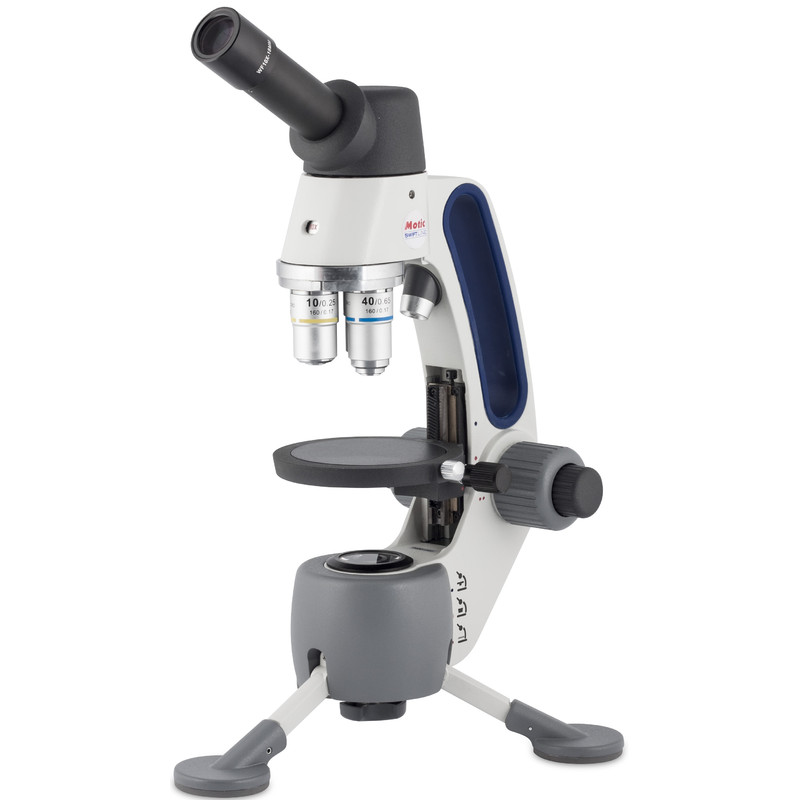

SWIFT3H-M
- Optical System Finite optical system, 160mm
- Observation tube monocular
- Inclination 30° inclined, 360° rotating
- Eyepieces WF10X/18mm
- Nosepiece Quadruple revolving nosepiece with clik stops
- Objective classification Achromatic, DIN, Lockable
- Objectives 1X/0.02 Macro, 4X/0.10, 10X/0.25, 40X/0.65
- Objective mounting thread W 4/5" x 1/36" (RMS standard)
- Stage 3 option interchangeable and adjustable position
- Gliding stage with "one-touch" sample holder for micro observation
- Black and white stage plates

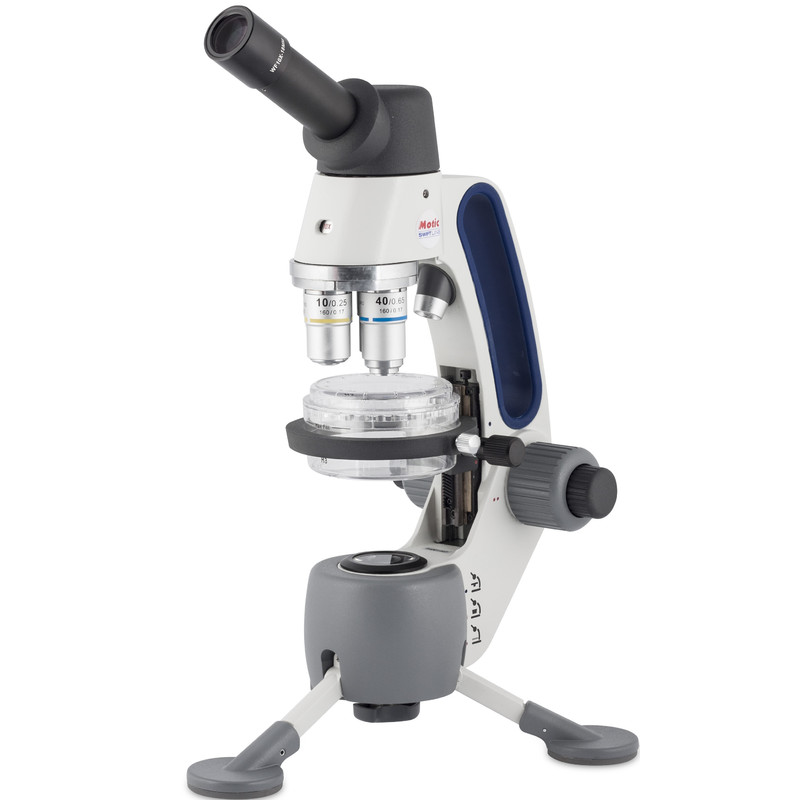

- Live specimen cup with lid for macro observation
- Stage size Diameter 98mm
- Upper limit stop Preset and adjustable
- Condenser Built-in 0,65 N.A. with iris diaphragm with frosted filter
- Focus mechanism Coaxial coarse and fine focusing system
- Fine Focus precision 2 µm minimum increment
- Z-axis movement 15mm
- Illumination Rechargeable incident and transmited LED illumination, 20mA, 3.5V, 70mW with intensity control
- Transformer External
- Power supply Charger 100-240V or rechargeable batteries
- Accessories included Dust cover, charger and batteries
- Dimensions 255x225x366mm
- Weight 3,7KG
