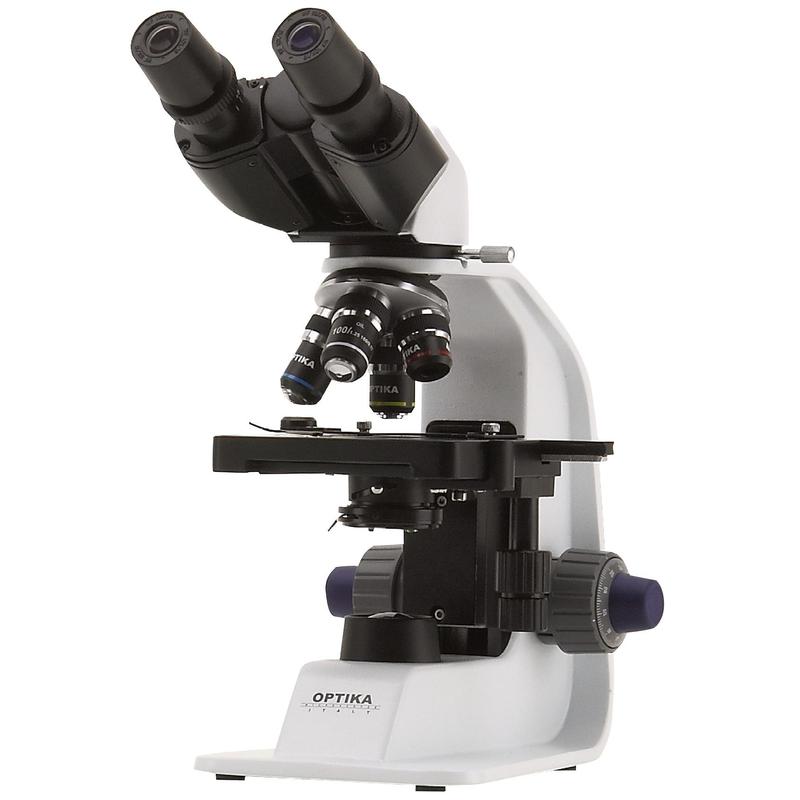

More about the series B-150...
The B-150 series is designed to meet all the needs of an educational laboratory. These microscopes promise a smooth and successful introduction to microscopy.
The relationship between optical quality, mechanical reliability and low price guarantees them a place among the top microscopes in this field.
Specification
- Binocular with double layer stage; objectives 4x, 10x, 40x, 100x
- Illumination Light source type: white LED; light intensity control using a knob on left side of the frame.
- LED power: 1W. Color temperature: 6300K
- LED average lifetime approx.: 50.000h
- External power supply 100/240Vac, 50/60Hz, output: 5Vdc 500mA.
- Observation Modes Brightfield
- Focusing Coaxial coarse and fine focusing mechanism (graduated, 0.002mm) with upper stop, to prevent the contact between objective and specimen. Adjustable tension of coarse focusing knob.
- Stage Double layer with mechanical sliding stage, size 125x116mm, X-Y movement range 76x30. Specimen holder for one slide. Vernier scale on the two axes, accuracy 0,1 mm.
- Nosepiece Quadruple revolving nosepiece, rotation on ball bearings. Head Binocular observation head, inclined 30° and rotatable 360°. Diopter adjustment on left eyepiece. Interpupillary adjustment 48-75 mm.
- Eyepieces Widefield eyepieces WF10X/18 with field number 18mm.
- Objectives Achromatic objectives with mechanical tube lenght 160 mm, made by following objectives:
[objective set depends on the model]Achromatic DIN 4X, A.N. 0.10, W.D. 18 mm Achromatic DIN 10X, A.N. 0.25, W.D. 7 mmAchromatic DIN 40X, A.N. 0.65, W.D. 0,53 mmAchromatic DIN 100X, A.N. 1,25, W.D. 0,13 mm (oil immersion)All objectives are treated with an anti-fungus treatment.
- Condenser Abbe condenser, N.A. 1.2 precentered.
- Dimensions
HEIGHT: 350 mmWIDTH: 170 mmDEPTH: 210 mmWEIGHT: 4 kg
- Accessories Instruction manual and dust cover included
