MOTICAM S SERIES
NEW MOTICAM S SERIES
Motics new sCMOS cameras, designed by German engineers and manufactured by professionals represent an impressive impetus to microscope camera performance. With a member of this product line the door for new application fields opens
wide. The accelerated data readout enables to work on fast phenomena in biology and industry.
MOTIC IMAGES PLUS 3.0 SOFTWARE
Our well-known Motic Images software, always with a cost-free upgrade option is included in all camera packages and enables to view images at maximum quality, capture, edit, measure and report the result... all these features are ready to
work on your PC or laptop.

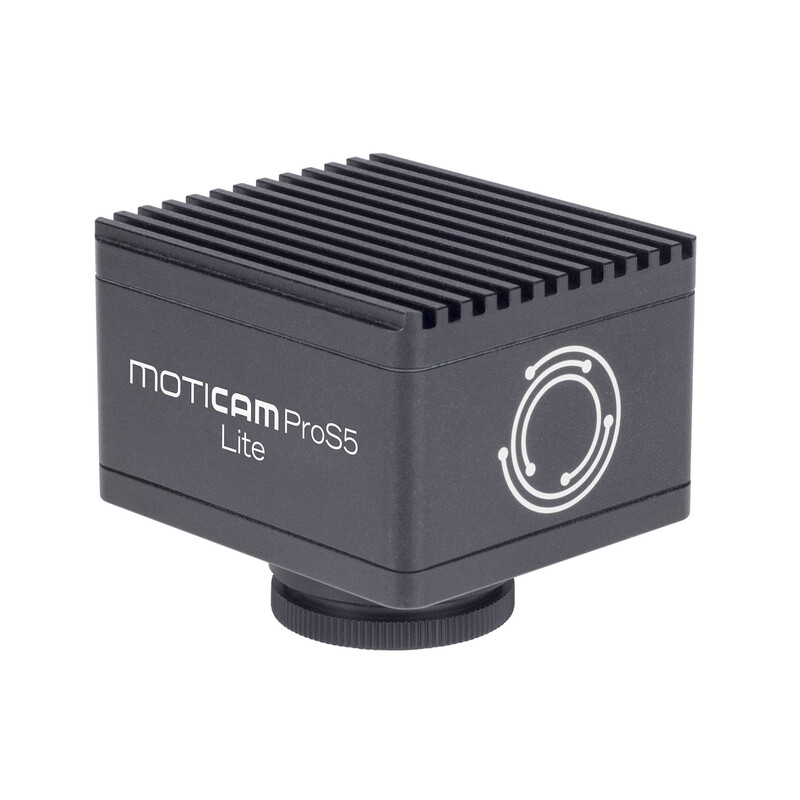

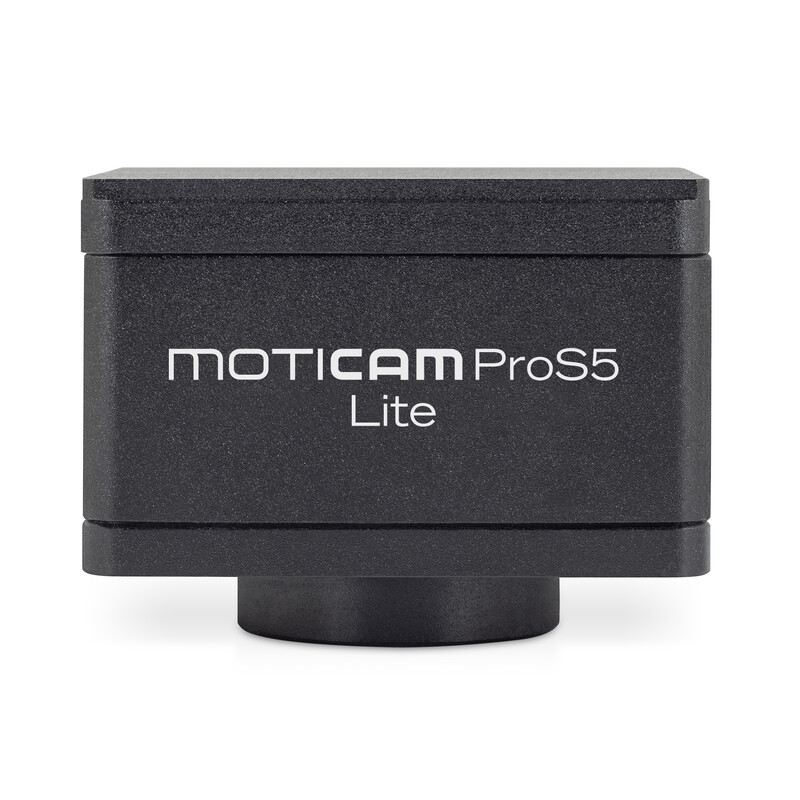

MOTICAM Pro S5 Lite
LOW LIGHT, FAST PHENOMENA
Moticam Pro S5 Lite delivers a 5MP mid-size resolution for all biological/medical fields, showing a premium sensitivity for lowlight situations in Fluorescence and Polarization. The Global shutter data readout helps to accelerate data transfer from fast phenomena, from single-cell organisms to industrial work with lockworks or extrusion processes.
MOTICAM Pro S5 Lite
Sensor type sCMOS
Sensor size 2/3"
Imaging area 11.1mm (Diagonal)
Capture resolution 5MP
Live display mode through USB 2448x2048, 1224x1024 pixels
Pixel size 3.45x3.45μm
Scan mode Progressive
Shutter mode Global Shutter
Data transfer USB 3.1
Max. frames per second (fps*) 2448x2048 @ 37.5fps 1224x1024 @ 88.4fps
Exposure time 14 μsec to 2 sec
Operating temperature From -10 to +60 Degrees Celsius non condensing
Sensitivity 1146mV(G) @ 1/30 sec
Support device TWAIN, SDK and DirectShow Driver
Supported OS Microsoft Windows 7/8/10, MAC OSX10.9, Linux or higher
Minimum computer requirements 2GHz dualcore - RAM memory 2GB - Video memory min. 512 MB
Lens mount C-Mount
Software Motic Images Plus 3.0 for Windows, OSX and Linux
Functions Still image and video capture, live and still image measurement, image adjustments, white balance, automatic & manual exposure, individual objective calibration system.
Power supply 5V (from USB Port)
Package includes CS ring adaptor, USB 3.1 cable, Motic 4-dot calibration slide, Motic Images Plus 3.0 for PC/OSX/Linux
