Microscopy accessories > Cameras > Cameras > Optika > C-HE > Optika Camera C-HB, color, CMOS, 1/2.8 inch, 2.9µmx2.9µm, 60fps, 2MP
Product no.: 75696

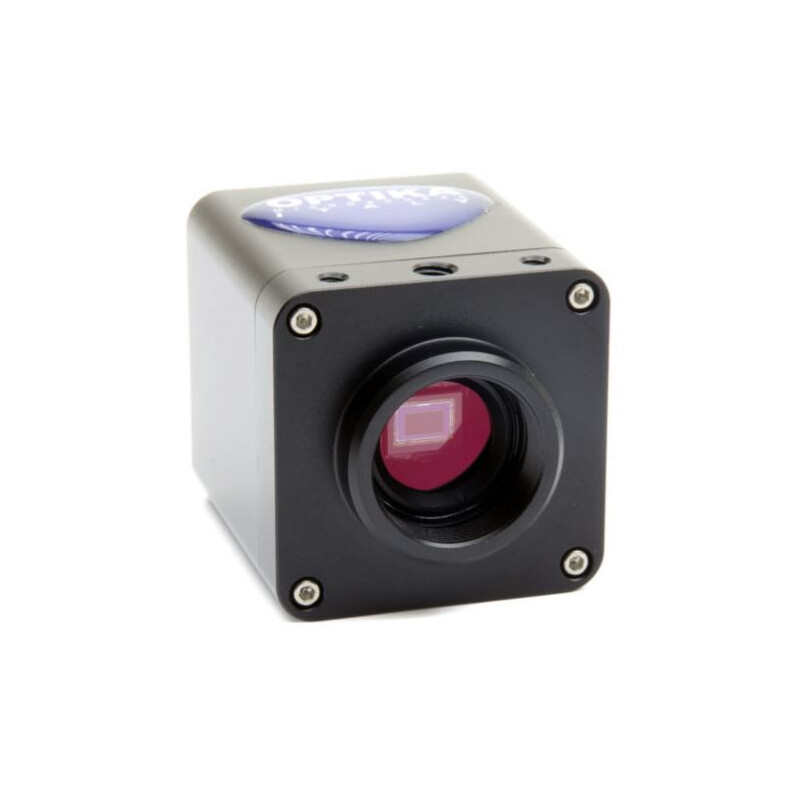

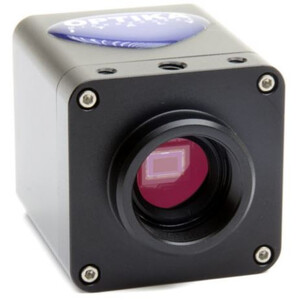

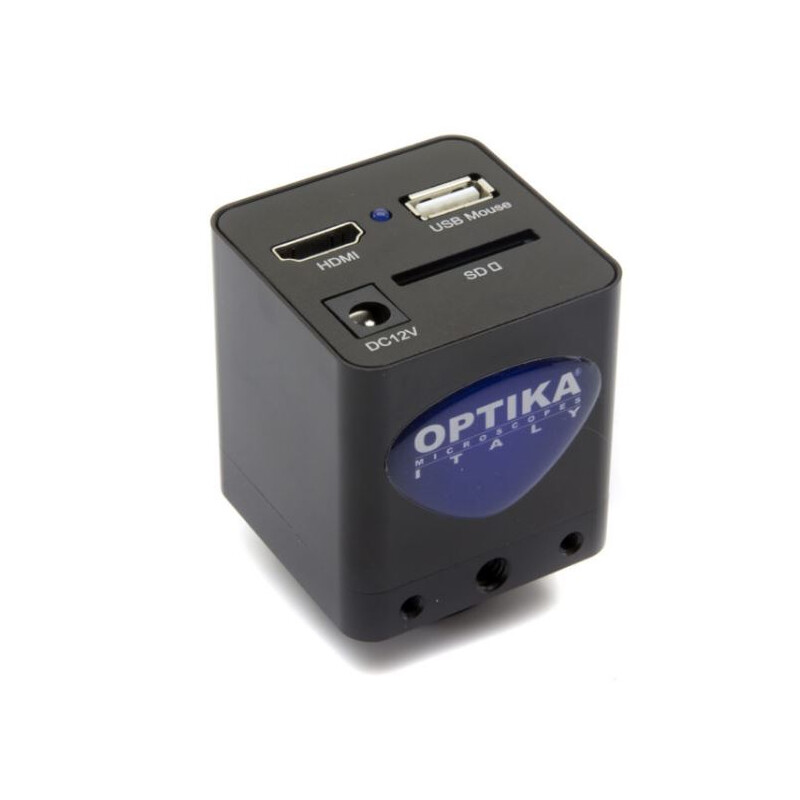

Camera C-HB, color, CMOS, 1/2.8 inch, 2.9µmx2.9µm, 60fps, 2MP

$ 378.00 incl. VAT plus shipping costs
too expensive?
long-term
ready for shipping in 6-10 weeks + lead time

No delivery possible before christmas
Check alternatives on stock or order a voucher!


Product description

C-HB

HB camera, 1080p, 2 MP CMOS, HDMI, multi-plug

Cost-effective, entry-level HD camera with 1080p, 2 MP resolution, CMOS sensor and HDMI connection, recommended for its easy operation, no software installation is required with image capturing on SD card. Allows you to easily take measurements of samples or parts of them with a series of tools via software such as lines, angles and many more.

It also supports excel storage. Connection into the eyepiece tube or to the trinocular tube of any microscope brand via dedicated adapter (to be purchased separately).

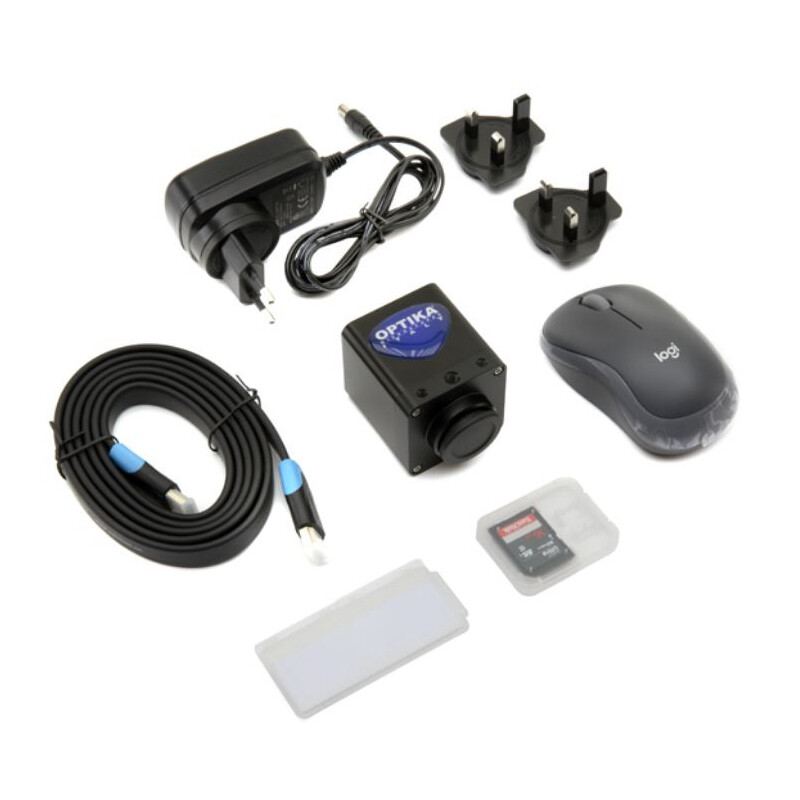

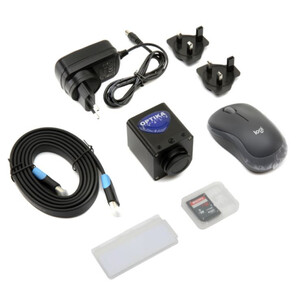

Wireless mouse, SD card and built-in software included.

Highlights

  • Simple operation, built-in software
  • Universal connection to any microscope brand
  • Crisp Full HD images
  • High frame rate
  • Reliable color fidelity
  • C-mount connection (via dedicated adapter, on any microscope)
  • HDMI cable, mouse and SD card included

Specifications

Capacity


Size of chip (mm)
1/2.8"
Megapixel
2
Sensitivity to light (Lux)
1,2
Resolution Photograph (Pixel)
1920x1080
Internal memory (Megabyte)
-
TV output
yes
Interface
HDMI
Video function
yes

Camera


Megapixel
2
Peltier cooling
no
Colour camera
yes
Pixel size
2,9
Image transmission
HDMI
Size of chip (″)
1/2.8
sensor
CMOS
Resolution Photograph (Pixel)
1920x1080
frame rate (fps)
60
Shutter
Rolling Shutter
Max. exposure time (ms)
1000
Min. exposure time (ms)
0.01
Sensitivity (mV/s)
1300mV at 1/30s
adapter required
0.5x
Software
HDMILITE

General


Colour
grey/black
Length (mm)
65
Width (mm)
78
Height (mm)
88
Weight (g)
500
Series
C-HE

Miscellaneous


supplier product number
C-HB

Product safety

manufacturer: Optika S.R.L., Via Rigla, 32 - Italia , 24010 Ponteranica (BG), DE, http://www.optikamicroscopes.com/
Optika Camera C-HB, color, CMOS, 1/2.8 inch, 2.9µmx2.9µm, 60fps, 2MP
Optika Camera C-HB, color, CMOS, 1/2.8 inch, 2.9µmx2.9µm, 60fps, 2MP
Optika Camera C-HB, color, CMOS, 1/2.8 inch, 2.9µmx2.9µm, 60fps, 2MP
