Microscopy accessories > Cameras > Cameras > Optika > C-PGS > Optika Camera P5GS Pro, color, CMOS, 2/3", 5 MP, USB 3.0, global shutter
Product no.: 67823

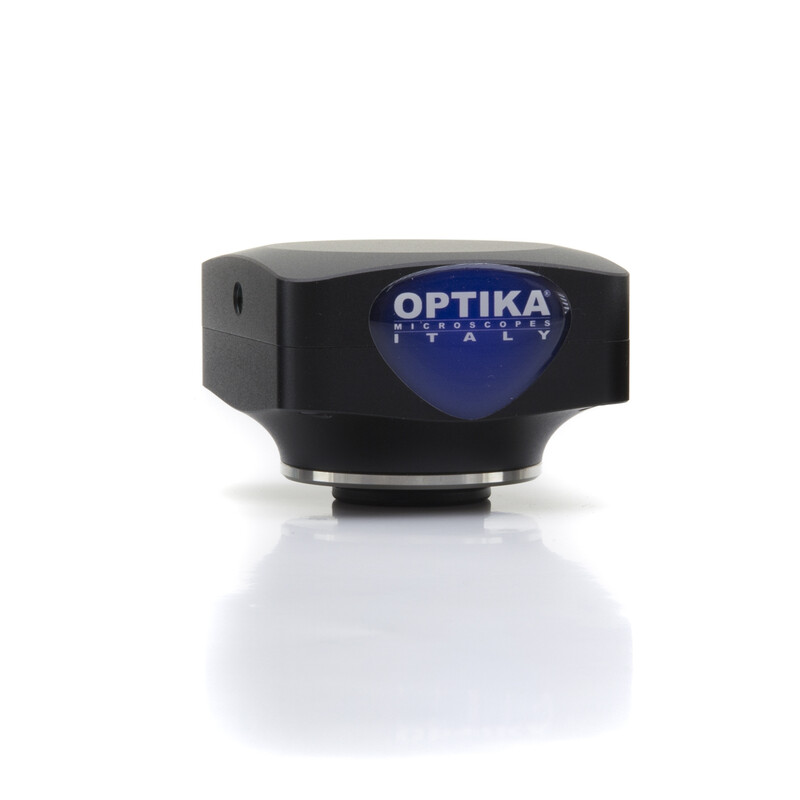

Camera P5GS Pro, color, CMOS, 2/3", 5 MP, USB 3.0, global shutter

RRP: $ 2,240.00 Our price:
$ 2,020.00 incl. VAT plus shipping costs
too expensive?
long-term
ready for shipping in 6-10 weeks + lead time

No delivery possible before christmas
Check alternatives on stock or order a voucher!


Product description

Professional high resolution yet very easy to use camera, with large SONY EXMOR CMOS sensor, USB3.0 connection and Global Shutter mode. Global Shutter mode can be easily thought of as a ‘Snapshot’ exposure mode, perfect for capturing images of moving objects and enabling ‘freeze frame’ capture of fast changing events, exposing each and every pixel simultaneously.

In addition, the generous dynamic range gives a great response to light and dark simultaneously, being recommended for polarizing light applications.

The compact and elegantly designed housing conceals the very latest in camera technology.

Images will be of the highest quality and rich in contrast and detail with the top-class SONY sensors, worldwide recognized, ensuring beautiful true-to-life color and delivering incredibly accurate colors just as you see them.

Ideal to be connected to all the trinocular tube of different brands using the focusable C-Mount adapter (to be purchased separately).

Downloadable, free of charge software (Windows, Mac OS or Linux) is always available to enable the latest updates.

  • Simple operation, driver-free
  • Top-class SONY EXMOR sensor
  • Universal connection to any microscope brand
  • Crisp images
  • Global Shutter technology for “”freeze frame”” capture
  • Generous dynamic range, recommened for polarizing light
  • USB3.0 for impressive high frame rate
  • Crystal-clear images, even for very short exposures
  • Outstanding noise characteristics, even in low lighting conditions
  • Incredibly accurate colors
  • USB cable and calibration slide included
  • Downloadable, free of charge software
  • OPTIKA ProView & LiteView for Windows
  • OPTIKA LiteView for Mac OS or Linux

Specifications

Capacity


Size of chip (mm)
2/3"
Sensitivity to light (Lux)
1146mV at 1/30sec
Resolution Photograph (Pixel)
2448 x 2048
frame rate (fps)
50@1224 x1024

Camera


Megapixel
5
Peltier cooling
no
Colour camera
yes
Pixel size
3,45
Image transmission
USB 3.0
Resolution Photograph (Pixel)
2448 x 2048
Resolution video (Pixel)
2448 x 2048
sensor
CMOS (Sony Exmor)
Size of chip (″)
2/3
frame rate (fps)
35
Shutter
Global Shutter
Min. exposure time (ms)
0.1
Max. exposure time (ms)
15000
Sensitivity (mV/s)
1.146V @ 1/30 s
adapter required
0.65x
Software
LiteView
Supported operating systems
Win 7/8/10 Mac OS Linux

General


Colour
black
Length (mm)
68
Width (mm)
68
Height (mm)
46
Weight (g)
265
Series
C-PGS

Miscellaneous


supplier product number
C-P5GS

Product safety

manufacturer: Optika S.R.L., Via Rigla, 32 - Italia , 24010 Ponteranica (BG), DE, http://www.optikamicroscopes.com/
Optika Camera P5GS Pro, color, CMOS, 2/3", 5 MP, USB 3.0, global shutter
