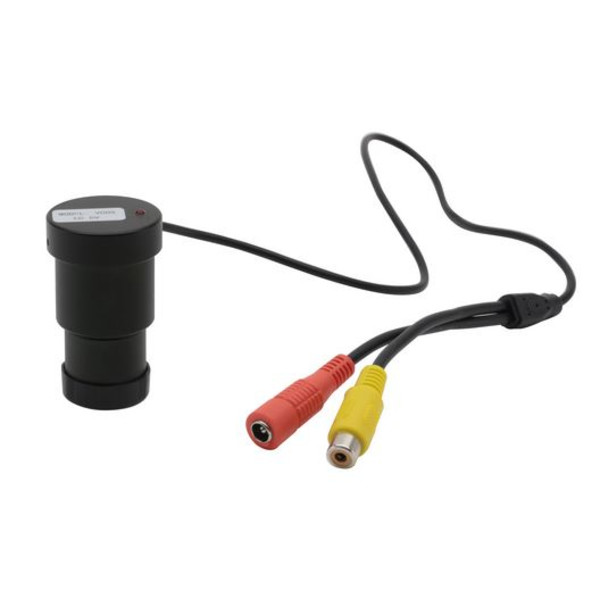

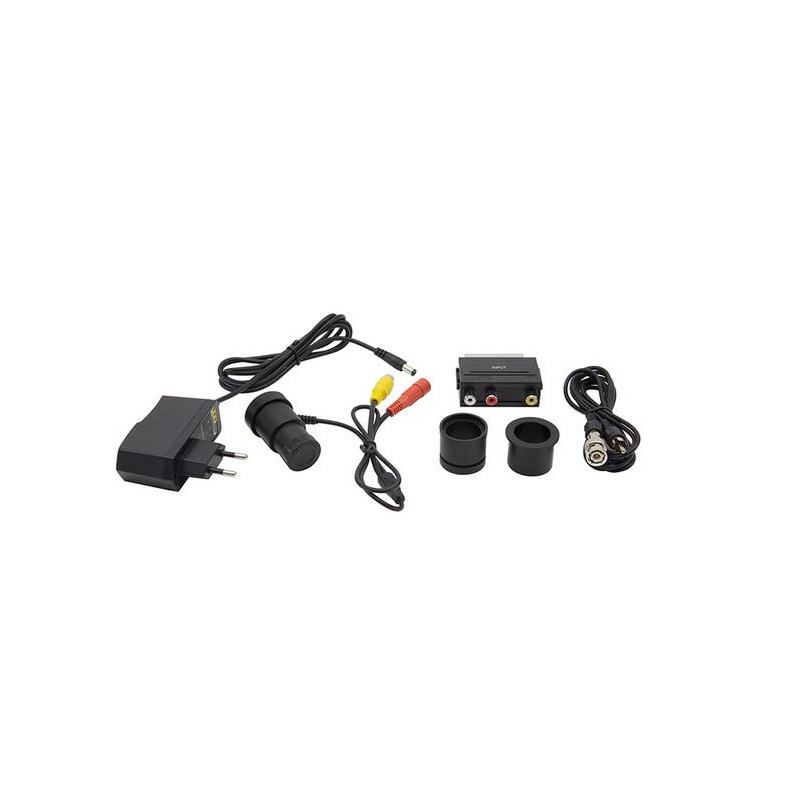

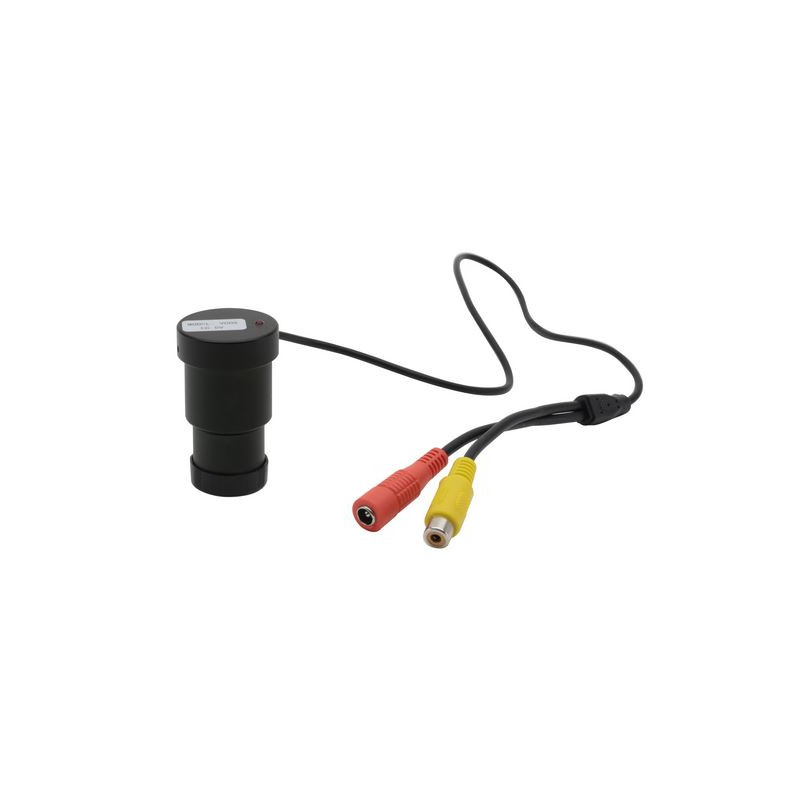

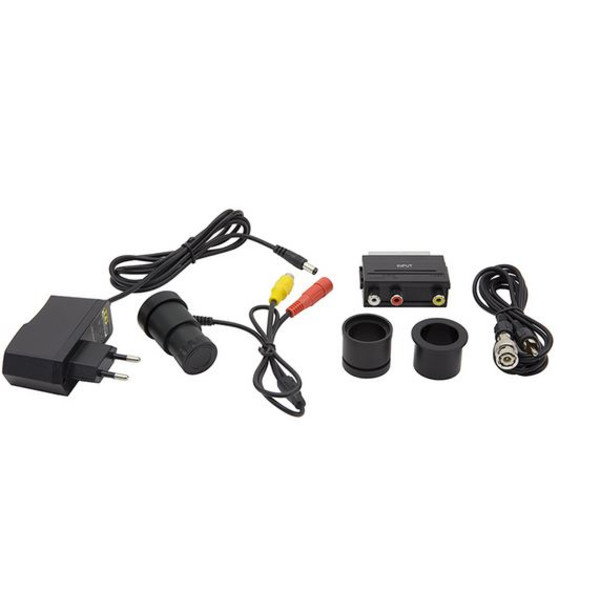

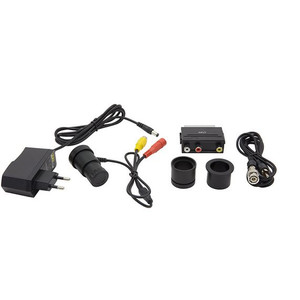

Camera TV Okularkamera, VC-05, color, CCD, 1/3", 420 TV-Lines, PAL

VC-05

• Analog camera resolution: PAL 420 x 582
• Signal output: PAL
• Audio Signal: NO
• Sensor Size: 1\3”
• Sensor technology: CCD
• Image format: 4\3
• Pixel size: 9,6 x 7,5 micron
• Frame rate full resolution: 50 frames\sec
• Frame rate other resolutions NO
• Sensitivity Minimum illumination: 0.08 LUX / F1.2
• Signal / noise: ratio >48 dB
• Dynamic range: 56 dB
• Max Exposure time: 1/60 sec
• ADC conversion: No (Analog conversion)
• Color Depth: No (Analog conversion)
• ON board Memory : NO
• External Memory Card: NO
• External camera power: 12V DC power supply
• Cooling system: NO
• External Cooling power: NO
• On camera case: IR Filter 700 nm
• Automatic White Balance: Auto
• Automatic Gain Control: Auto
• Automatic Back light control: Auto
• Exposure control: Auto
• C-Mount connection: NO
• CS-Mount connection: NO
