Microscopes > Upright microscopes > Dark field microscopes > Euromex > iScope > Euromex Microscope iScope IS.1153-PLi/DFI, DF, trino, infinity, plan, 4x-100x, 100x iris, IOS super contrast oil, spring, LED, 3W
Product no.: 51749

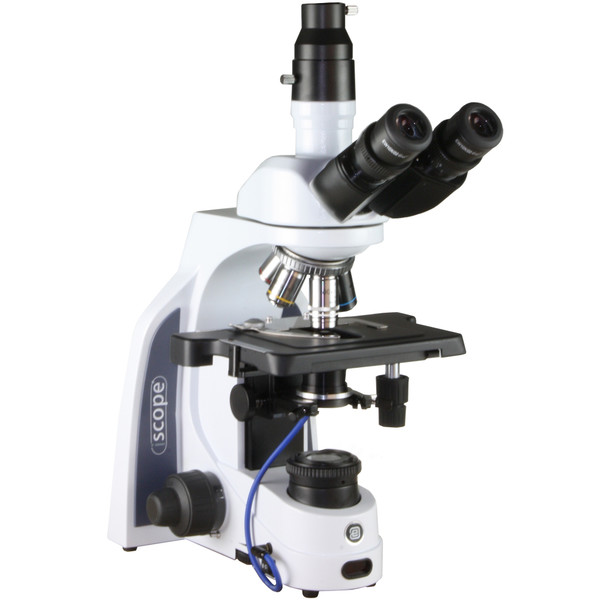

Microscope iScope IS.1153-PLi/DFI, DF, trino, infinity, plan, 4x-100x, 100x iris, IOS super contrast oil, spring, LED, 3W

$ 2,890.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 3-5 weeks + lead time

No delivery possible before christmas
Check alternatives on stock or order a voucher!


Product description

More about the series iScope...

Euromex introduces a complete new series of iScope® microscopes. These state-of-the-art instruments have been specifically designed for Life Sciences and Biomedical Sciences.

The iScope® is available in different configurations. Thanks to the high resolving power of the objectives and the 3W NeoLed transmitted LED illumination, these microscopes can be used for all kind of demanding applications as well for fundamental research. Please find below a summary of the specifications

  • EWF10x/22 mm or EWF10x/20mm eyepieces
  • Binocular and trinocular heads
  • Quintuple nosepiece
  • E-Plan EPL 4x/0.10, 10x/0.25, 20x/0.40, S40x/0.65, S100x/1.25 oil-immersion DIN objectives
  • E-Plan EPL IOS 4x/0.10, 10x/0.25, 20x/0.40, S40x/0.65, S100x/1.25 oil-immersion IOS objectives
  • Plan PL IOS 4x/0.10, 10x/0.25, 20x/0.40, S40x/0.65, S100x/1.25 oil-immersion IOS objectives
  • 140 mm x 160 mm stage equipped with integrated 79 x 52 mm mechanical stage
  • 216 mm x 150 mm rackless stage equipped with integrated 79 x 52 mm mechanical stage
  • Height adjustable Abbe condenser N.A. 1.25
  • Coarse and fine height adjustment
  • Diascopic intensity adjustable 3W NeoLED™ illumination with internal 85V-240V power supply
  • iCare sensor for energy saving
  • CSS - Cable Storage System

  • Models IS.1152-EPL and IS.1153-EPL are supplied with E-Plan objectives for bright field applications
  • Models IS.1152-EPLi and IS.1153-EPLi are supplied with E-Plan IOS objectives for bright field applications
  • Models IS.1152-PLi and IS.1153-PLi are supplied with Plan IOS objectives for bright field applications

The iScope is also available in a multi-head configuration

Specifications

Optics


Magnification
40 - 1000
Lighting
Transmitted light
Lamp type
LED
infinity corrected
yes
Eyepiece
EWF 10x / 22 mm (Ø 30mm)
Number of objectives
4
Colour correction
achromatic
Field curvature
Plan
Objective 1
4x / 0.10 (Plan PLi)
Objective 2
10x / 0.25 (Plan PLi)
Objective 3
S40x / 0.65 (Plan PLi)
Objective 4
S100x / 1.25 IOS Superkontrast
Suspension
yes
Immersion lens
yes
Condensor
Carioidcondenser with 5W LED

Capacity


Dark field
yes
brightfield
yes
Contrast methods
Dark field

Mechanics


Type of build
Trinocular
Focusing
Coarse and fine movement (200 x 1µm)
Revolver
5
Specimen stage
Cross table (216 x 150 mm, (x/y 79 x 52mm) rackless)

General


Series
iScope
Weight (g)
9000
Width (mm)
210
Length (mm)
255
Height (mm)
407

Contrast methods


Dark field
yes

Field of application


Medicine
yes
Education
yes

Area of application


Naturopathy
yes
University
yes

Miscellaneous


supplier product number
IS.1153-PLi/DF

Product safety

manufacturer: Euromex Microscopen bv, Papenkamp 20, 6836 BD Arnhem, NL, http://www.euromex.com (neu), http://www.euromex.nl/de
