Microscopes > Upright microscopes > Fluorescence microscopes > Euromex > bScope > Euromex microscope BS.3153-PLFi, trino, 40x-1000x

Product no.: 77815

microscope BS.3153-PLFi, trino, 40x-1000x

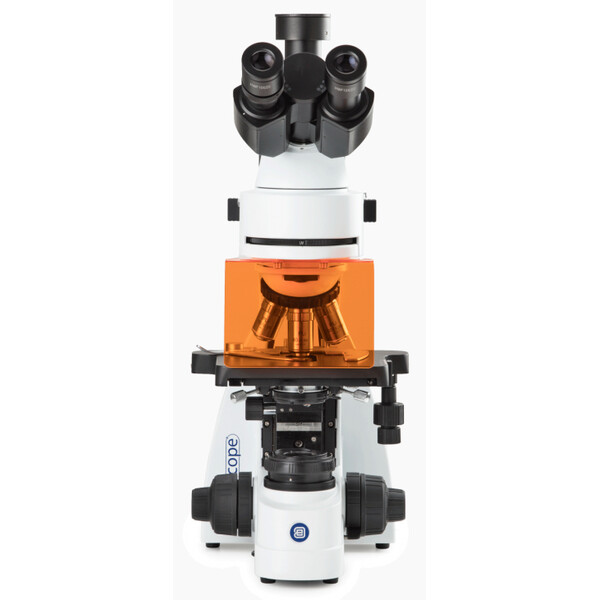

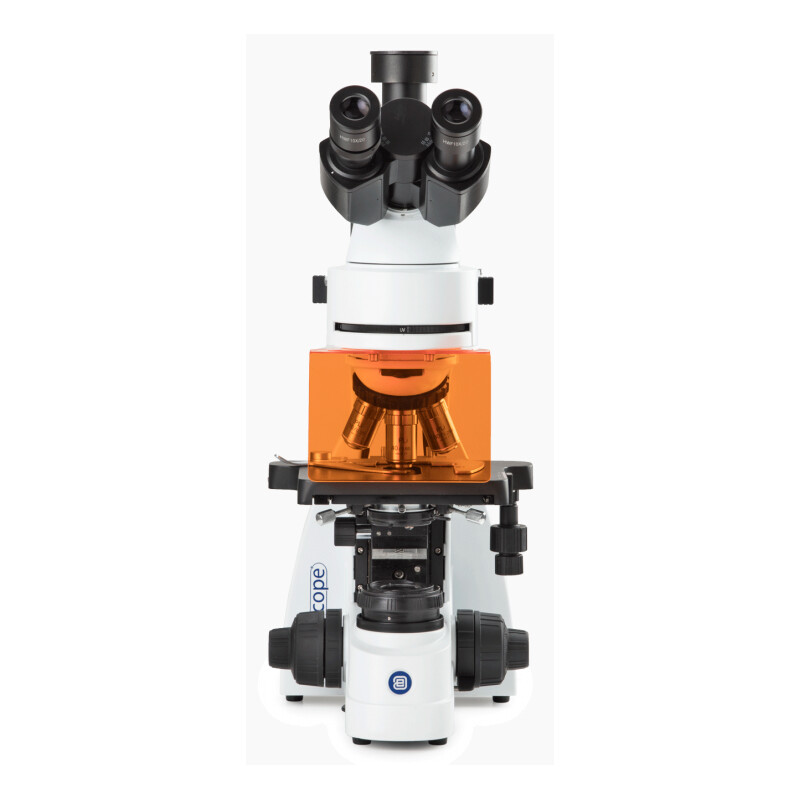

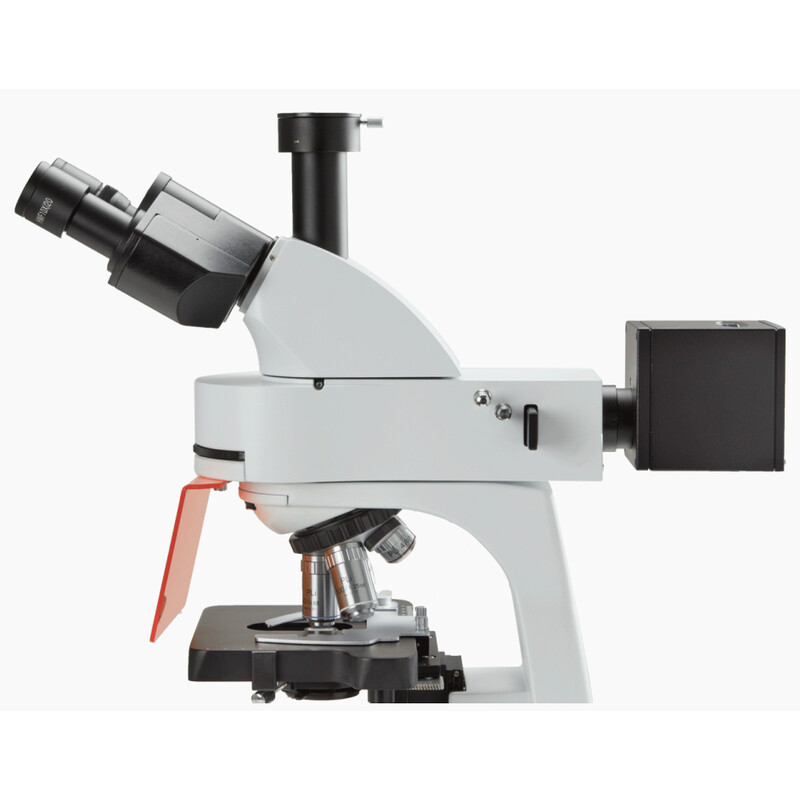

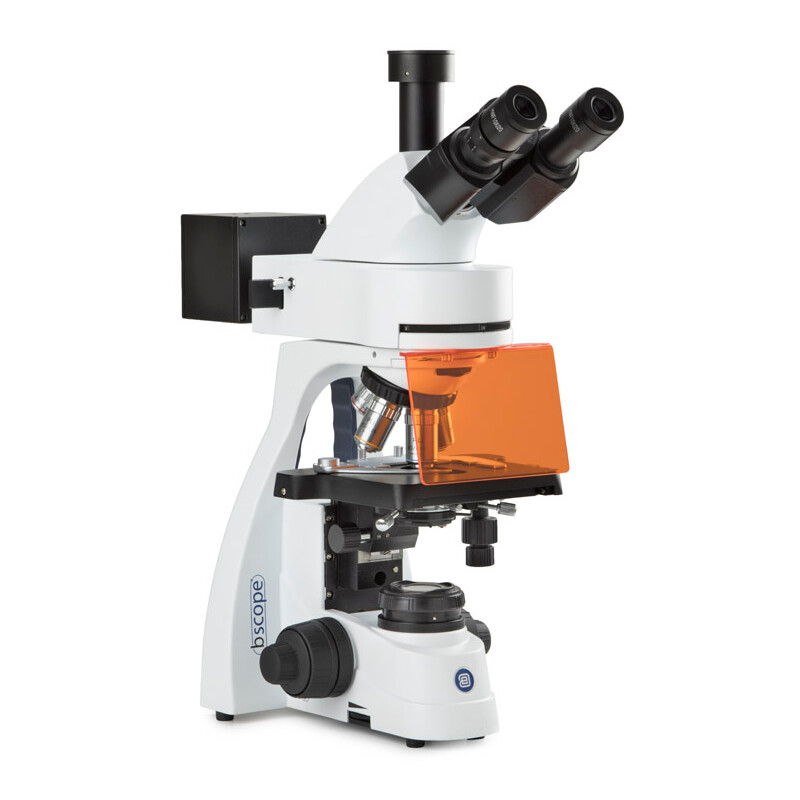

Name: Euromex microscope BS.3153-PLFi, trino, 40x-1000x
Brand: Euromex
Price: 5700 USD

$ 5,700.00 incl. VAT, plus shipping costs

too expensive?

short-term
ready for shipping in 3-5 weeks + lead time

add to cart

Product questions?

advice for Microscopy

Product description Specifications Downloads Recommended accessories Customer reviews (0)

Product description

More about the series bScope...

Specifications

Optics

Image scale

This refers to the magnification factor of a single microscope lens. A lens with the number 40 is referred to as a scale of 1:40 or simply a factor of 40 times. If you multiply the lens factor by the eyepiece factor, you get the magnification.

Click to read more...

4-100

Number of objectives

Lighting

Light source

The light source illuminates the object and is available in various forms.

Click to read more...

Incident light and transmitted light

The object can be illuminated from above as well as from below.

Click to read more...

Field curvature

Plan

Colour correction

achromatic

Suspension

yes

Immersion lens

yes

Condensor

A condenser serves to ensure a uniform homogeneous illumination of the object. The Abbe condenser consists of a lens system and an adjustable diaphragm. With it, you can set the optimal contrast for the object.

Click to read more...

Abbe N.A.1.25

Lamp type

LED

Objective 1

Plan Fluarex 4x / 0.10 IOS

Objective 2

Plan Fluarex 10x / 0.25 IOS

Objective 3

Plan Fluarex S40x / 0.65 IOS

Objective 4

Plan Fluarex S100x / 0.90 IOS

Eyepiece

The upper element of a microscope. An eyepiece consists of several lenses and is used for visually observing the object. In microscopy, the magnification power is expressed as -x.

Click to read more...

WF 10x / 22 mm (Ø 30mm)

infinity corrected

yes

Magnification

Specifies how much larger an object appears compared to when viewed with the naked eye.

Click to read more...

40-1000

Capacity

Brightness control

yes

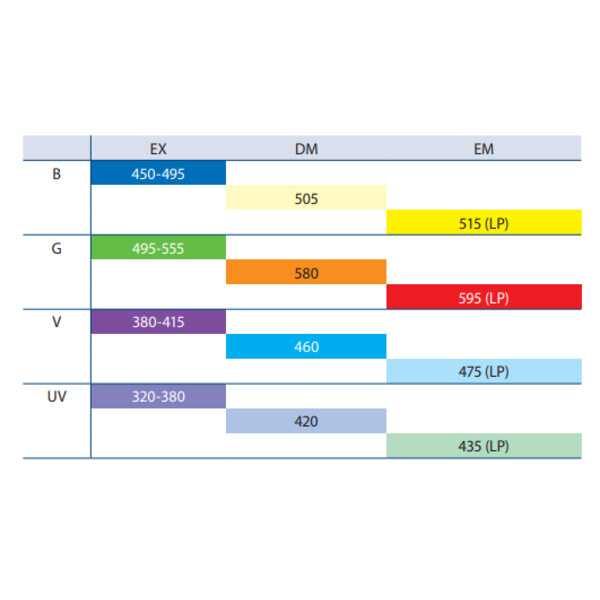

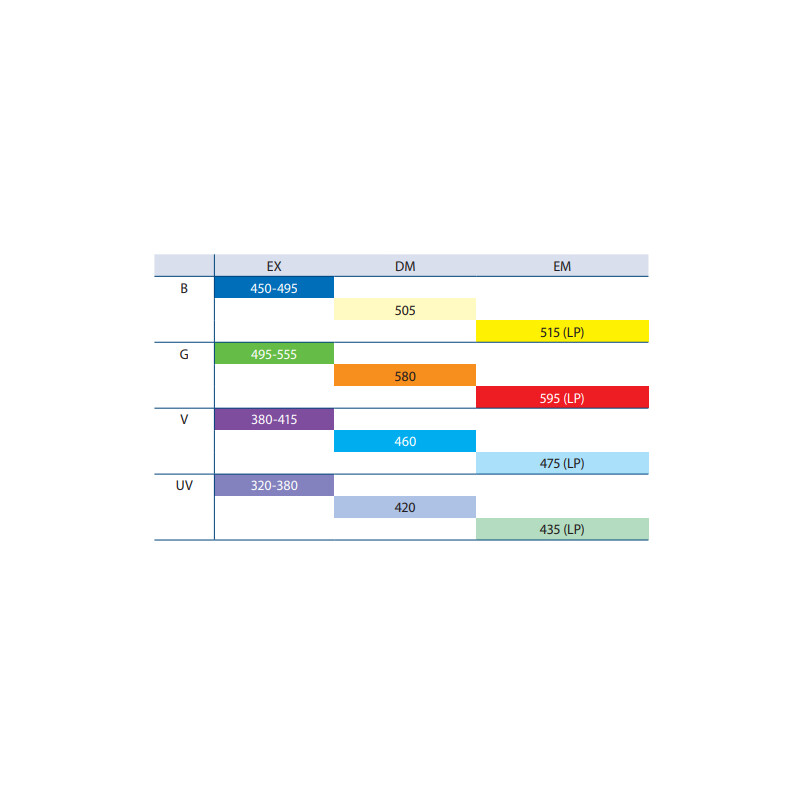

Fluorescence

yes

brightfield

yes

Contrast methods

Fluorescence

Mechanics

Type of build

Trinocular

Viewing posture (°)

Viewing position

Describes the position in which you look through the eyepiece, for example at 45° or straight.

Click to read more...

30° angled eyepiece

Specimen stage

The object or specimen slide is positioned and centred on this.

Click to read more...

Cross table

The cross table has a clamping device for the specimen holder. The object can be precisely centred over two axes with fine adjustments.

Click to read more...

Revolver

Focusing

A focusing wheel is used to focus the microscope on the particular object.

Click to read more...

Coarse and fine movement (2 µm precision, 20mm)

General

Weight (g)

11300

Height (mm)

505

Width (mm)

195

Length (mm)

450

Series

bScope

Contrast methods

Fluorescence

yes

Field of application

Medicine

yes

Biology

yes

Area of application

Veterinary medicine

yes

Central laboratories

yes

Botany

yes

Microbiology

yes

Cytology & Pathology

yes

Marine Biology

yes

Miscellaneous

supplier product number

BS.3153-PLFi

show less...
