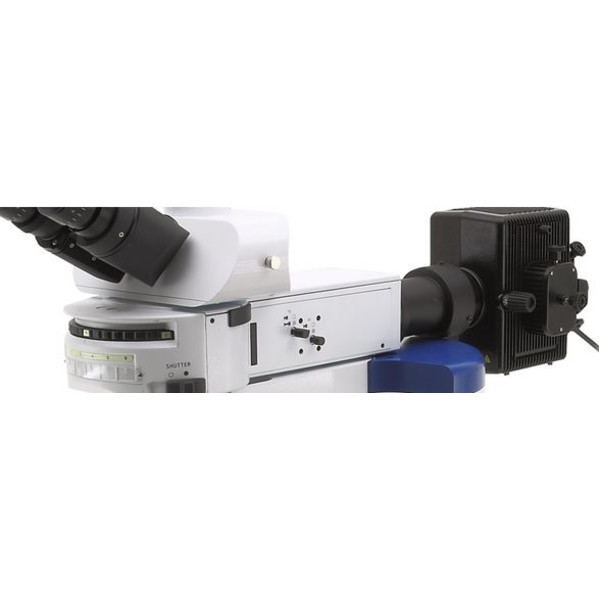

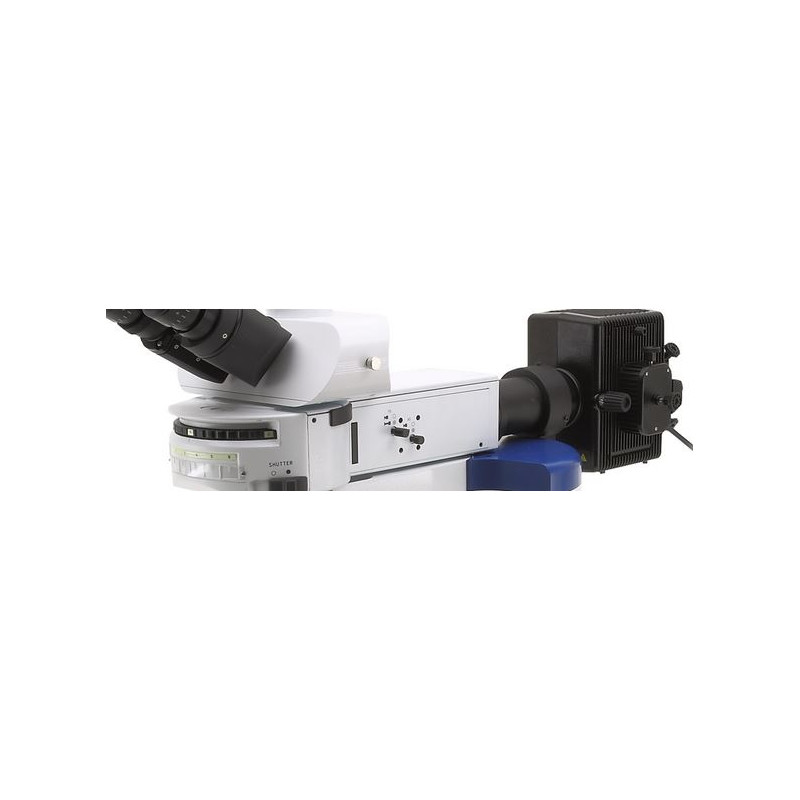

M-1032 fluorescence microscopy module, 6-position HBO blue, green filter (FITC & TRITC)
Model: Fluorescence attachment with mercury lamp
Description: Fluorescence with 6-position filterwheel and HBO mercury lamp
Source: HBO mercury vapour lamp. Power: 100W Lifetime: about 300h Knobs for lamp and rear mirror centering.
Filter Set: 6 positions fluorescence filter holder:
Standard mounted filtersets:
- B: EX 460-490, DM 500, EM 510LP;
- G: EX 510-550, DM 570, EM 590LP;
Optional filtersets:
- UV: EX: 330-385 , DM 400 , EM 420LP;
- V: EX 400-410, DM 455, EM 455LP.
Custom filtersets available on request.
Diaphgrams: Aperture and field diaphgrams
Power supply Included.
Voltage: 100/240Vac, 50/60Hz Fuse: T3,15A 250V
Max power required: 130W
Dimensions 620 mm overall length
