Model: IOS Semi-APO FLUO E-PLAN
Description: Objectives for brightfield, darkfield and epifluorescence observation
- Magnification / Numerical Aperture
• 4X / 0.13 (M-1060)
• 10X / 0.30 (M-1061)
• 20X / 0.50 (M-1062)

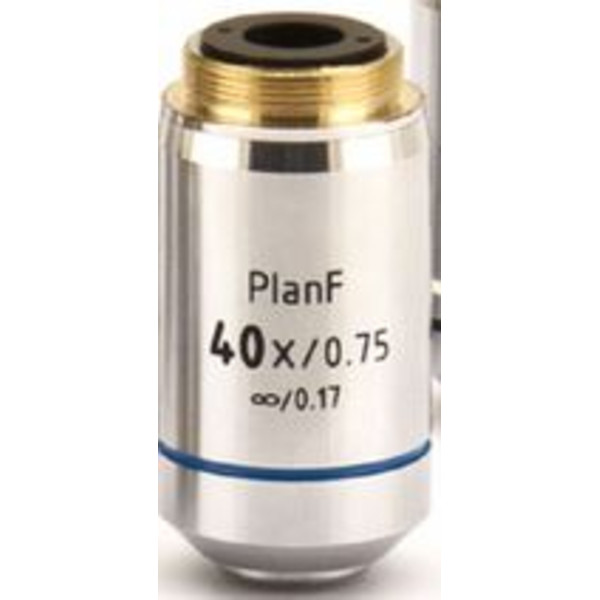

• 40X / 0.75 (M-1063)
• 100X / 1.30 (oil immersion) (M-1064)
- Optical Correction Semi-Apo Fluo E-Plan.
- Fluorite aberration correction
- flat field correction
- semi-apochromatic spherical and chromatic corrections.
- Mechanical tube length IOS (infinity-corrected tube length)
- Cover Glass Thickness 0.17 mm
- Working Distance • 4X W.D. 4.7 mm
• 10X W.D. 4.1 mm
• 20X W.D. 1.45 mm
• 40X W.D. 0.50 mm
• 100X W.D. 0.08 mm
- Screw Thread RMS Standard
- Parfocal Distance 45 mm
