Microscopes > Upright microscopes > Bright field microscopes > Motic > Panthera > Motic Mikroskop Panthera TEC MAT BF (6
Product no.: 65884

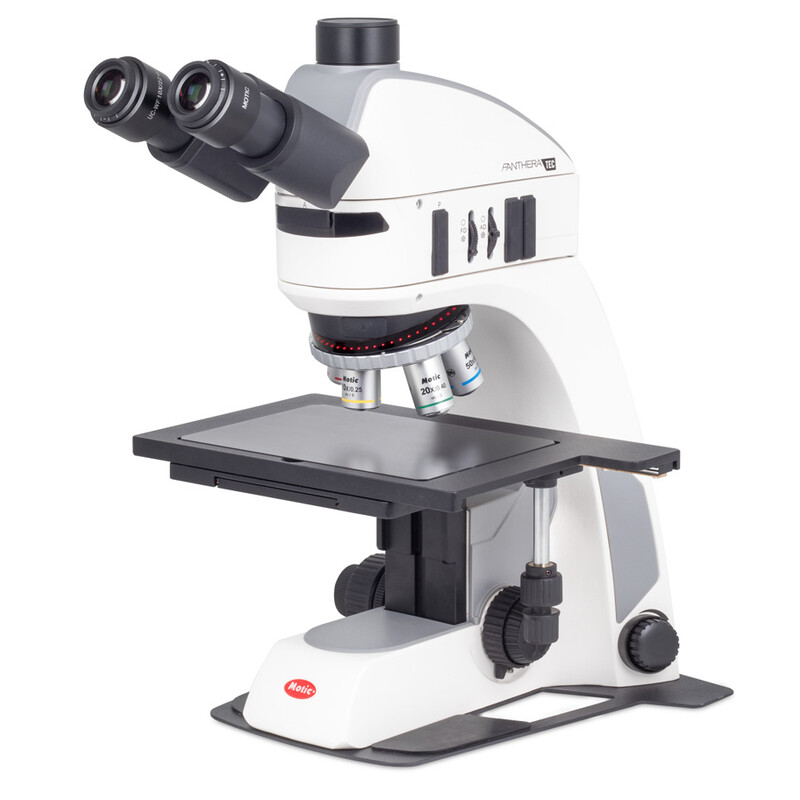

Mikroskop Panthera TEC MAT BF (6

$ 4,926.05 incl. VAT, plus shipping costs
too expensive?
long-term
Product not available anymore + lead time

Specifications

Optics


Magnification
1000

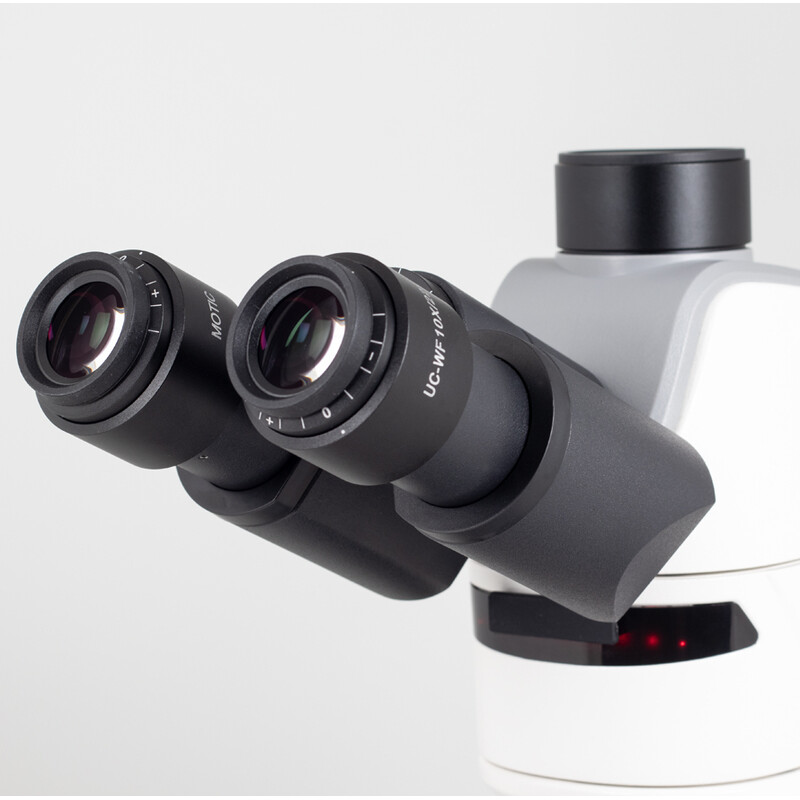

Eyepiece
10 (UC-WF 10x/22mm)
Lens type
Plan, achromatic (CCIS)
Condensor
Abbe condenser (NA 1.25), with slider slot, centering and iris
Lighting
Transmitted light
Lamp type
Halogen (Interchangeable halogen and LED lighting)
Optical system
infinity
Objective 1
4x/0.10 w.d. 30.5 mm
Objective 2
10x/0.25 w.d.17.4 mm
Objective 3
40x/0.65/S w.d. 0.6 mm
Objective 4
100x/1.25/S-Oil w.d. 0.16mm

Capacity


Brightness control
yes
Power supply
100-240V, VDE plug (CE) mains adaptor
brightfield
yes
Polarization
optional
Fluorescence
optional
Dark field
optional
Phase contrast
optional

Mechanics


Type of build
Trinocular
Focusing
Coarse and fine movement
Specimen stage
Cross table (185 x 145 mm)

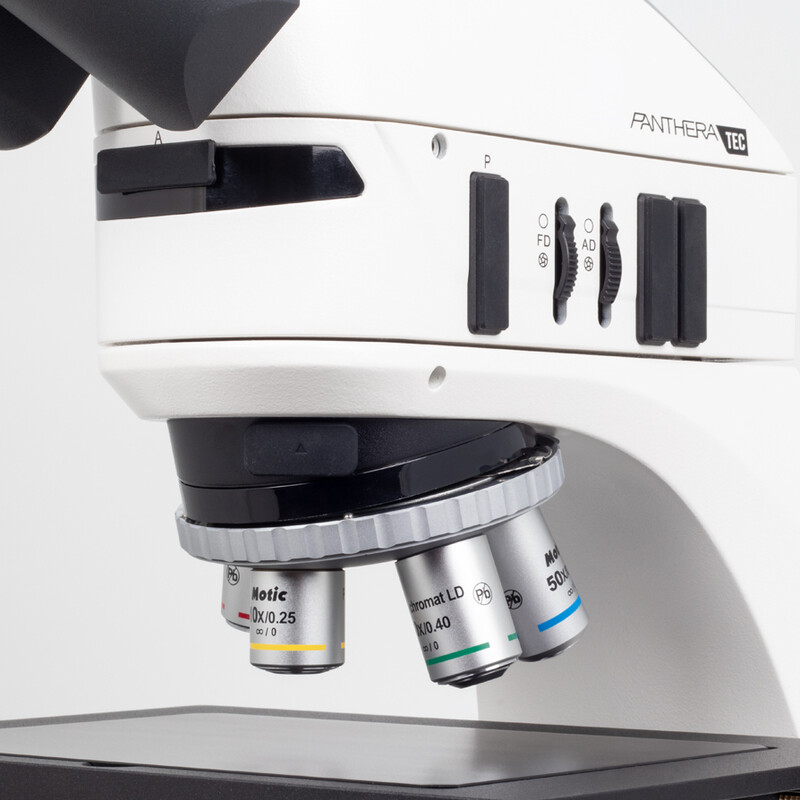

Revolver
5

Special features


Dust cover bag
yes
Filter holder
yes
Wide-angle eyepiece
yes (10x/22)

General


Colour
grey/black
Weight (g)
8400
Length (mm)
396
Height (mm)
282
Width (mm)
210
Series
Panthera

Field of application


Medicine
-

Area of application


Metallurgy
yes
Veterinary medicine
-
University
yes

Miscellaneous


supplier product number
1100104600191
