Microscopes > Upright microscopes > Polarising microscopes > Kern > POL > Kern Microscope OPE 118, POL, mono, achromatic, 40x-400x, incident light, halogen, 20W
Product no.: 66426

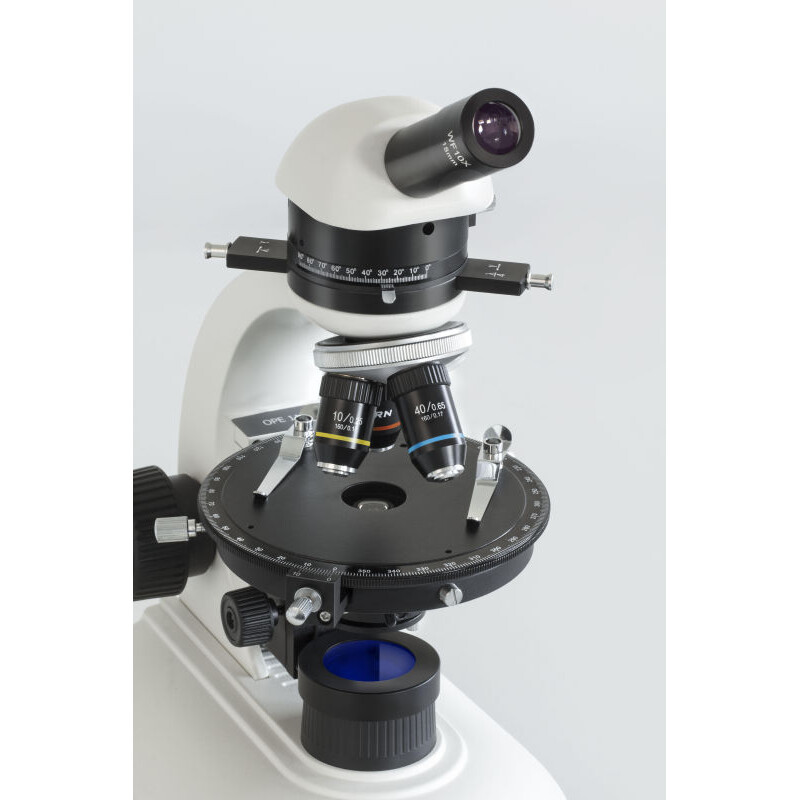

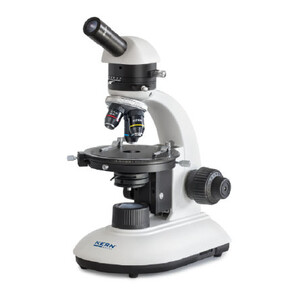

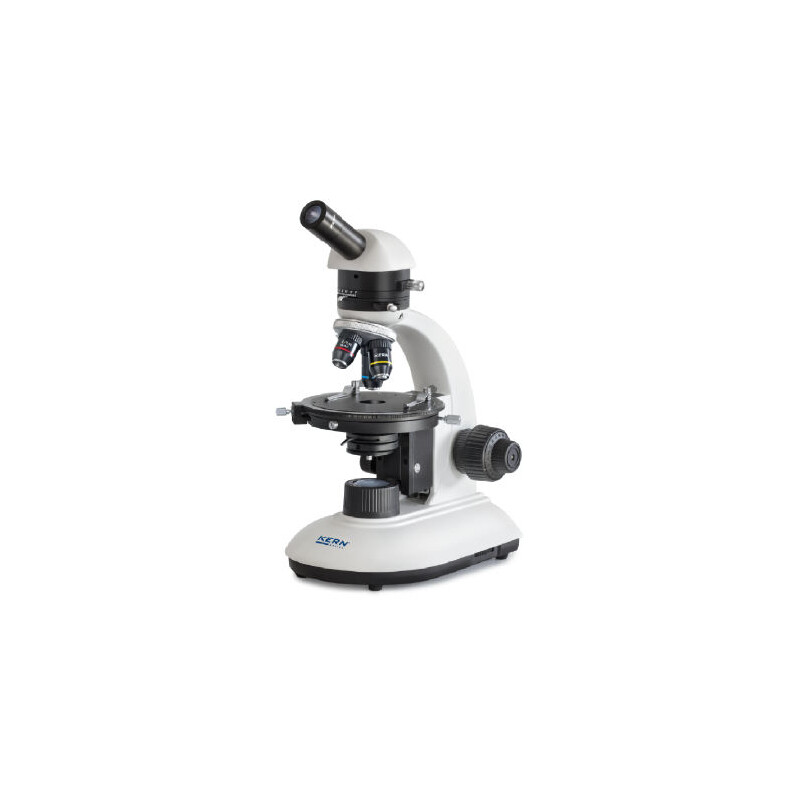

Microscope OPE 118, POL, mono, achromatic, 40x-400x, incident light, halogen, 20W

$ 800.00 incl. VAT plus shipping costs
too expensive?
long-term
Product not available anymore + lead time
Product questions?
advice for Microscopy

Product description

  • The KERN OPE-1 is a robust, stable polarisation microscope which is very easy to use
  • It is suitable for all common routine applications in training companies or workshops and produces excellent images
  • As standard, this microscope is fitted with a scaled wide-field eyepiece, „Non-stress” achromatic lenses, a Bertrand lens and an Abbe condenser
  • A revolving unit for up to 4 lenses and a 360° rotating specimen stage are included with delivery as standard

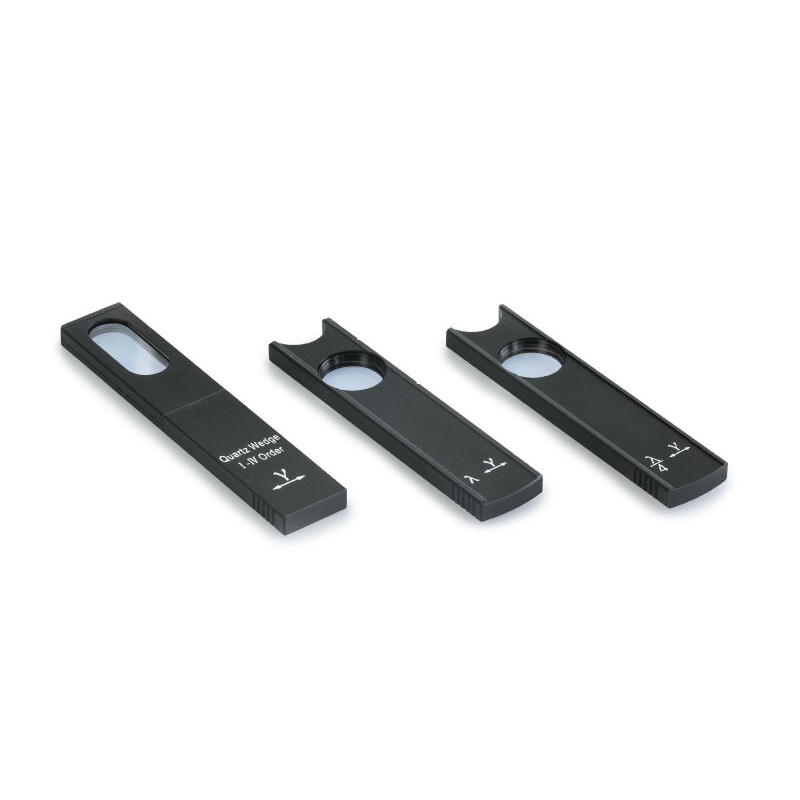

  • The following optional accessory items are available: A quartz wedge, a further eyepiece, lenses and a mechanical table attachment
  • A central feature of this adaptable, robust microscope range is the stable mechanism which can be adjusted precisely. This is emphasized by the functional and ergonomic design

Specifications

Optics

Eyepiece
10x/18 (Widefield)
Optical system
infinity
Lens type
Achromatic
Objective 1
4×/0,10 W.D. 18,6 mm
Objective 2
10×/0,25 W.D. 6,5 mm
Objective 3
40×/0,66 (spring) W.D. 0,47 mm
Magnification
40-400
Condensor
Abbe
Lamp type
Halogen
Power supply
EU-

Capacity

Transmitted light
20W
brightfield
yes
Polarization
yes
Brightness control
yes

Mechanics

Type of build
Monocular
Viewing posture (°)
30 (30° angled eyepiece, 360° rotatable)
Focusing
Coarse and fine movement
Specimen stage
Specimen stage (360°)

Special features

Filter holder
yes
Rechargeable battery operation
-
Dust cover bag
yes

General

Weight (g)
4988
Width (mm)
425
Length (mm)
34
Height (mm)
125
Series
POL

Suitable for

Advanced
yes
Pros
yes

Contrast methods

Polarization
yes

Field of application

Education
-
Hobby
yes
Medicine
-
Industry
yes
show more...

Product safety

Manufacturer: KERN & Sohn GmbH, Ziegelei 1, 72336 Balingen, DE, http://www.kern-sohn.com/
