Microscopy accessories > Lighting > Ring lights > SCHOTT > VisiLED > SCHOTT LED S 80-55 Ø66 ring light for bright-field illumination
Product no.: 49579

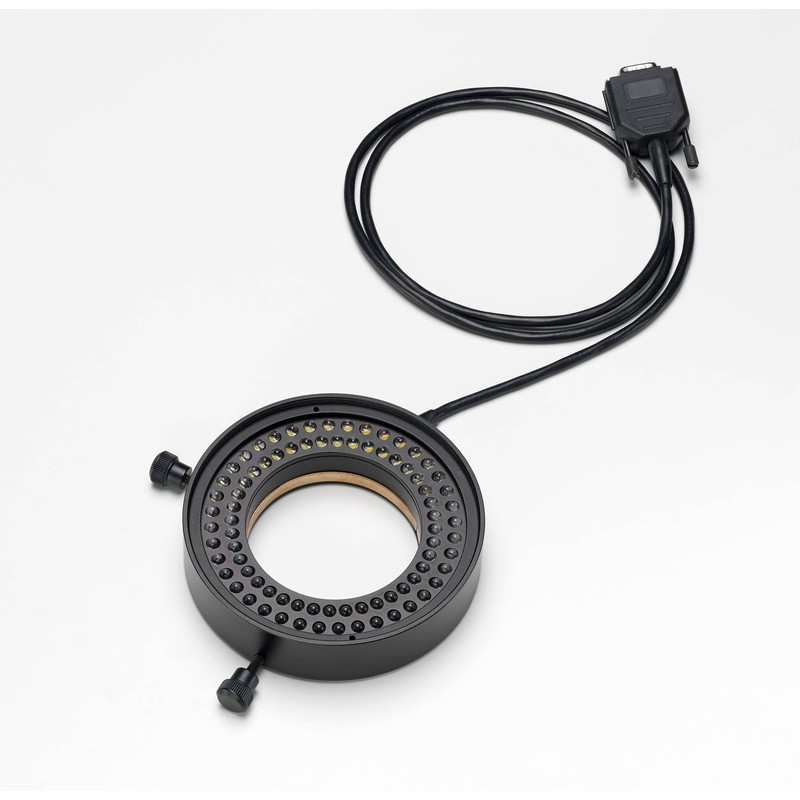

LED S 80-55 Ø66 ring light for bright-field illumination

$ 990.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 1-2 weeks + lead time

Delivery possible before Christmas,
when your order by 04.12.!
Right of return up to January 31 2025!


Product description

VisiLED Brightfield Ringlights - for incident lighting

Brightfield ringlights for high intensity incident light illumination with 80 or 40 white LEDs

  • Ringlights S80-55 and S40-55 with minimum working distance of 55 mm for objectives up to magnification 1
  • Ringlight S80-25 with working distances of 25 - 50 mm for higher magnifying objectives

Illumination system specially developed for stereo microscopy and macroscopy applications

  • 4 Lightheads for brightfield illumination techniques
  • 3 Brightfield ringlights for high and low brightness requirements
  • 1 Transmitted light stage for brightfield applications

Easily adaptable to microscope objectives by means of thumb screw and clamp ring

  • Homogenous illumination.
  • Best white quality: typically 5,600 K.
  • Long operating life: typically 50,000
  • By actively controlling the LED’s temperature.
  • Segments controllable in different preset modes for optimum contrasting

Ringlight S80-55

  • Illumination Method: Brightfield
  • Diodes: 80 high brightness LEDs in 8 segments
  • Color Temperature: 5600K
  • Working Distance: 50 mm ... 135 mm
  • Max. Illuminance: 200 kLx (at 75 mm WD)
  • Dimensions: outerØ: 114 mm/ innerØ: 66 mm/ height: 25 mm

Specifications

Capacity


Temperature of color (K)
5600

Mechanics


Working distance (mm)
50-135
Segmented
yes
Lens diameter (mm)
65

General


Diameter (mm)
66
Series
VisiLED

Field of application


Medicine
yes
Industry
yes

Miscellaneous


supplier product number
400.255
SCHOTT LED S 80-55 Ø66 ring light for bright-field illumination

Segments controllable in different preset modes for optimum contrasting

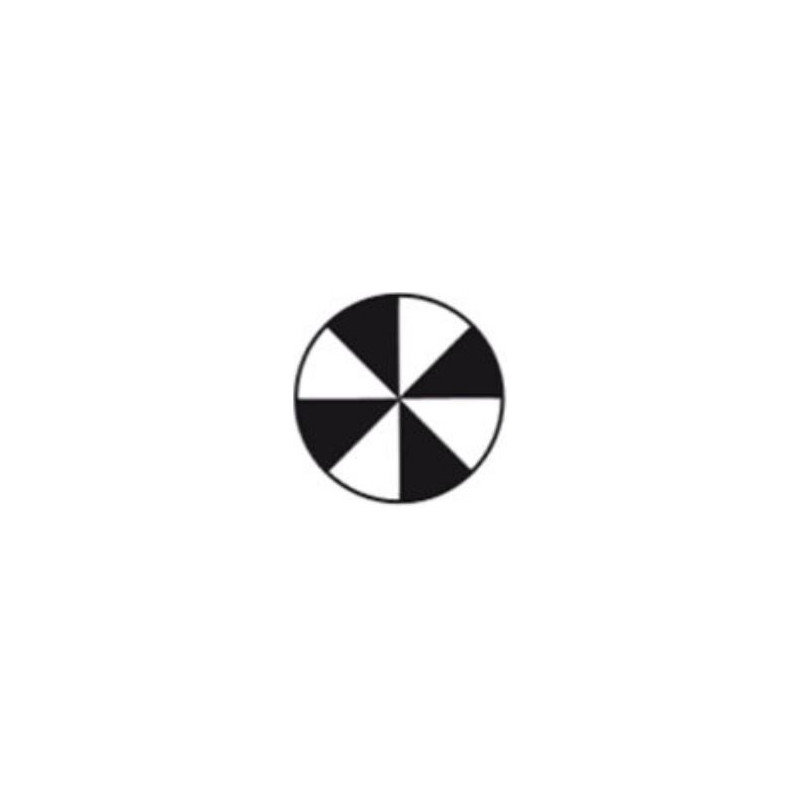

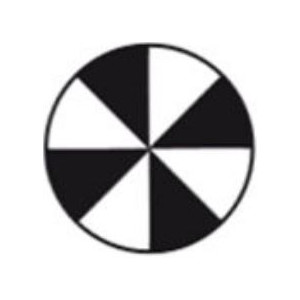

full

SCHOTT LED S 80-55 Ø66 ring light for bright-field illumination

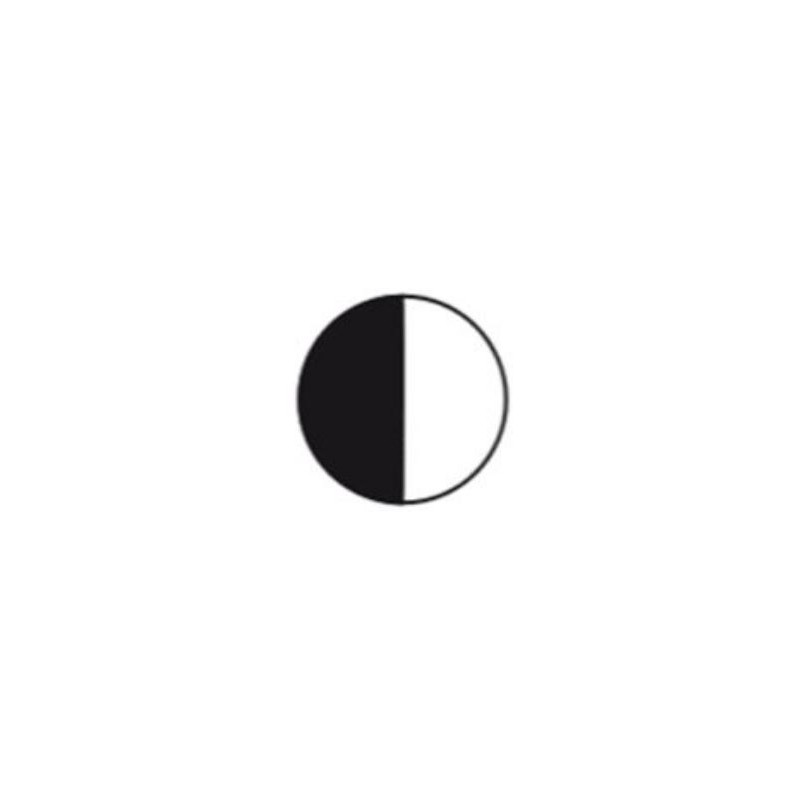

half
SCHOTT LED S 80-55 Ø66 ring light for bright-field illumination

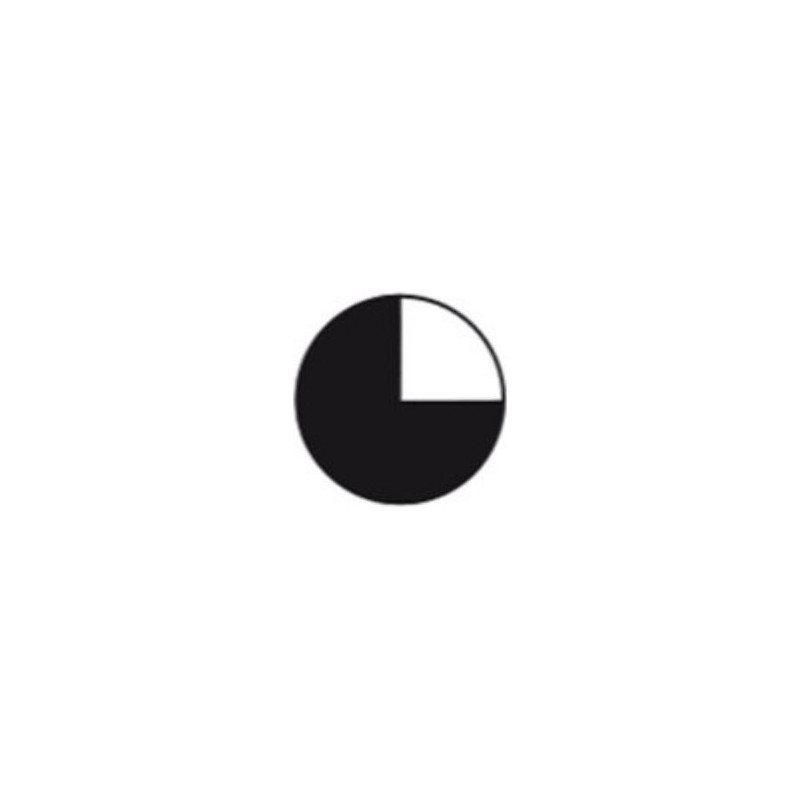

quarter
SCHOTT LED S 80-55 Ø66 ring light for bright-field illumination

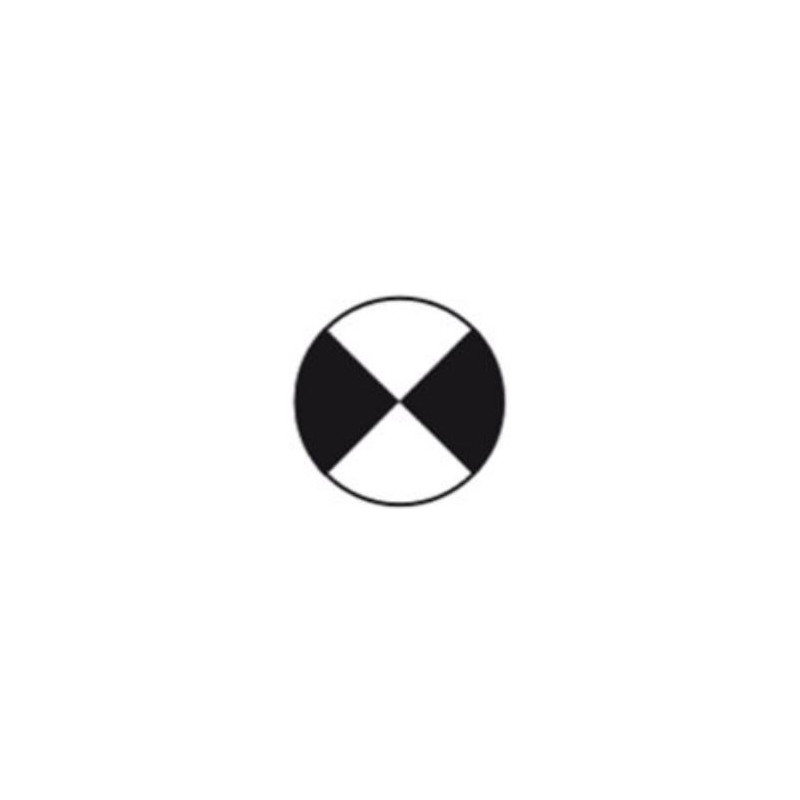

dual
SCHOTT LED S 80-55 Ø66 ring light for bright-field illumination
4-point
