Microscopes > Digital microscopes > Stereo microscope > Motic > SMZ-171 > Motic Microscope SMZ-171iX, digital, 7.5x-50x, w.d. 110mm, 4 MP, 1/3", Wifi/Lan
Product no.: 86042

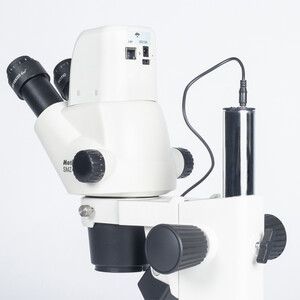

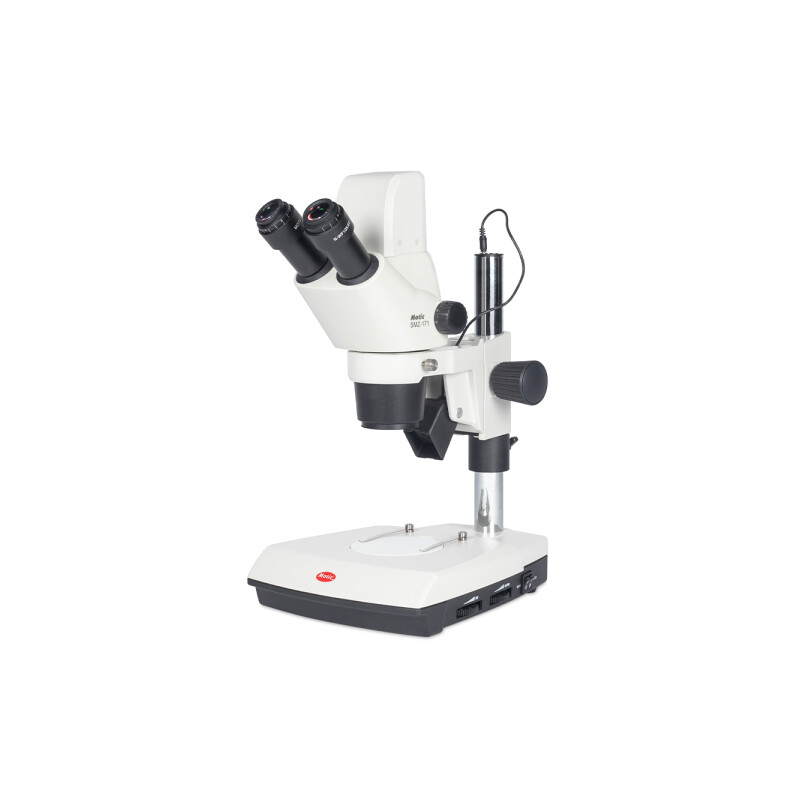

Microscope SMZ-171iX, digital, 7.5x-50x, w.d. 110mm, 4 MP, 1/3", Wifi/Lan

$ 2,700.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 1-2 weeks + lead time

Product description

More about the series SMZ-171...

Motic SMZ171iX - Digital Wi-Fi Stereo Microscope for Tablets & PCs

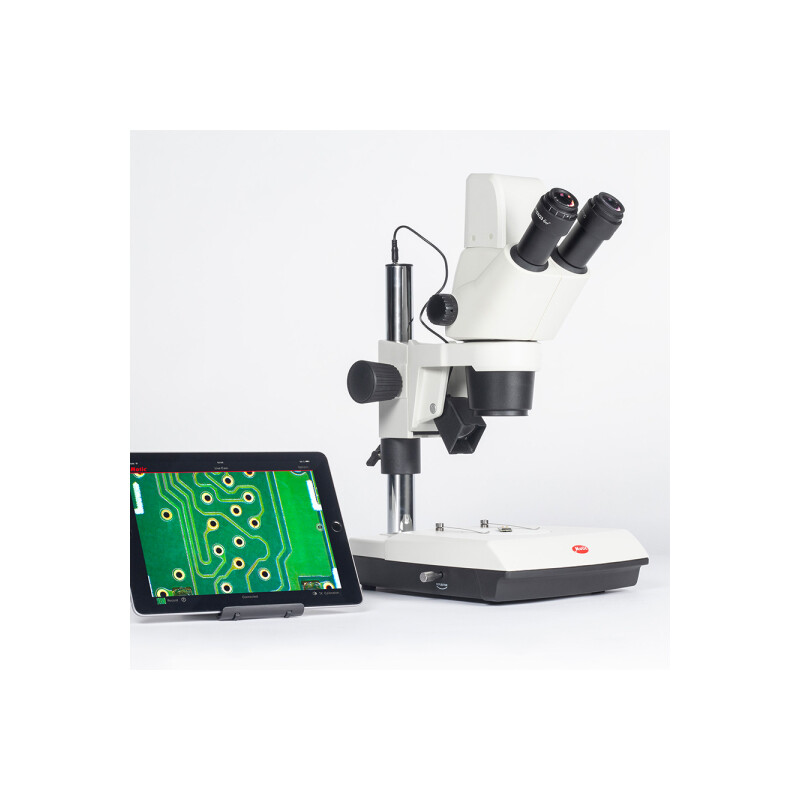

The Motic SMZ171iX is a cutting-edge digital stereo microscope with Wi-Fi, designed for biomedical and materials science applications. Using Motic's free MotiConnect App, users can easily connect their tablet or smartphone to the microscope - ideal for interactive teaching, lab documentation, or quality control. Up to six users can view live images simultaneously. Desktop use is also supported via the Motic Images Plus software.

Equipped with a high-quality Greenough optical system, the SMZ171iX delivers sharp, high-contrast images with a 6.7:1 zoom ratio. Five click-stop zoom positions ensure consistent and repeatable magnification. The 10X/23 widefield eyepieces and a 110 mm working distance provide a spacious and comfortable working area - perfect for sample preparation and inspection.

Key Features:

  • Wireless live imaging via Wi-Fi & MotiConnect App
  • Compatible with smartphones, tablets, and computers
  • Multi-user access: up to 6 simultaneous connections
  • Crisp, detailed images via Greenough stereo optics
  • 6.7:1 zoom with 5 reproducible click-stops
  • Wide field of view & generous 110 mm working distance

Specifications

Optics


Lighting
Incident light and transmitted light
Eyepiece
WF10X/23mm
Magnification
7,5-50
Image scale
0,75-5
Optical system
Greenough

Capacity


Transmitted light
3W LED
Incident light
3W LED

Mechanics


Working distance (mm)
110
Viewing posture (°)
45
Focusing
Coarse movement
Type of build
Digital

Special features


Built-in digital camera
yes
Wide-angle eyepiece
yes

Camera


Megapixel
4
sensor
CMOS
Image transmission
WiFi (Ethernet)
Interface
Wifi, Ethernet
Software
Motic Images Plus 3.1 (Windows, OSX, Linux), MotiConnect App (iOS, Android)

General


Series
SMZ-171
Length (mm)
303
Width (mm)
239
Height (mm)
405 (Column)
Weight (g)
6150

Contrast methods


brightfield
yes
Dark field
optional
Polarization
optional

Field of application


Hobby
yes
Education
yes
Industry
yes

Area of application


Automotive
yes
Semiconductor technology
yes
Maker
yes
Metallurgy
yes
Naturalist
yes
High School
yes
University
yes
Secondary school
yes

Product safety

Manufacturer: Motic Deutschland GmbH, Christian-Kremp-Straße 11, 35578 Wetzlar, DE, http://www.moticeurope.com/
