Microscopes > Stereo microscope > Stereo zoom heads > Motic > SMZ-140 > Motic SMZ-140 head, binocular
Product no.: 48012

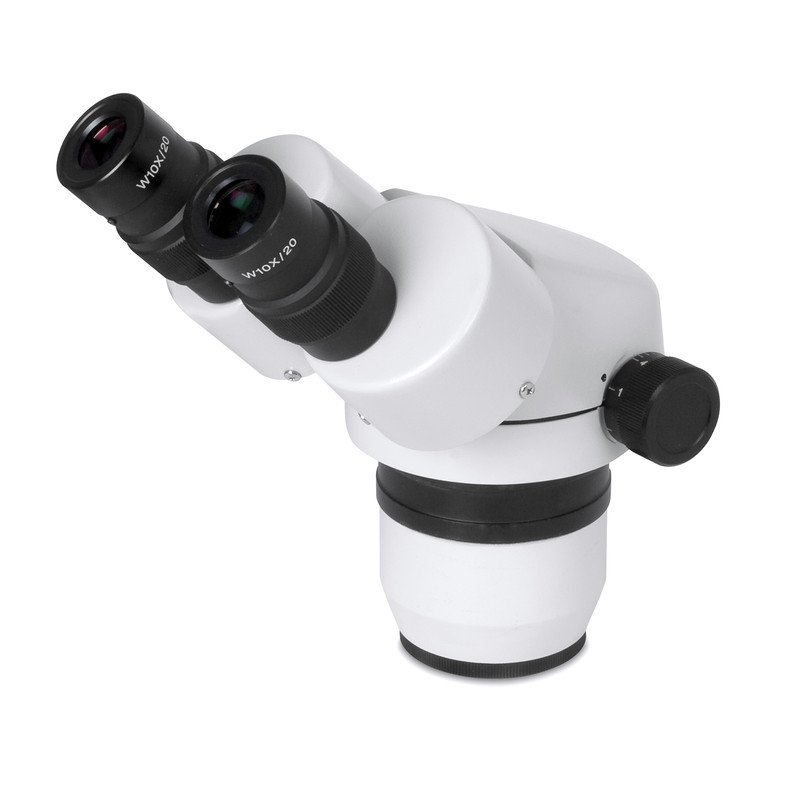

SMZ-140 head, binocular

$ 510.00 incl. VAT, plus shipping costs
too expensive?
short-term
ready for shipping in 1-2 weeks + lead time

Delivery possible before Christmas,
when your order by 04.12.!
Right of return up to January 31 2025!


Product description

More about the series SMZ-140...

SZM-140

Make use of the convenience and versatility of seeing a large part of your sample image at 10X magnification, then zooming continuously to close-up details at 40X…or any point in between. The SMZ140 Series offers a high optical performance combined with a special designed incident and transmitted intensity controlled halogen illumination.

Model: SMZ-140-head

  • Optical System: Greenough
  • Observation Tube: Binocular head
  • Interpupillary distance: 54-76mm
  • Diopter adjustment: On both tubes , +/- 5 diopter
  • Inclination: 45° inclined, 360º rotating
  • Eyepieces: WF10X/20mm
  • Objectives system: Zoom, ratio1:4
  • Objectives magnification: 1X-4X
  • Working distance: 80mm

Specifications

Optics


Magnification
40
Eyepiece
10
Lighting
-
Lamp type
-
Optical system
Greenough

Mechanics


Type of build
binocular
Focusing
Coarse movement
Viewing posture (°)
45° angled eyepiece
Specimen stage
- (black/white)
Working distance (mm)
80

Special features


Centering stage
-
Dust cover bag
yes
Filter holder
-
Wide-angle eyepiece
yes

General


Colour
grey/black
Series
SMZ-140

Field of application


Medicine
yes
