More about the series SZP...

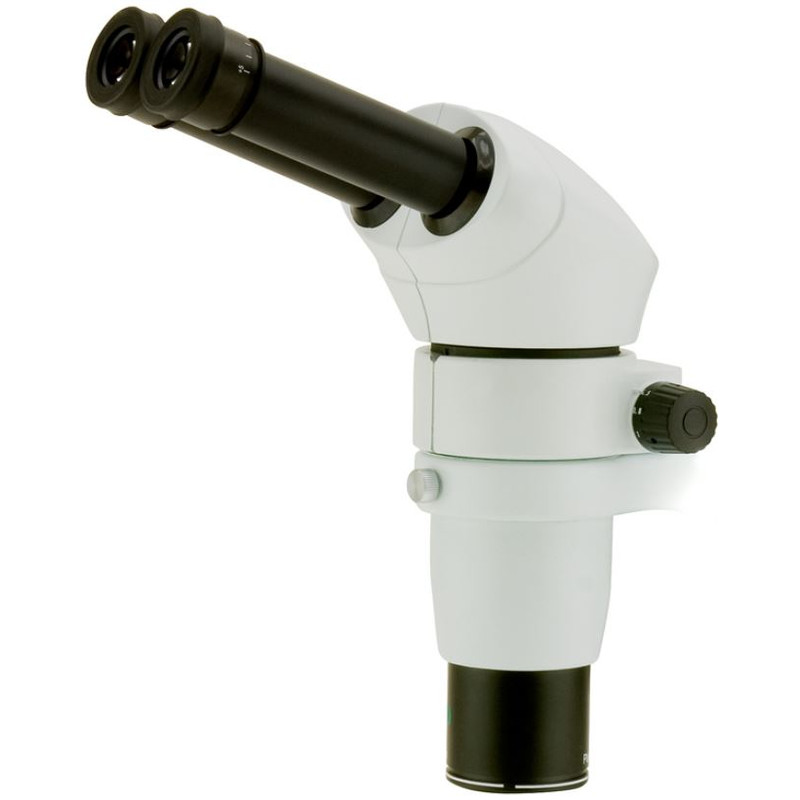

SZP-6 - routine stereozoomhead
Head
- Binocular 360° rotating and 30° inclined.
- Adjustment +- 5 diopters on both eyepieces.
- Interpupillary adjustment 52-75 mm.
Eyepieces
- Widefield eyepieces WF10x/22 with field number 22
Objective
- Parfocal achromatic objective 1X
- Working distance: 80 mm
- Zoom range: 0,8x - 5x (zoom factor: 6:1).
- Maximum magnification in standard configuration: 50X (can be increased to 200X).
Accessories
- Instruction manual and dust cover included.
Illumination
The microscope has no illumination system, but it can be used with external illuminators (halogen, LED or optical fibers) or with the following models:
- ST-151
- ST-153
- SZ-STL3Led
- ST-155
- ST-156
- SZ-STL8
Focusing The microscope can be used with the following models of stand: As an alternative it's possible to use focusing systems with a 76 mm diameter head holder.
- ST-150
- ST-151
- ST-152
- ST-153
- SZ-STL1H
- SZ-STL2H
- SZ-STL3Led
- SZ-STL3
- SZ-STL4
- ST-155
- ST-156
- SZ-STL8
