More about the series Stemi 508...

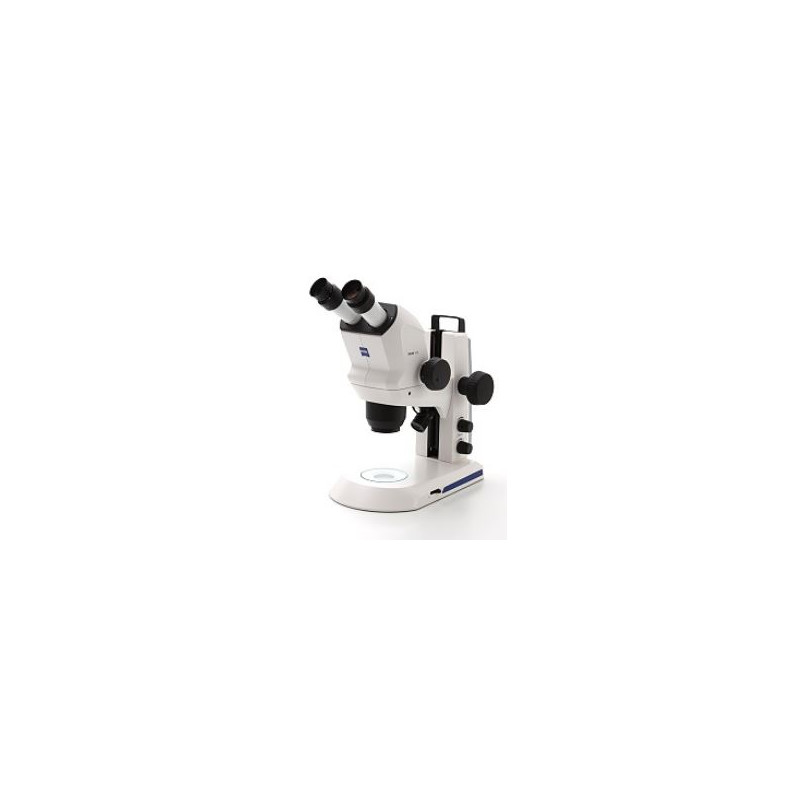

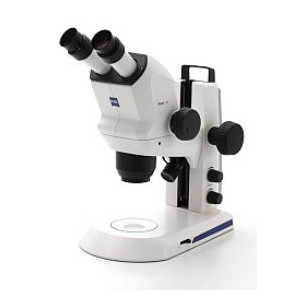

The Stemi 508 is a compact, reliable Greenough stereomicroscope. Its apochromatic optics allow images to be captured with excellent image contrast and colour fidelity. The instruments are designed for a heavy workload. The large object field of up to 36mm allows you to take in the entire sample. The 8:1 zoom allows up to 50X magnification, and when you use the exchangeable optics you can observe an area of up to 122mm in diameter. The Stemi 508 is more ergonomic than any type of Greenough design stereo microscope: The narrow viewing angle of 35° means you can still observe in a relaxed attitude even after many hours of work.
The Stemi 508 microscope can be used to both observe and document your samples exactly as they are: detailed, focused and free from any distortion or colour fringing. The Stemi 508 is your robust all-rounder for daily laboratory work and industrial inspections.
Wide field of view and apochromatic correction
- the apochromatic zoom optics used for the Stemi 508 microscope and efficient stray light suppression ensure a pin-sharp, three-dimensional image with no optical distortions or chromatic aberration.
- observe objects in the field of view of up to 122mm. The wide 8:1 zoom range allows you to observe even the smallest structures under high contrast
- use the exchangeable apochromatic front optics and eyepieces for magnifications from 2X to 250X. Double the resolution or use large working distances of up to 287mm without compromising on optical quality - the choice is yours.

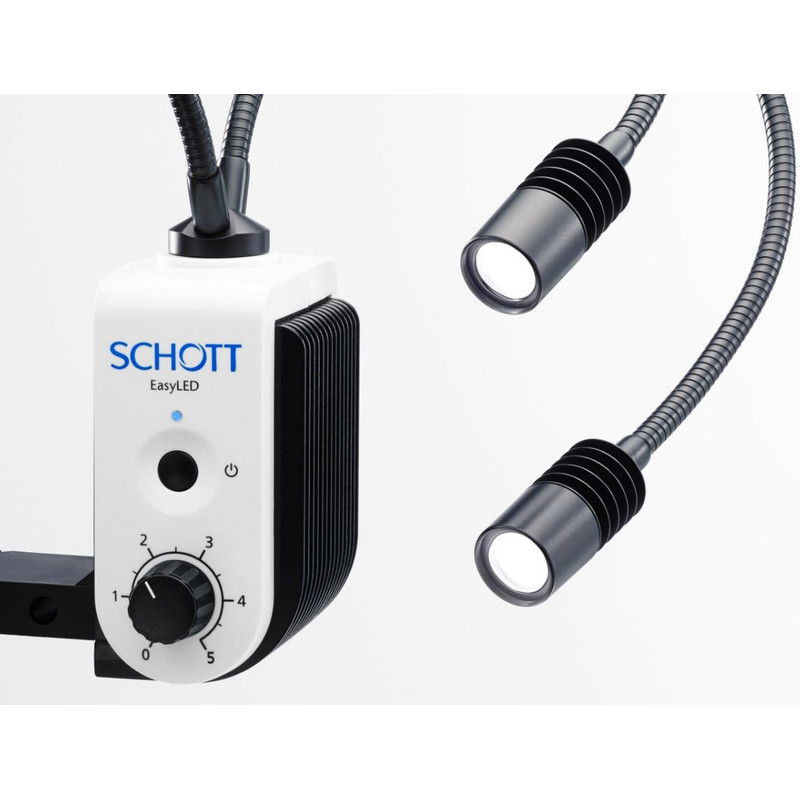

xyz-EasyLED Spotlight Plus
It offers extremely high light output of 140 lm and therefore shines very bright. A heat dissipation device in the LED head ensures that the spot and thus the illuminated object always remain cool.
The EasyLED Spotlight Plus comes in two different versions: as an individual spotlight with a single lighting head and as a double spotlight with two lighting heads. The new Spotlight Plus’s LED head emits intensive light output of 140 lm. The light heads are equipped with special cooling lamellae that prevent the object that is being illuminated from heating up under the microscope. Furthermore, two LED heads can be used at the same time to achieve a sharp light-dark contrast in order to be able to view the objects under the microscope more clearly.
The Spotlight Plus is also easy to use and ergonomical. With the double spotlight, you can even change between the two individual light heads by repeatedly pressing the on and off button. The appropriate mounts and adapters allow for the light to be mounted on different microscopes.
The EasyLED Spotlight Plus features a wide range power pack that covers a range of 100 to 240 V and 50 to 60 Hz. The individual and double Spotlight Plus have been officially tested and certified for use as laboratory equipment. They meet CE regulations and have thus been approved for the European market.
