Microscopes > Digital microscopes > Upright microscopes > Euromex > bScope > Euromex Microscope Mikroskop BS.1157-PLi, Bino, digital, 5.1 MP CMOS, colour, Plan IOS 40x - 1000x

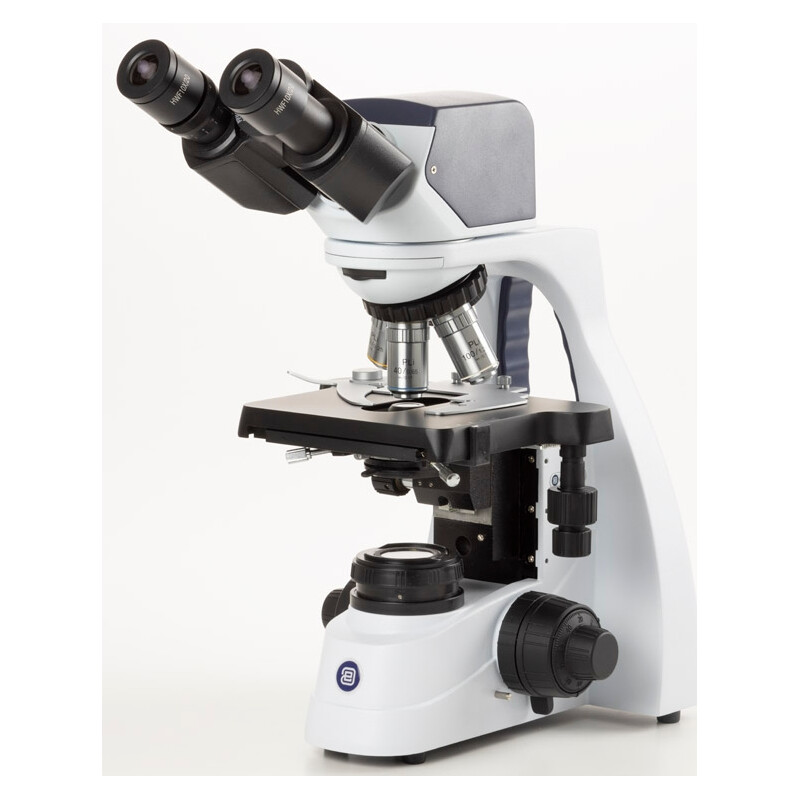

Euromex Microscope Mikroskop BS.1157-PLi, Bino, digital, 5.1 MP CMOS, colour, Plan IOS 40x - 1000x

Product no.: 69775

Microscope Mikroskop BS.1157-PLi, Bino, digital, 5.1 MP CMOS, colour, Plan IOS 40x - 1000x

Name: Euromex Microscope Mikroskop BS.1157-PLi, Bino, digital, 5.1 MP CMOS, colour, Plan IOS 40x - 1000x
Brand: Euromex
Price: 1780 USD

$ 1,780.00 incl. VAT, plus shipping costs

too expensive?

in stock
ready for shipping in 24 h + lead time

add to cart

Product questions?

advice for Microscopy

Product description Specifications Downloads Recommended accessories Customer reviews (0)

Product description

More about the series bScope...

Specifications

Optics

Magnification

Specifies how much larger an object appears compared to when viewed with the naked eye.

Click to read more...

40 - 1000

infinity corrected

Field curvature

Plan

Lighting

Light source

The light source illuminates the object and is available in various forms.

Click to read more...

Transmitted light

Lamp type

LED

Eyepiece

The upper element of a microscope. An eyepiece consists of several lenses and is used for visually observing the object. In microscopy, the magnification power is expressed as -x.

Click to read more...

EWF 10x / 20 mm

Number of objectives

Objective 1

4x / 0.10 (Plan)

Objective 2

10x / 0.25 (Plan)

Objective 3

S40x / 0.65 (Plan)

Objective 4

S100x / 1.25 (Plan)

Immersion lens

yes

Suspension

yes

Colour correction

achromatic

Condensor

A condenser serves to ensure a uniform homogeneous illumination of the object. The Abbe condenser consists of a lens system and an adjustable diaphragm. With it, you can set the optimal contrast for the object.

Click to read more...

Abbe N.A. 1.25 (Abbe 1.25 N.A., focus adjustable, with iris diaphragm)

Optical system

infinity

Capacity

brightfield

yes

Phase contrast

Mechanics

Type of build

binocular

Viewing posture (°)

Viewing position

Describes the position in which you look through the eyepiece, for example at 45° or straight.

Click to read more...

Focusing

A focusing wheel is used to focus the microscope on the particular object.

Click to read more...

Coarse and fine movement (200 x 1µm)

Specimen stage

The object or specimen slide is positioned and centred on this.

Click to read more...

Cross table (140 x 160mm (x/y 79 x 52mm))

Cross table

The cross table has a clamping device for the specimen holder. The object can be precisely centred over two axes with fine adjustments.

Click to read more...

Revolver

Special features

Rechargeable battery operation

yes

Camera

Size of chip (″)

1/2.5

Resolution Photograph (Pixel)

2592x1944

Megapixel

2592x1944

frame rate (fps)

7-27

Interface

USB-2

General

Series

bScope

Weight (g)

9000

Width (mm)

210

Length (mm)

255

Height (mm)

407

Area of application

Veterinary medicine

yes

Miscellaneous

supplier product number

BS.1152-EPLi

show less...
