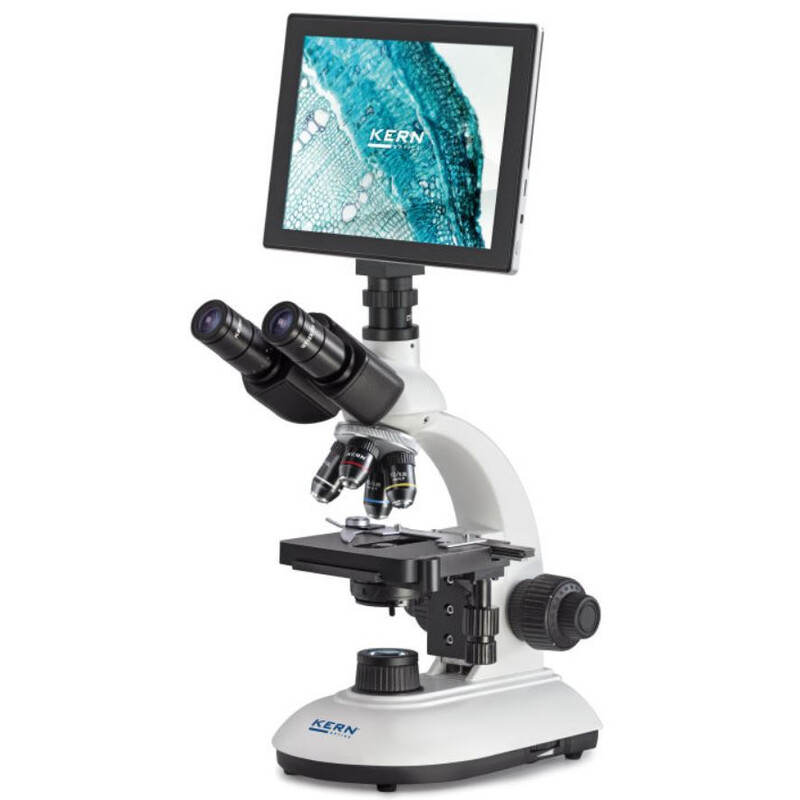

Microscope digital, 40x-1000x, 5MP, WiFi, USB2.0, HDMI, SD, CMOS, 1/2.5", OBE 114T241

• The proven OBE range is now also available to you as a comprehensive digital solution for your live investigations. Optionally available with an adapted tablet or C-mount camera. Naturally, the appropriate C-mount adapter is included with the delivery
• The KERN OBE-1 series is a range of high-quality, fully-equipped compound microscopes, which can't be beaten in terms of ease of use and ergonomic design
• The strong and continuously dimmable 3W LED guarantees optimum illumination of the samples and also ensures long service life
• The height-adjustable and thereby focusable 1.25 ABBE condenser with aperture diaphragm is a further quality feature of the OBE-1 series and ensures the very best concentration of light
• The adapted KERN ODC 241 tablet-camera has been specially developed for simple, convenient and direct investigation of the sample on the screen. Ideally suited for school pupils and students in education or for demonstration purposes in the laboratory
• The adapted C-mount camera is available in different versions and can be used anywhere
• For detailed information on the individual components, see the relevant product description of the individual item
• A large selection of different eyepieces, lenses, a simple polarisation unit and a dark field kit is also available
• A protective dust cover, eye cups, as well as multi-lingual user instructions are included in the scope of the delivery

Technical data

• Finite optical system (DIN)
• 4-fold lens revolving unit
• Siedentopf 30° inclined, 360° rotatable
• Dioptre compensation one-sided (for binocular and trinocular models)
• Overall dimensions W×D×H 320×180×365 mm
• net weight approx. 4,988 kg
• Eyepieces: HWF 10x / 18.0 mm
• Objective quality: achromatic
• Objectives (KERN OBE 104): 4x/10x/40x
• Objectives (KERN OBE 114): 4x/10x/40x/100x
• Illumination: 3W LED (Transmitting)
