Microscopes > Digital microscopes > Upright microscopes > Motic > RedLine100 > Motic microscope RED50X Plus, mono, digital, 40x- 400x, 4MP
Product no.: 76358

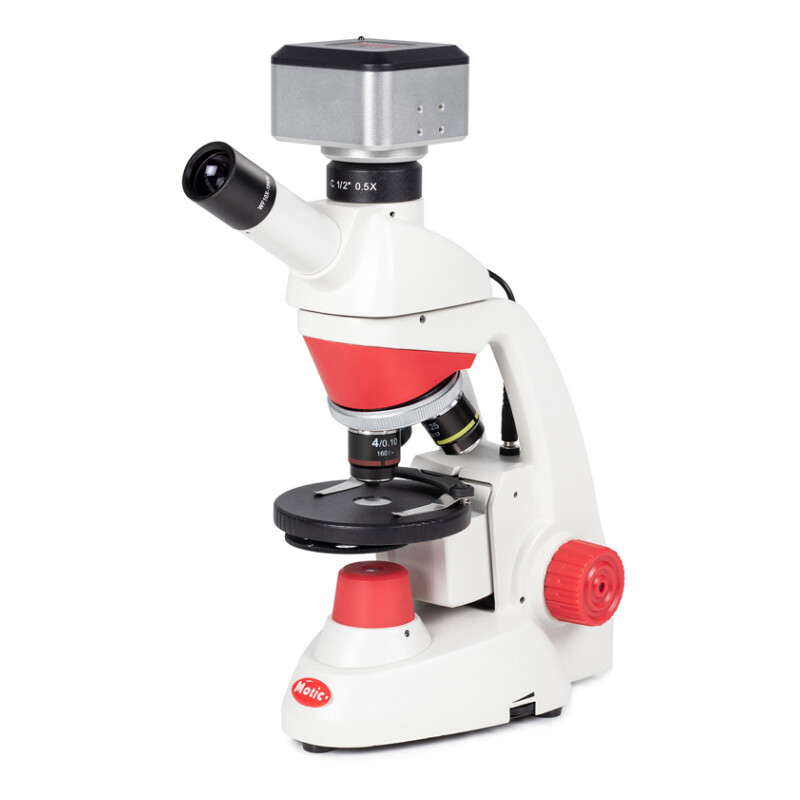

microscope RED50X Plus, mono, digital, 40x- 400x, 4MP

$ 730.00 incl. VAT, plus shipping costs
too expensive?
short-term
ready for shipping in 1-2 weeks + lead time

Delivery possible before Christmas,
when your order by 04.12.!
Right of return up to January 31 2025!


Product questions?
advice for Microscopy

Product description

More about the series RedLine100...

Specifications

Optics

Optical system
DIN (160mm)
Magnification
40-400
Eyepiece
WF 10x/18
Objective 1
4x/0.10
Objective 2
10x/0.25
Objective 3
40x/0.65/S
Lens type
Achromatic
infinity corrected
no
Condensor
0.65 N.A. with disc diaphragm
Lighting
Transmitted light
Lamp type
LED (20mA, 3.5V, 70mW)

Capacity

Brightness control
yes
Resolution Photograph (Pixel)
1280 x 1024
Megapixel
4
Size of chip (mm)
CMOS 1/3"

Mechanics

Type of build
Digital
Focusing
Coarse movement
Viewing posture (°)
30° oblique viewing, 360° rotating head
Specimen stage
Specimen stage

Special features

Dust cover bag
yes
Filter holder
-
Wide-angle eyepiece
yes (10X/18 mm wide field)

General

Colour
white and red
Suitable from
9
Weight (g)
2750
Height (mm)
334
Length (mm)
175
Width (mm)
153
Series
RedLine100

Field of application

Hobby
yes
Education
yes

Area of application

Primary School
yes
Preschool
no
Secondary school
yes

Miscellaneous

supplier product number
1100402800081
show more...
