DM Series
Digital microscopes
The OPTIKA digital microscopes DM are equipped with a camera which is integrated in the head of the microscope, as well as the traditional characteristics of quality and robustness.
The entire DM series, from models dedicated to teaching to those intended for laboratory use, is equipped with "plug & play"Â software. This series is the ideal solution for capturing images and video and transfer them to a PC.

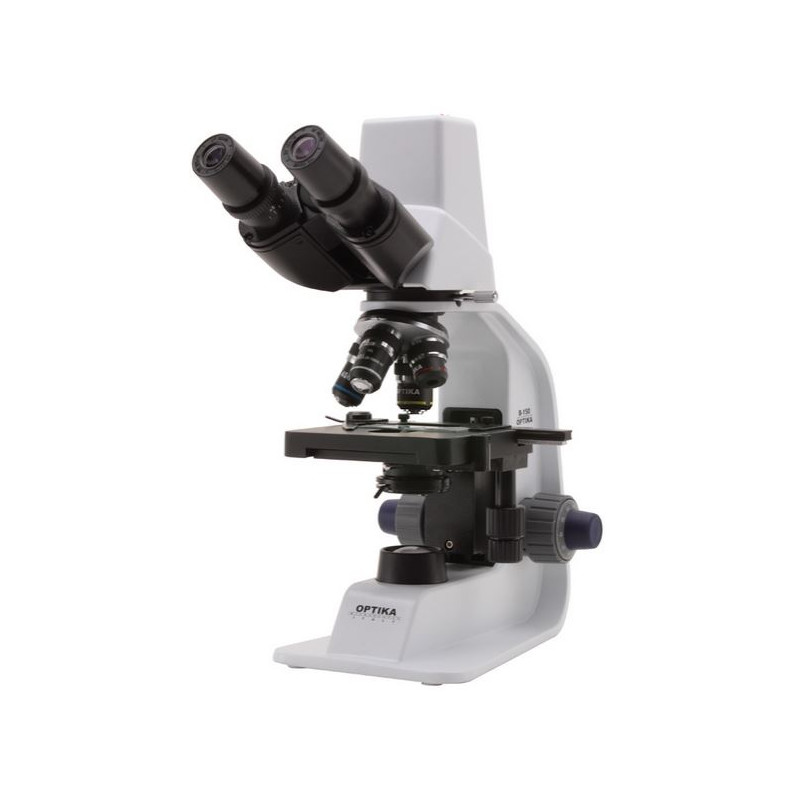

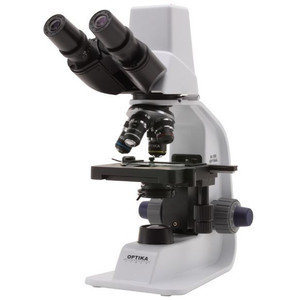

B-150DB, bino, digital, 40x-1000x
Specification
- Model: Binocular with double layer stage, objectives 4x 10x 40x 100x
- Head: Binocular Digital observation head, inclined 30° and rotatable 360°.
Diopter adjustment on left eyepieces.Interpupillary adjustment 48-75 mm.
- Eyepieces: Widefield 10x18mm
- Observation Modes: Brightfield
- Eyepieces: Widefield eyepieces WF10X/18 with field number 18mm.
- Nosepiece: Quadruple revolving nosepiece, rotation on ball bearings.
- Objectives: Achromatic objectives with mechanical tube lenght 160 mm, made by following objectives:
Achromatic DIN 4X, A.N. 0.10, W.D. 18 mmAchromatic DIN 10X, A.N. 0.25, W.D. 7 mmAchromatic DIN 40X, A.N. 0.65, W.D. 0,53 mmAchromatic DIN 100X, A.N. 1,25, W.D. 0,13 mm (oil immersion)ll objectives are treated with an anti-fungus treatment.
- Stage: Double layer with mechanical sliding stage, size 125x115mm, X-Y movement range 70x30, specimen holder for one slide. Vernier scale on the two axes, accuracy 0,1 mm.
- Illumination: 1 watt white LED, non-rechargeable, with brightness control
- Condenser: 1.25 N.A. Abbe type
- Digital camera resolution: 2048x1536 pixels (3.14Mp)
- Output: USB 2.0 port
- Software: OPTIKA Vision Lite for Windows XP/Vista, Win7, Win8, 32-64 bit
