Telescope accessories > Mounts & accessories > Mounts > Alt-azimuth without GoTo > Vixen > Porta > Vixen Montierung PORTA II mit Stativ
( 3 / 5 )
Product no.: 14828

Montierung PORTA II mit Stativ

$ 337.68 Now only:
$ 310.66 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 1-2 weeks + lead time

Right of return up to January 31 2025!


Product description

Specifications

Capacity


Designation
PORTA II
Max. additional load capacity (kg)
5
Worm gear teeth (RA) (piece)
120
Appropriate for...
OTAs with an outer diameter of less than 16cm
Drive type
Worm wheel

Special features


Fine adjustment
yes
Manual tracking
yes
Accessory tray
yes
Fitting for prism rail
yes (Vixen style)

Equipment


Accessory plate
yes
Motor-powered
no
Carry case
no
Tripod
Tripod

Tripod


Max. tripod height (cm)
120
Tripod weight (kg)
2,8
Tripod material
Aluminium

General


Colour
white
Total weight (kg)
5,8
Series
Porta
Type
Mount
Type of build
Azimuthal

Product safety

manufacturer: Vixen Co. Ltd., 5-17-3 Higashi-Tokorozawa Tokorozawa-shi, 359-0021 Saitama, JP, www.vixen.co.jp
resp_person: Bresser GmbH, Gutenbergstraße 2, 46414 Rhede, DE, [email protected]
Vixen Montierung PORTA II mit Stativ

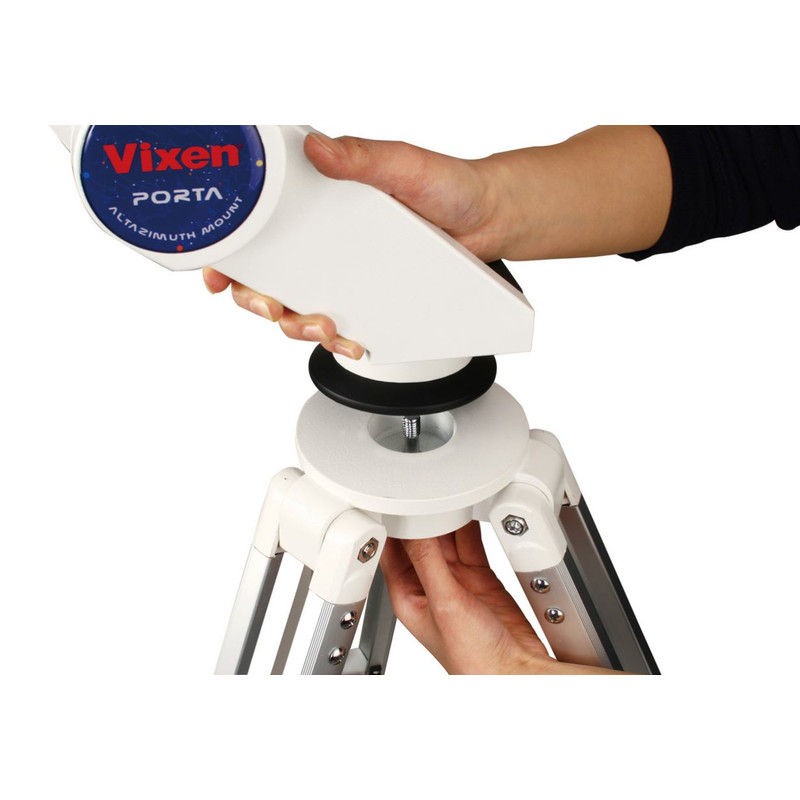

The mount is easy to separate from the tripod
Vixen Montierung PORTA II mit Stativ

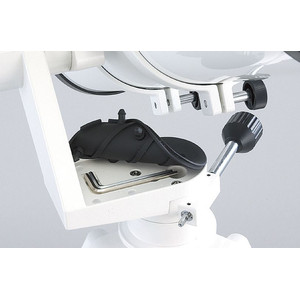

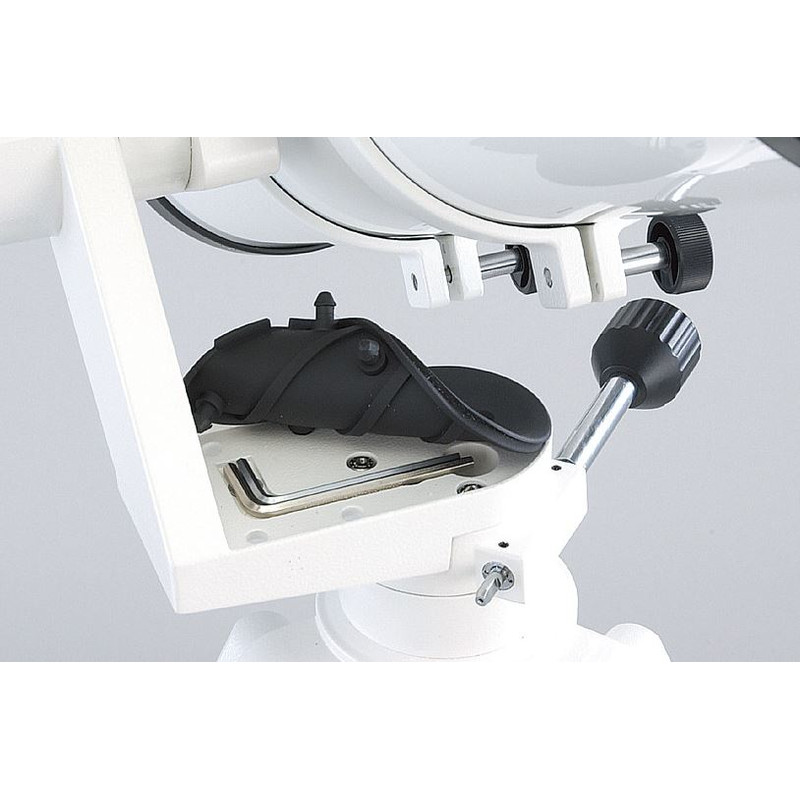

Practical tool tray with magnetic holder.
Vixen Montierung PORTA II mit Stativ

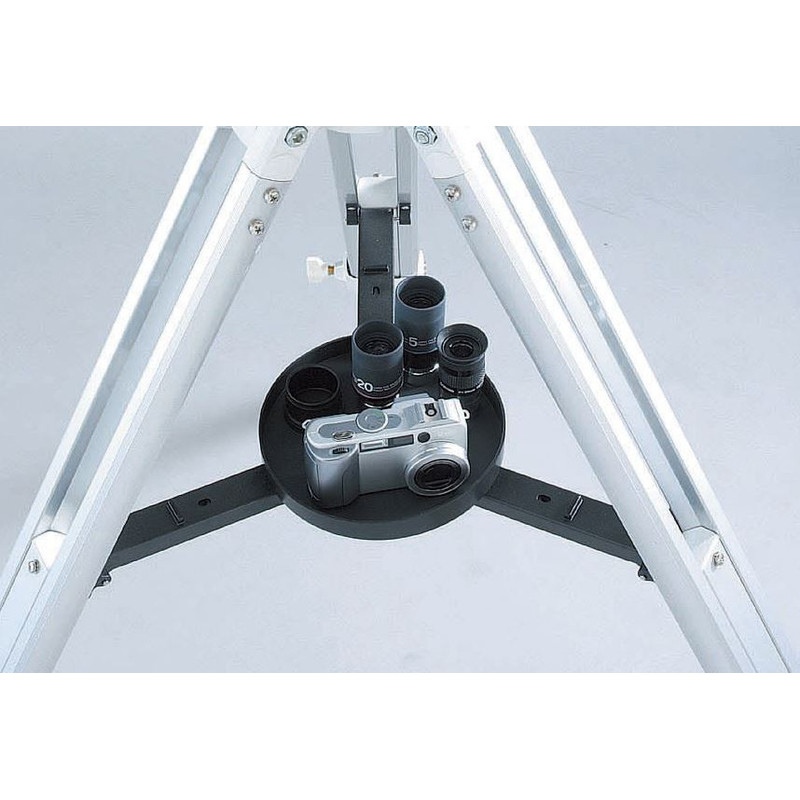

Storage shelf for accessories
Vixen Montierung PORTA II mit Stativ

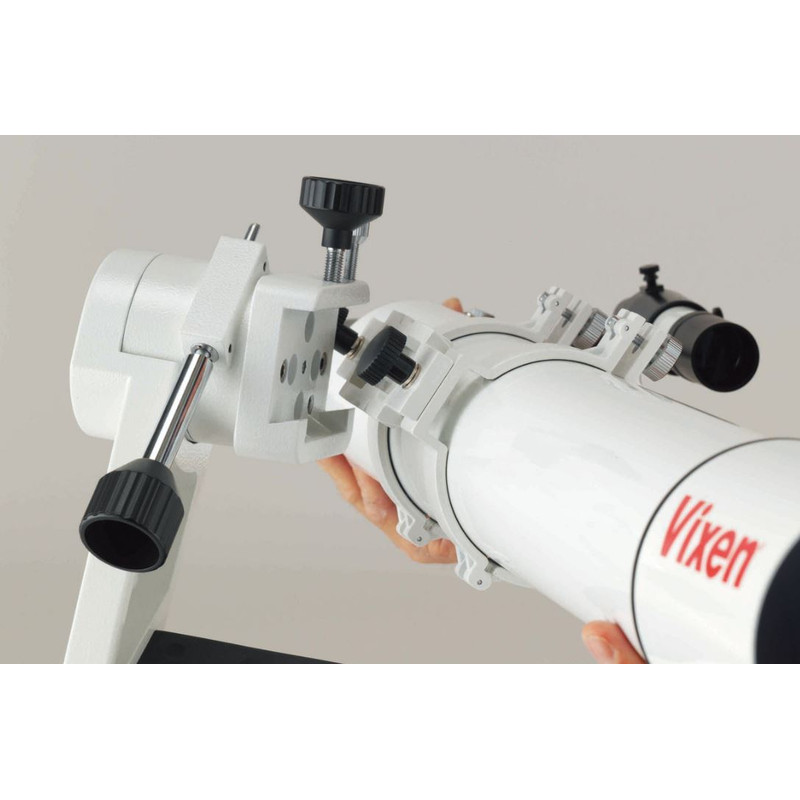

Most telescopes have the standard Vixen connection, with which they can easily be attached to the mount.
Vixen Montierung PORTA II mit Stativ

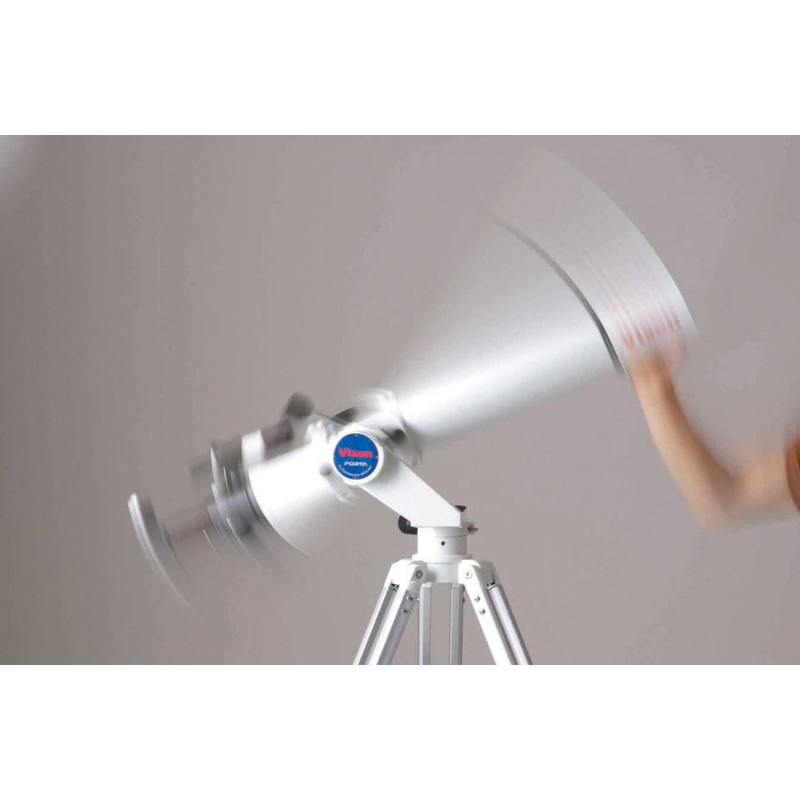

The resistance of the slip clutch is adjustable and so can be adapted to optics of different weights.

Customer reviews

Better for shorter refractors

Review by P. S. on 04.02.2013 16:26:46

( 3 / 5 )

I made the mistake of buying this mount for use with a TAL100RS. Although the mount can take the weight, the long length of the scope gives it a high torque moment which leads to a wobbly image! The image takes maybe half a minute to become steady after touching the scope in any way and if it's windy at all then just forget it!

On the other hand, the mount is very nice to use and, with the optional slow motions, easy to track with.
It should be fine for shorter refractors but don't buy it for use with a TAL100RS!

Phil
Weimar
