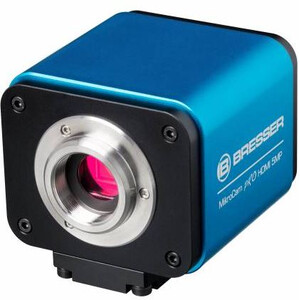

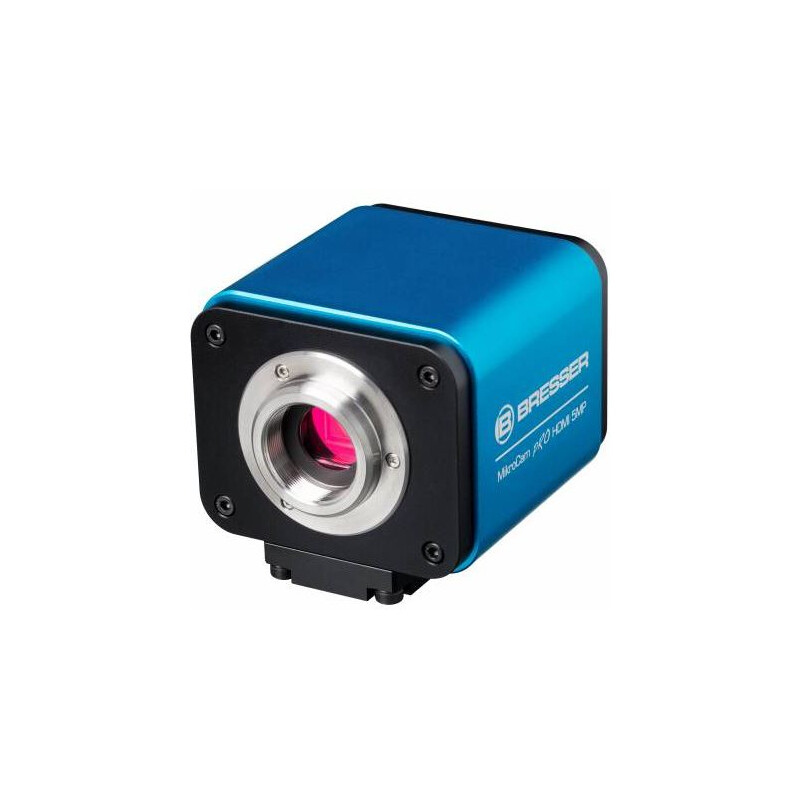

BRESSER MikroCam PRO HDMI 5MP microscope camera
The BRESSER MikroCam PRO HDMI 5MP impresses with its outstanding image quality and user-friendly operation. It delivers the microscope image live and without delay as an HDMI signal with full HD resolution to a monitor or TV. An optional 11" HDMI monitor can be mounted directly on the camera and delivers brilliant images and high-contrast pictures. This camera has a high-quality Sony 5MP sensor for high-resolution micro photos, so images and videos can also be saved on an SD card at higher resolutions than full HD. The camera functions are operated by mouse directly on the on-screen menu. Measurements can now also be carried out via the on-screen menu, turning your microscope into a fully-fledged digital measuring microscope with the MikroCam Pro HDMI 5MP. In addition to this, the camera can also share the microscope view on a wireless network via WiFi module. However, this model no longer provides for connection to a PC via USB. For this purpose, we recommend the model MikroCam Pro HDMI 56041. The professional software MikroCamLabII is nevertheless included in the scope of delivery so that images can be subsequently processed and evaluated with the software.
PROPERTIES
- HDMI connection for monitor or TV
- Brilliant image reproduction in Full HD via HDMI (60 frames / sec) or WiFi (up to 25 frames / sec)
- Measuring function via on-screen menu (object micrometre art. no. 5916720 required for calibration)
- Function for wide dynamic range (WDR)
- Save pictures and videos on SD card (not included) max. 32GB
Software for image evaluation included in the following languages
(no direct image recording via USB possible)
- German
- English
- French
- Polish
- Russian
- Turkish
- Indonesian
- Japanese
- Chinese (simplified)
- Chinese (traditional)
The software has numerous functions for image processing
- Measuring function*: Lines, angles, areas (polygon, circles, ellipses)
- Image stacking from video files
- Fluorescence microscopy: Data for numerous fluorophores are stored in the software
- Batch save
- High dynamic range (HDR)
* An object micrometre is required to use the integrated measuring function (e.g., Bresser article no. 5916720).
SCOPE OF DELIVERY
- MikroCam Pro HDMI 5MP with C-mount thread
- Power supply
- Mouse
- HDMI cable

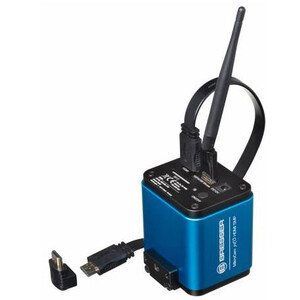

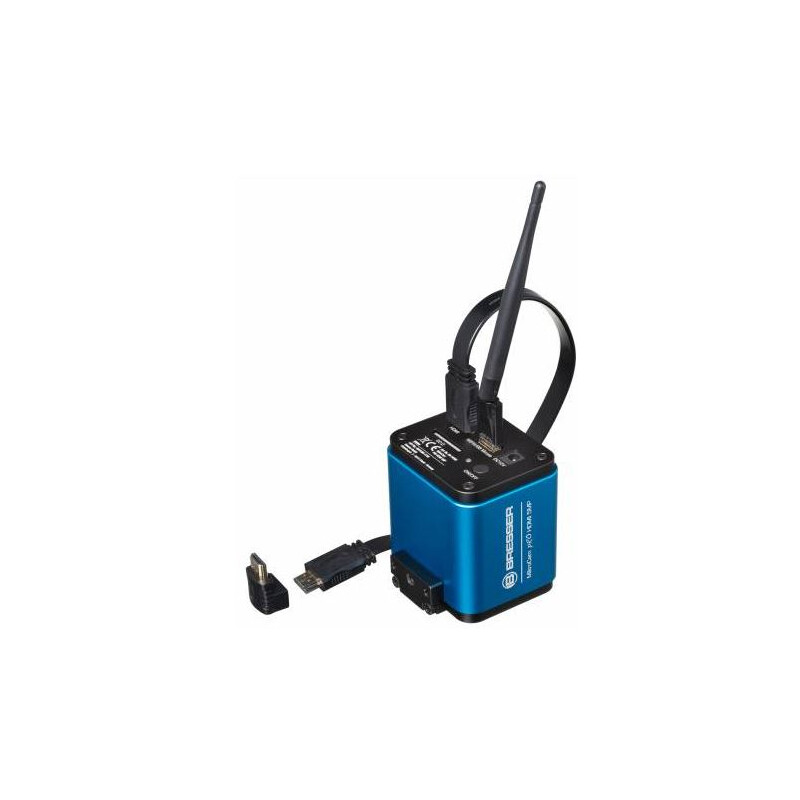

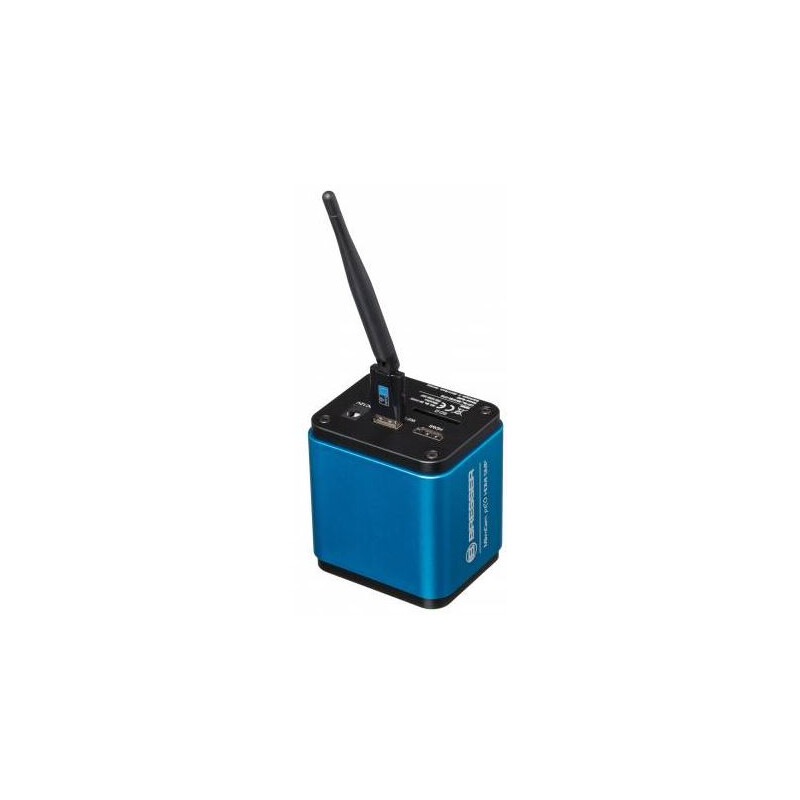

- WiFi module
- Software (CD-ROM)
