CMEX-3/5/10/18 Pro
The high speed USB-3 cameras with ImageFocus Alpha capture and analysis software are the perfect solutions for today’s educational, laboratory and industrial microscopy needs. The cameras are suitable for Life Science and Material Science microscopes as well as stereo microscopes CMEX-3 Pro, CMEX-5 Pro, CMEX-10 Pro and CMEX-18 Pro USB 3.0 high speed camera The CMEX-3 Pro, CMEX-5 Pro, CMEX-10 Pro and CMEX-18 Pro cameras are equipped with relatively 3.1, 5.1, 10 or 18 MP CMOS sensors with 12 bits grayscale conversion and a 24 bits color rendering. This cameras are equipped with a USB- 3 data interface enabling fast frame rates (up to 101 f/s) and are supplied with ImageFocus Alpha software Besides capturing of images and videos, the software allows measurements on still and live images and to perform annotations on captured images. Compatible with Windows XP, Vista, 7, 8 and 10, both 32 and 64 bits configurations. A 2 GB RAM 2.8 GHz computer and 17 inch display is recommended as minimum requirement
TECHNICAL SPECIFICATIONS CMEX-5 PRO (DC.5000-Pro)
- Sensor: CMOS 1/2.5 inch
- Pixels: 2560 x 1922 pixels, 5.1 MP
- Scan mode: progressive, rolling shutter
- Pixel size: 2.2 µm x 2.2 µm
- Filter:RGB
- Mount:C-mount
- Max fps:
- Up to 14 frames per second (2560x1922 pixels)
- Up to 39 frames per second (1280x960 pixels)
- Up to 101 frames per second (640x480 pixels)
- Exposure: automatic or manual
- White Balance: automatic or manual
- Dynamic range: 68 dB
- S/N max: 38.5 dB
- Data interface: USB3.0 high speed
- Operation: -10~50°C, 30-80 % humidity
- Storage temperature: -20~60°Celsius
- Power supply: 5V over PC USB Port
- Housing: integrated CNC aluminum alloy

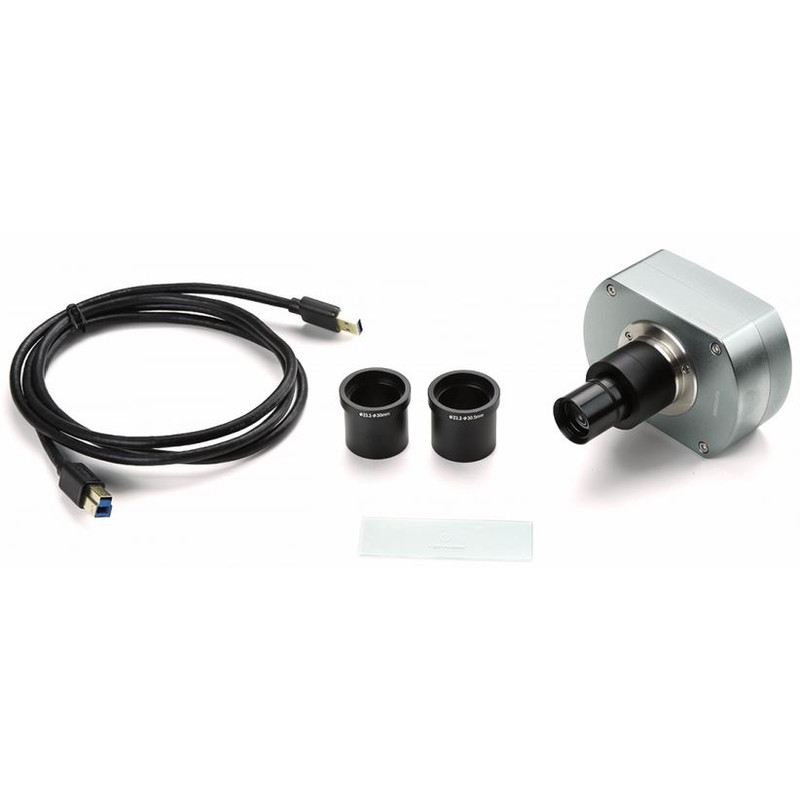

- Supplied with 0.5x objective with C-mount, USB 3 cable, 30 and 30.5mm adapters for stereomicroscopes, 76x24mm calibration slide (1mm/100), CD ROM with ImageFocus Alpha software, carton box
- Software: supplied with ImageFocus Alpha capture with measuring software
- PC requirements: Compatible with Intel Core 2, 2.8 GHZ or higher, 2GB, USB-3 high speed, Win XP (32bit), Vista/ 7/ 8/ 10 (32 and 64 bit configurations)
