USB Cameras – B Series
Cameras have become indispensable nowadays and OPTIKA is offering a line of remarkable solutions for digital imaging.
OPTIKA B Series represents a cost-effective solution equipped with the latest technology sensors with more vivid colors and great contrast for stunning images. This series features Aptina CMOS sensor with excellent color reproduction, significantly high frame rates and several resolutions available to match any customer need. Thanks to the convenience and simplicity, being extremely intuitive to install and operate, the OPTIKA B Series is recommended for educational and routinary microscopes, also as eyepiece cameras (no need for additional adapters/rings in case of monocular and binocular microscopes).All the main operating systems like Windows, IOS, Linux are supported. SUPERB RESULTS AND VIVID DETAILS FROM STANDARD TO HIGH RESOLUTION. OPTIKA B cameras are provided with remarkable and cost-effective sensors to capture vivid colors and generate relevant contrast for stunning images and delivering incredibly accurate colors just as you see them. Convenience and simplicity make sure these cameras are appreciated for teaching and routine applications in several fields. USER-FRIENLDY USB CAMERAS FOR GENERAL PURPOSES. Connect the camera to a PC via USB and install the most suitable OPTIKA software for your needs. The incredible capabilities of OPTIKA software suites ensure intituitive operations for live view and image/video capturing for basic users and give the chance to obtain more advanced functions (including HDR, EDF, stitching & tiling, customized report generator etc.) for experienced users. All the main operating systems like Windows, Mac OS, Linux are supported.

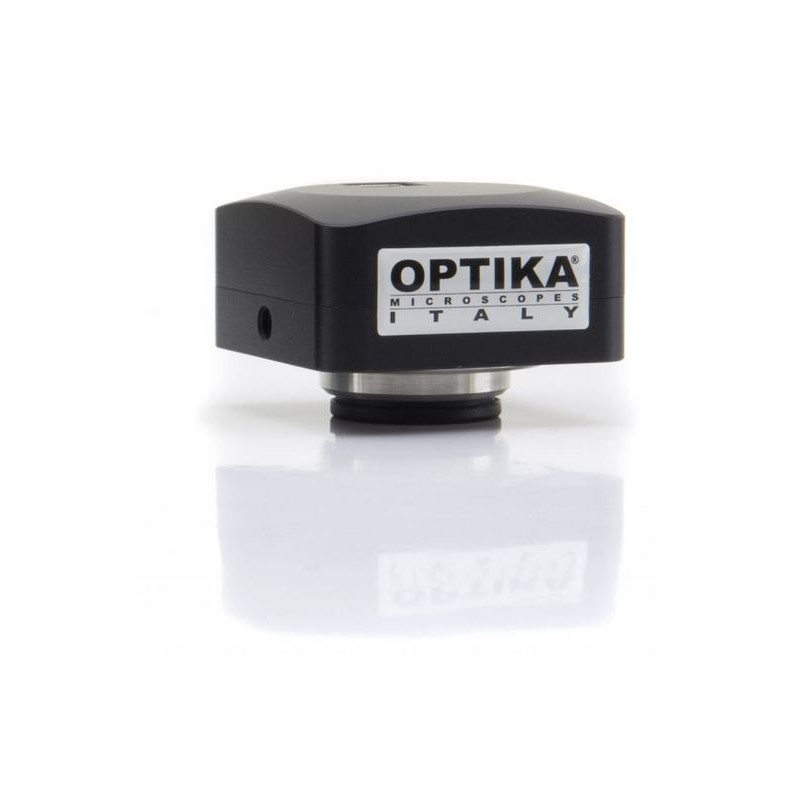

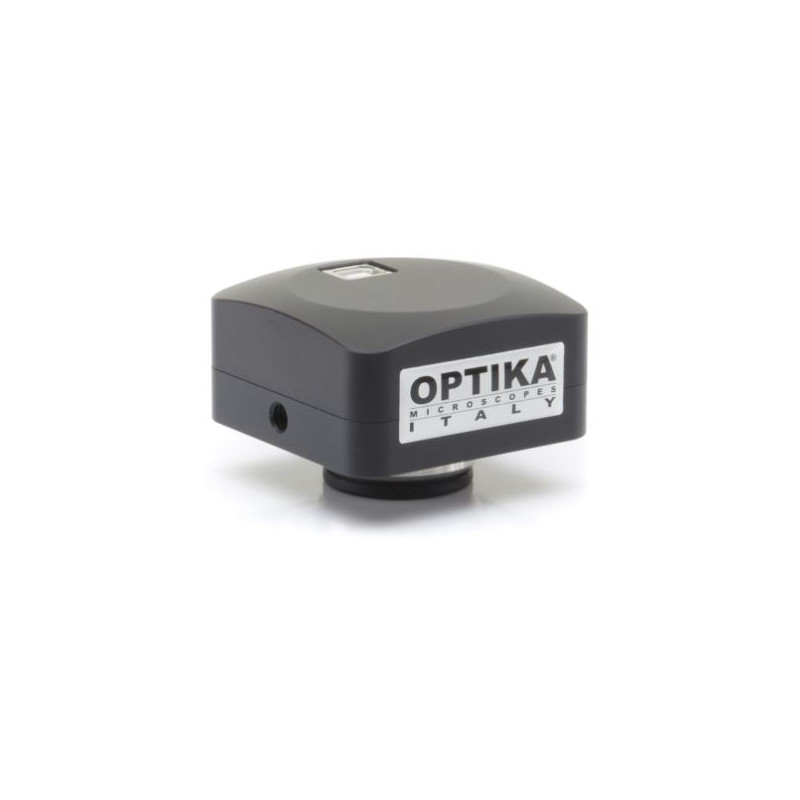

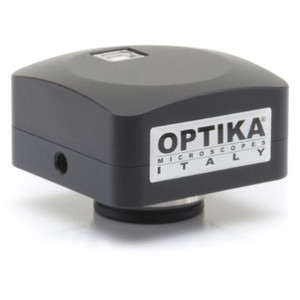

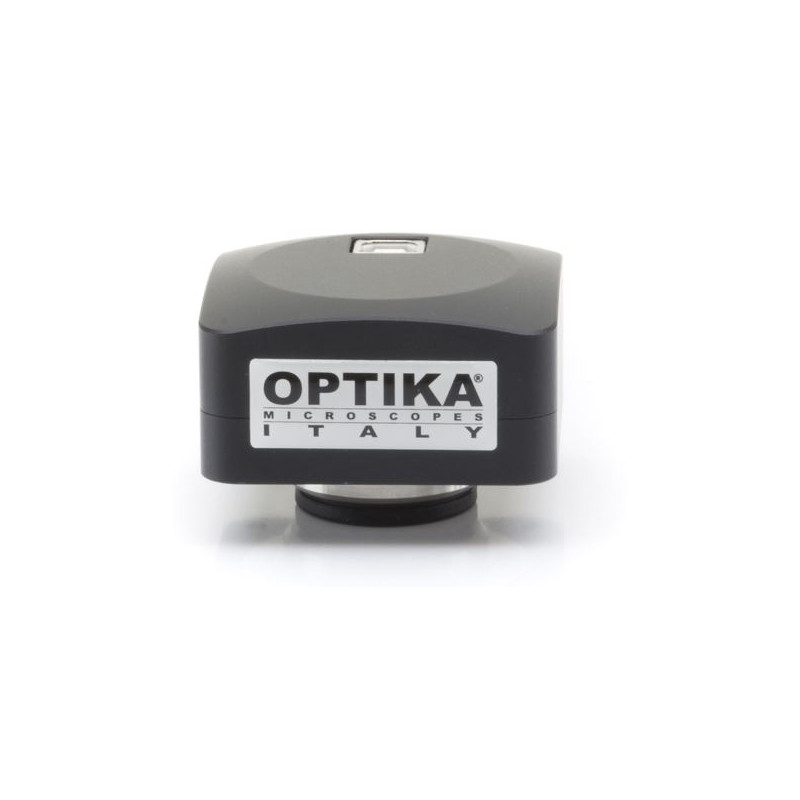

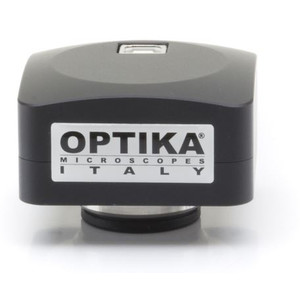

C-B5
Cost-effective CMOS camera for routine applications. Recommended for educational microscopes and routinary microscopes, also as eyepiece camera. Aptina CMOS sensor with excellent color reproduction for routine applications. 5.1 MP resolution. Eyepiece and C-mount connection for each application required. Excellent color reproduction. Can be connected to monocular, binocular or trinocular microscopes. Including 3 softwares (OPTIKA Vision Lite, OPTIKA Lite View and OPTIKA Pro View) for Windows. Lite versions available for Mac OS and Linux. Equipped with lens for optimized field of view, 30 and 30.5 mm eyepiece adapter rings and calibration slide for establishing measurement baselines.
CAMERA SPECIFICATION
Digital camera resolution: 5.1 MP (2592 x 1944)
Signal output: USB 2.0
Sensor Size 1/2.5”
Sensor technology: CMOS
Sensor type Aptina: CMOS
Image format: 4/3
Pixel size: 2.2 x 2.2 µm
Frame rate full resolution: 7 fps (2592 x 1944)
Frame rate other resolutions: 27 fps (1280x 960); 90fps (640x 480)
Sensitivity: 0.53 V/lux-second
Signal / noise ratio: 40.5 dB
Dynamic range: 66.5 dB
ADC conversion: 8 Bit
Color Depth: 1 Bit; 4 Bit; 8 Bit; 24 Bit
Exposure Time: 0.294 msec - 2 sec
Binning: 1x1; 2x2; 4x4
IR filter: 380-650 nm (IR-cut filter)
Camera power: PC USB
C-mount: YES

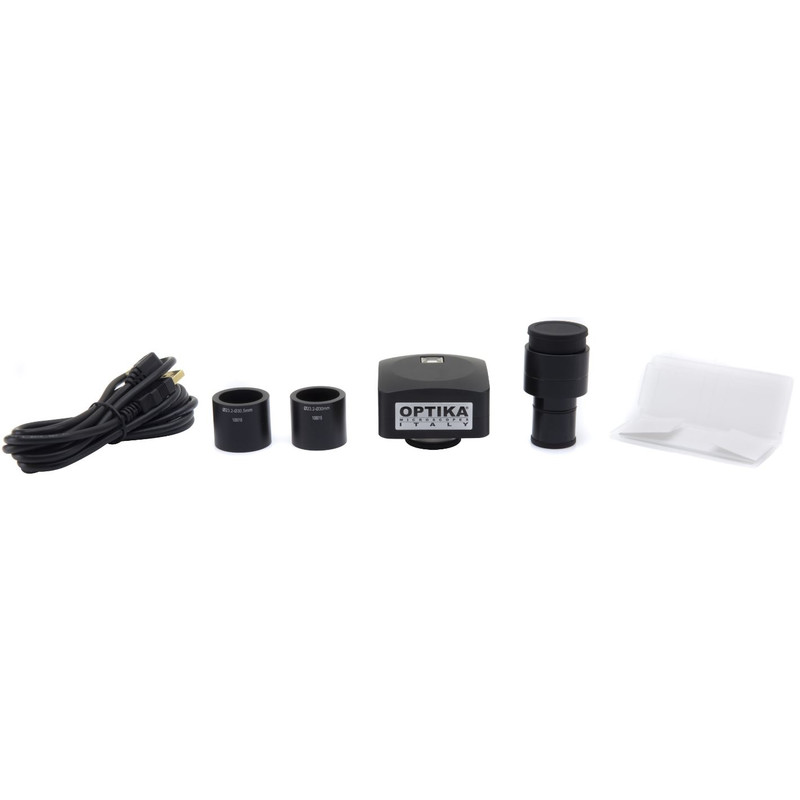

ACCESSORIES
Optical adapters 0.5x (for 23 mm eyepiece tube)
Adapters for Binocular & Monocular microscopes: 30 mm & 30.5 mm diameter
Calibration Slide: YES
Always Included: 1.8 m USB cable
ENVIRONMENT SPECIFICATION
Working temperature: -10 up to +50°C
Storage temperature: -20 up to +60°C
Relative Humidity: 30% to 80%
Storage Humidity: 10% to 60%
Dimensions: 58 x 58 x 36.4 mm
Weight: 0.18 Kg
SYSTEM REQUIREMENTS
Operating System: Win XP / Win Vista / Win 7 / Win 8 / Win 10 (32 o 64 bit) OSx (Mac OSx) starting from 10.7.5 Linux
PC Requirements CPU: Equal to Intel Core2 2.8GHz or higher RAM: 2 GB or more USB port: USB 2.0, at least two ports
