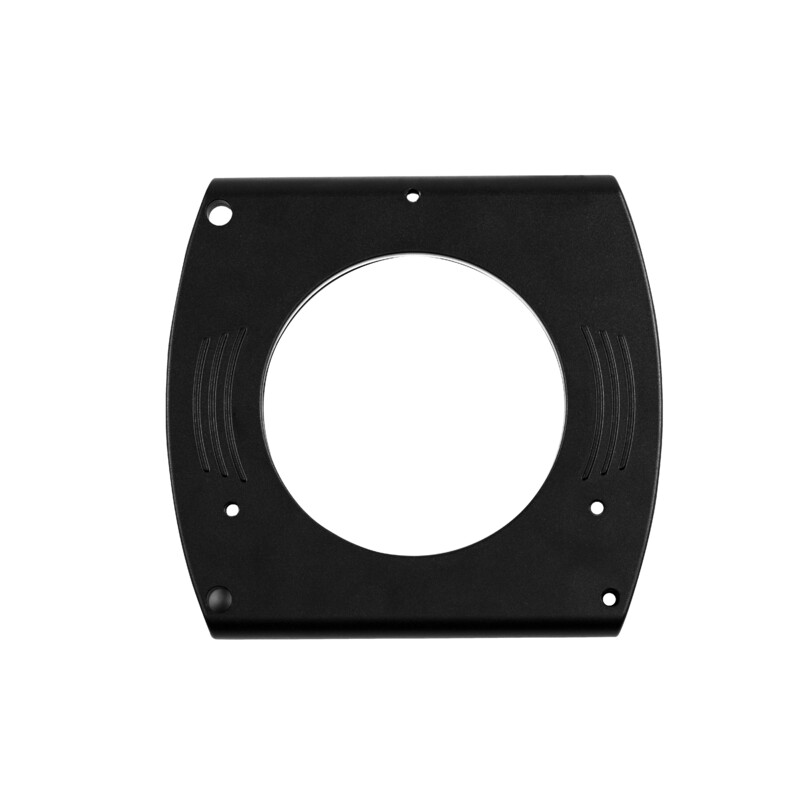

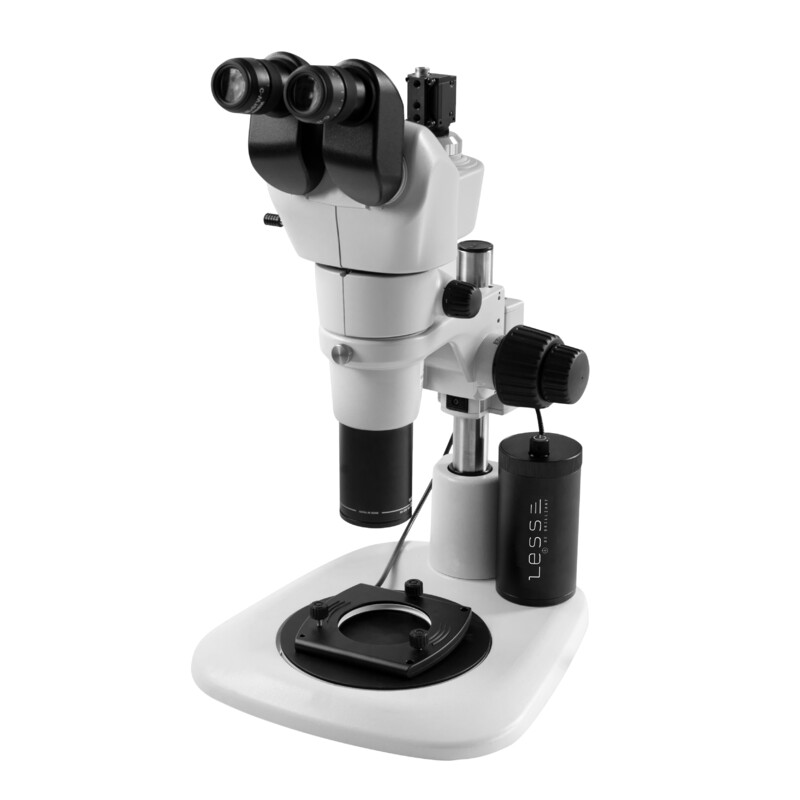

Dedicated to the inspection of surfaces and contours, the VisiDark range of lights offers an exceptional speed of detection thanks to the great directionality of its light. The inspection of samples can be done with the naked eye, or under a microscope for a more detailed inspection. The working distance is adjustable from a dark field to a grazing light configuration.
VisiDark is the revolution in darkfield illumination: this configuration directionally offers powerful and precise light to the study sample. More than ever, grazing light provides high contrast images, accentuating sample edges and surface details. The ability to vary the intensity reveals all key visual information of the sample, regardless of the material, transparent or opaque, reflective or matte, and inspection for deposits or impurities is optimal. In addition, the absence of heat generated by the ringlight does not affect neither the observation nor the sample.
The uniformity and directionality of L.E.S.S. light are unique. These properties offer unprecedented inspection comfort by accentuating contrasts, reducing stray light reflections, and, consequently, reducing eye fatigue. To meet the standards of the most demanding markets, the VisiDark range is available in two temperatures with VisiDark One at 5400°K and VisiDark Plus at 6500°K, both offering exceptional color rendering index (CRI > 90).

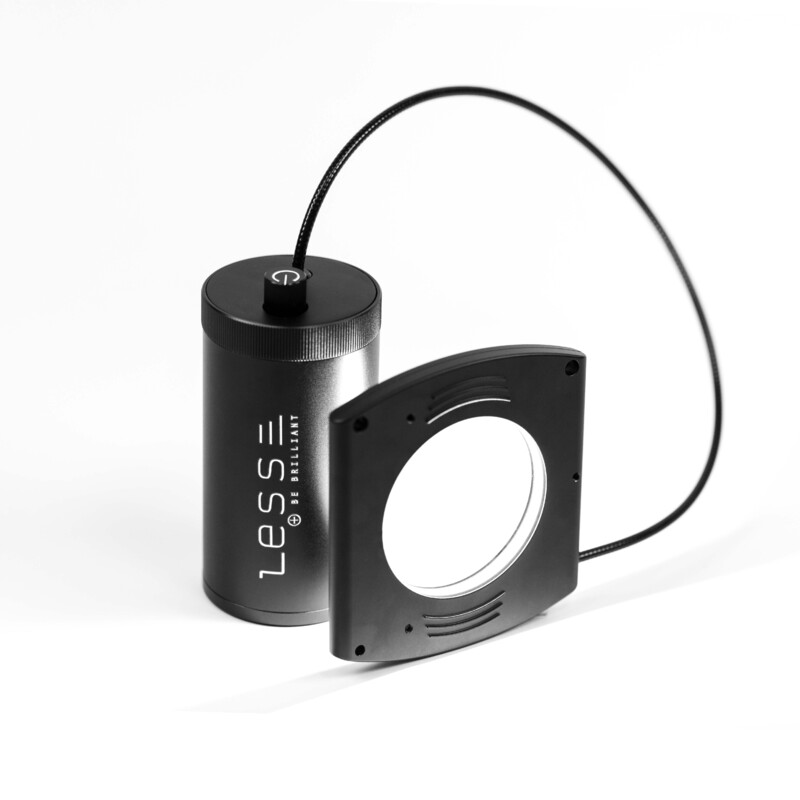

Product is shipped with its power supply.
Additional information
Weight: 0.9 kg
Dimensions: 28 × 23 × 13 cm
Reference: VD-MI, VDP-MI
Product line: Microscopy lighting
CRI: >90
Lifetime: > 20 000 hours*
Dimension of the control unit: Ø72 × 149.5 mm
Light intensity control: 0 – 100%
Operating temperature: 0 – 40 °C
External power supply: DC 12V
Dimension ext. power supply: 174 x 78 x 21.5 mm
Working distance: 0 – 15 mm
Inner diameter: 78 mm (3.1 inches)
Interface adapter: 78 mm (3.1 inches)
Cable: Flexible – 500 mm
Power control: On/Off switch
Colour Temperature: VisiDark ONE 5400K, VisiDark PLUS 6500K
* The lifetime of the lighting is defined during normal use. Results may vary depending on environmental conditions and/or specific customer use.
Electronic control unitBuilt-in
