Microscopio invertido AE2000 MET, trino, 50x-500x, LM, Darkfield, 100W

Name: Motic Microscopio invertido AE2000 MET, trino, 50x-500x, LM, Darkfield, 100W
Brand: Motic
Price: 8600 USD

$ 8.600,00 IVA incluido, más gastos de envío

¿demasiado caro?

Amarillo
facturable en 1-2 semanas + Tiempo transporte

Añadir a la cesta

Preguntas sobre el producto?

asesoramiento para Microscopios

Descripción del producto

Más información sobre la serie AE2000 MET...

La descripción de este producto no está disponible en español. Esperamos que la versión en inglés le sea de utilidad. En cualquier caso, sentimos las molestias.

AE2000MET

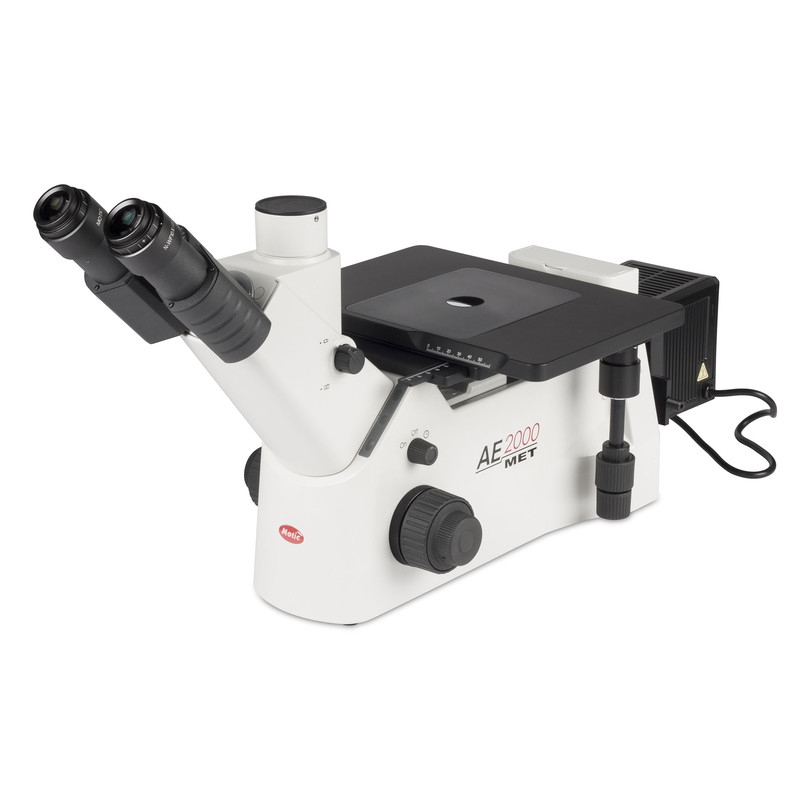

Inverted Metallurgical Microscope

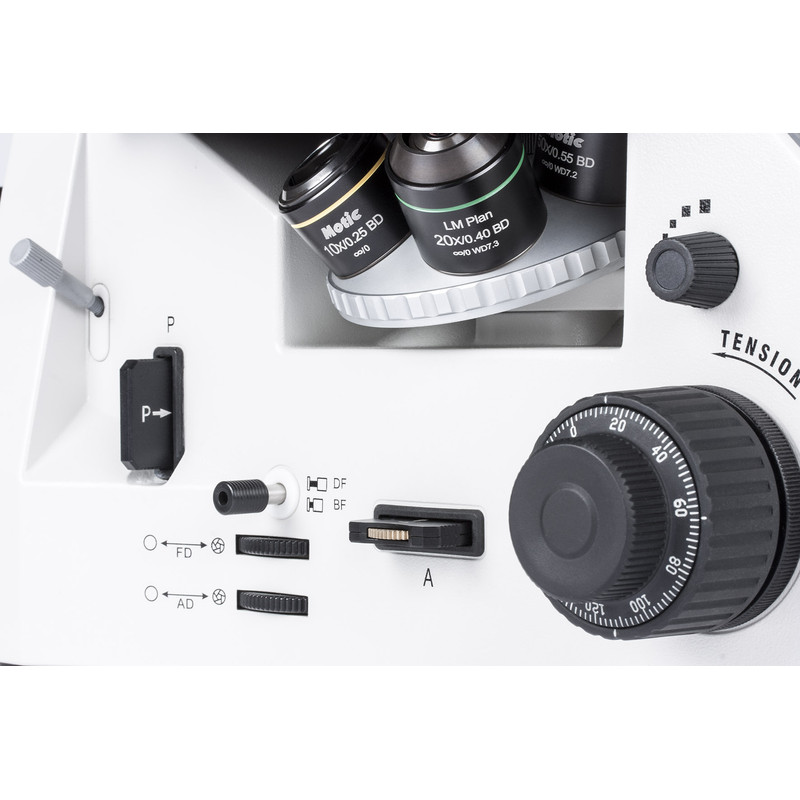

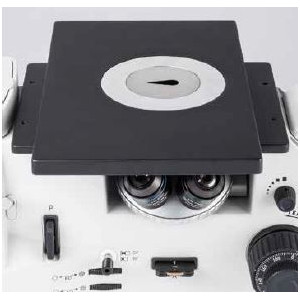

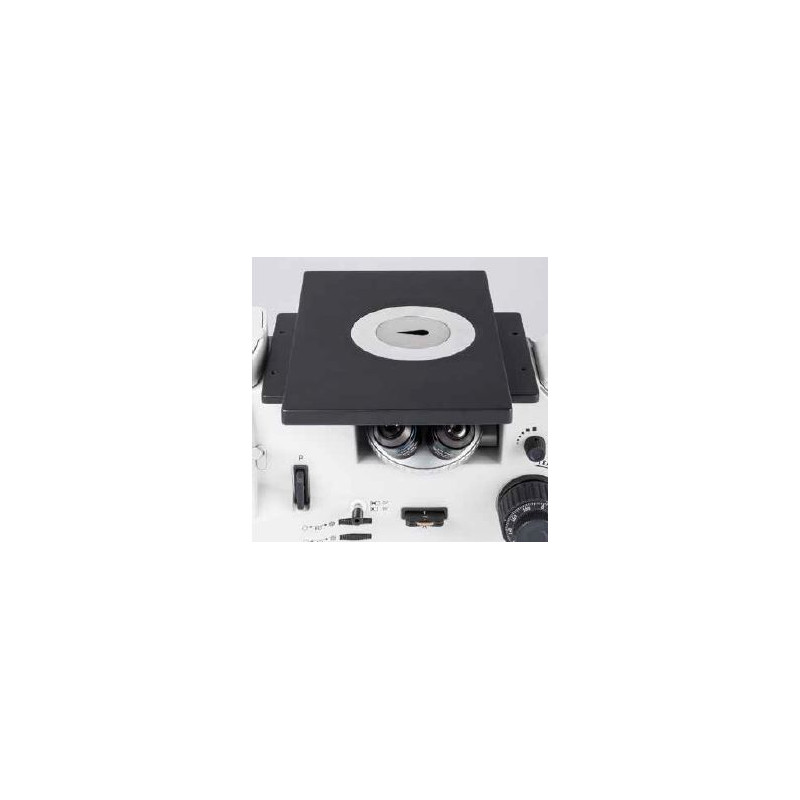

The AE2000-MET Inverted metallurgical microscope is especially designed for large, opaque samples in industrial inspection. Heavy specimen from automotive industry can perfectly be treated, as focusing of the sample is done by the 5-fold nosepiece. The smooth movement of the 3-plate stage allows a

precise positioning. Highlight of this microscope system is a complete series of LM Plan Achromatic objectives. This set delivers excellent images with high contrast and resolution in Bright field as well as in Dark field use.

All BF objectives from BA310-MET series can also be used without restrictions in optical performance. The powerful 50W Halogen light source gives plenty of resources for light consuming methods like Darkfield and POL contrast. An implemented “AUTO-OFF” mode turns off the illumination after 15 minutes.

An exemplary manufacturing quality guarantees a long lifetime of the instrument even under rough conditions of an industrial manufacturing process.

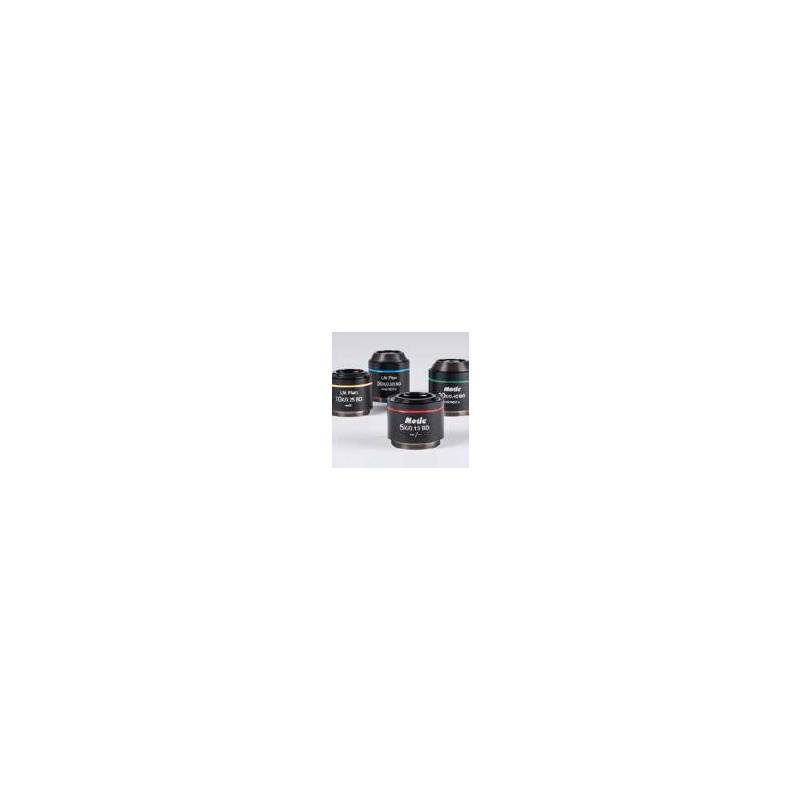

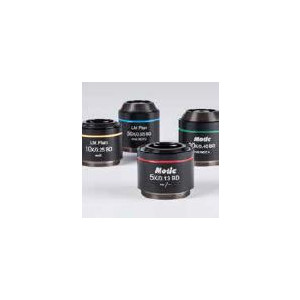

Highlight of this microscope system is a complete series of LM Plan Achromatic BF/DF objectives.

Especificaciones

Sistema óptico

Aumento

500

Ocular

Tipo de objetivo

Planacromático (Corrección a infinito, CCIS LM plan acromático, DIN 45 mm; 5x/013 (WD 20,3 mm), 10X/0,25 (WD 17,5 mm), 20X/0,4 (WD 8,1 mm), 50X/0,55 (WD 8,4 mm))

Iluminación
