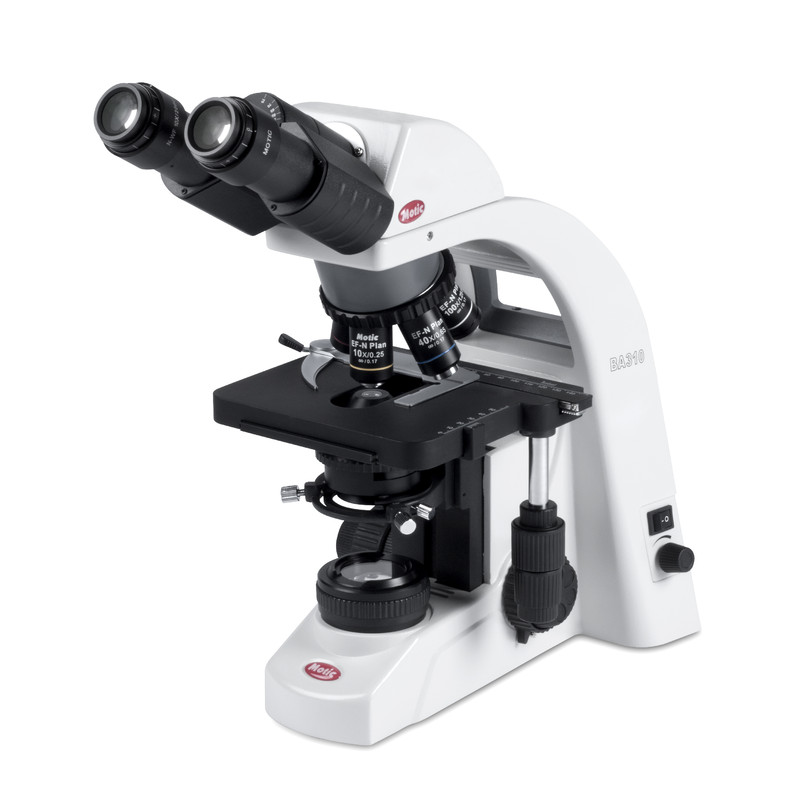

Ba310LED bino
- Optical system Colour Corrected Infinity Optical System (CCIS®)
- Observation tube Binocular head, Siedentopf type, 360º swiveling
Inclination 30º inclined, 360º rotating
Interpupillary distance 48-75mm
Diopter adjustment On both eyepieces, +/- 5 diopter
Eyepieces Widefield N-WF10X/20mm with diopter adjustment
Nosepiece Reversed quintuple
Objective classification CCIS® EC Plan Achromatic, DIN
Objectives
-4X/0.10 WD 15.9mm
-10X/0.25 WD 17.4mm
-40X/0.65/S WD 0.5mm
Objective mounting thread W 4/5"x1/36" (RMS standard)
Stand type Upright

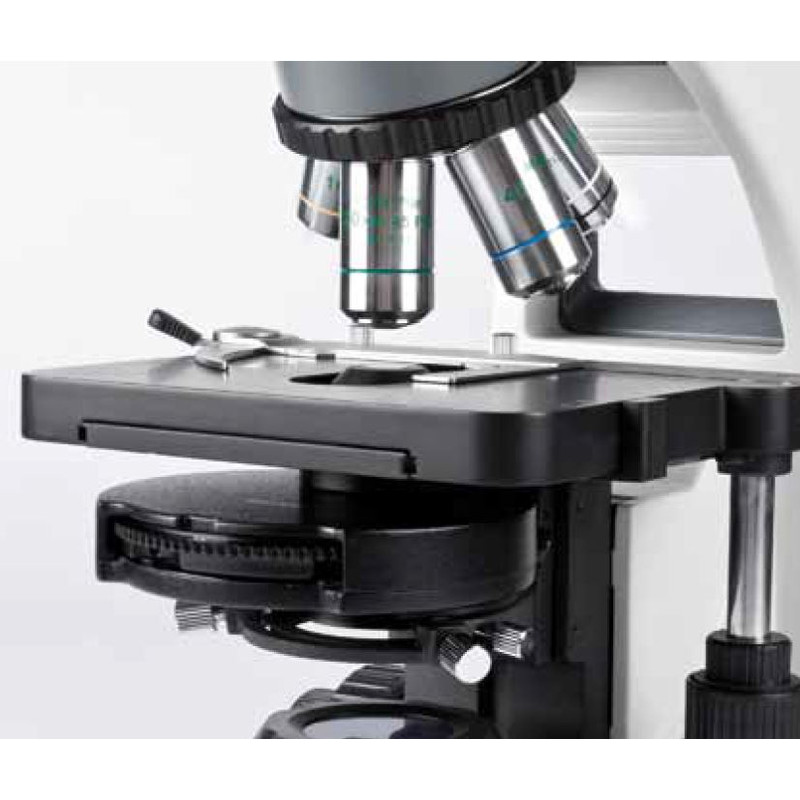

Stage Mechanical stage with built-in low position rackless coaxial stage control with tension adjustment and sample holder
Stage size 180x170mm
Travel range X&Y 80x55mm
Condenser Focusable and centerable Abbe condenser N.A. 0.90/1.25 with slot for contrast sliders
Diaphragm Iris diaphragm
Focus mechanism Coaxial coarse and fine focusing system with tension adjustment
Fine focus precision 2µm
Focusing stroke 20mm
Upper limit stop Upper limit stop preset but adjustable
Filter holder On top of the illuminator with fixing cap
Transmitted illumination Koehler Quartz halogen 6V/30W with intensity control
Illumination interchangeability Quartz halogen 6V/30W or LED 3W
Transformer Internal
Power supply 100-240V (CE)
Accessories included
- Dust cover
- power cord
- Hex key
- blue filter
- spare fuse
- cord hanger,
- humb screw
Dimensions LxWxH 400x220x400mm
Net weight 8.6kg
