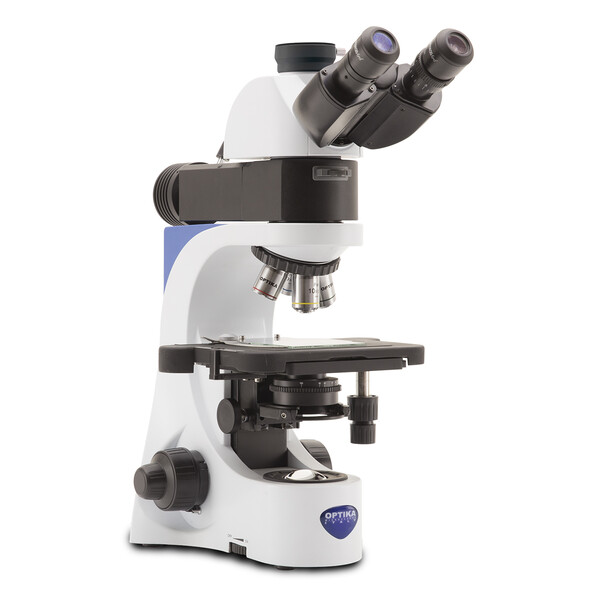

B-383MET
Observation mode: Brightfield, incident polarized light.
Epi-illumination and polarizing filters: X-LED3 with white 3.6 W LED (6.300 K) with brightness control. Field and aperture diaphragms, polarizer & analyzer filters.
Head: Trinocular (fixed 50/50), 30° inclined, 360° rotating.
Interpupillary distance: Adjustable between 48 and 75 mm.
Dioptric adjustment: On the left eyepiece tube.
Eyepieces: WF10x/20 mm, high eye-point and secured by screw.
Nosepiece: Quintuple revolving nosepiece, rotation on ball bearings.
Objectives (strain-free): IOS W-PLAN MET
- 5x/0.12, W.D. 15.5 mm
- 10x/0.25, W.D. 10 mm
- 20x/0.40, W.D. 5.8 mm
- 50x/0.75, W.D. 0.32 mm
All with anti-fungus treatment.
Specimen stage: Double layer rackless mechanical stage, 233×147 mm, 78×54 mm X-Y range. With tempered glass plate. Focusing: Coaxial coarse (adjustable tension) and fine focusing
mechanism with limit stop to prevent the contact between objective and specimen.
Condenser: Abbe N.A. 1.25, with objective-coded iris diaphragm, focusable and centerable.
Transmitted illumination (Fixed Koehler type): X-LED3 with white 3.6 W LED (6.300 K) with brightness control. Multi-plug 100-240Vac/6Vdc external power supply.
