Included components:
SZX7
The Galilean optical system of the SZX7 is outstanding in its class, especially when digital imaging is required. The SZX7 provides high-resolution images of up to 600 linepairs per millimeter with high color fidelity thanks to its advanced infinity-corrected optics and an impressive 7:1 zoom ratio with 0.8x to 5.6x range. The flexible modular design with a broad range of available objectives guarantees outstanding working distances. Rapid and comfortable observation is ensured by the new ComfortView eyepieces, and the ergonomic design promotes productivity and quality in routine applications. The universal LED illumination stand brings together all the advantages of LED technology.
Galilean Optical System
The Galilean optical system employs two (right/left) independent and parallel zoom optical paths, ensuring both superior optical performance and high system modularity.Careful selection of lens surface coatings and apochromatic zoom optics make it possible to observe and document specimen in more similar coloration to their original authentic colors.
Wide 7:1 Zoom Ratio
Covering a zoom magnification range of 8x-56x with its 1x objective, and offering up to 112x magnification with a 2x objective, the SZX7 macro-to-micro versatility makes it ideal for a wide range of routine observation and inspection tasks.
Choice of High-Performance Objectives
The DFPlan series combines high-NA resolving power and working comfort with "distortion-free" optical design for exceptionally flat imaging, and includes a 2x objective lens with an NA of 0.2 for high-resolution imaging at 600 linepairs per millimeter. DFPL2x/ DPFL1.5x/ DFPL 0.75x/ DFPL 0.5x
The DFPL series of objectives accurately reproduce specimen shapes with outstanding color fidelity. DFPLAPO 1.25x/ DFPLAP01x-4 Apochromatically corrected to achieve the highest degree of performance, Excellent in resolving power, contrast, and image flatness with minimum distortion.
SZX-ACH1.25x/ SZX-ACH1x. Well-balanced objectives that combine high resolving power with long working distance (90mm with 1x).
Digital Imaging and Documentation
The SZX7 can also be equipped with a trinocular tube and Olympus DP series digital camera for high-resolution imaging and research documentation. DP series cameras offer the high sensitivity for a wide range of applications, including high-sensitivity fluorescence imaging, and can be easily controlled using Olympus cellSens software.
ComfortView Eyepieces for Reduced Eyestrain
Quick, comfortable observation is ensured by this exclusive eyepiece design featuring pupil aberration control and appropriate positioning of the eye point. Also, superior optical coatings render true color images with fine detail.
Ergonomic Observation Tube and Extendable Eyepoint Adjuster
Olympus’ long tilting trinocular tube (SZX2-LTTR) improves the ergonomics of our stereo microscopes. This trinocular can be adjusted from 5 to 45 degrees to facilitate a more natural head and neck position while working. In addition, the eyepoint adjuster (SZX2-EEPA) enables users to raise or lower the eyepoint within a 120 mm range to accommodate users of different heights. The combination of these ergonomic components helps reduce stress and fatigue by keeping users in a more natural posture while they’re working.
Quick Magnification Recall
Many inspection and documentation tasks require the use of a known zoom magnification setting to ensure consistent and comparable results. The integrated click-stop mechanism provides quick and easy access to this important function.

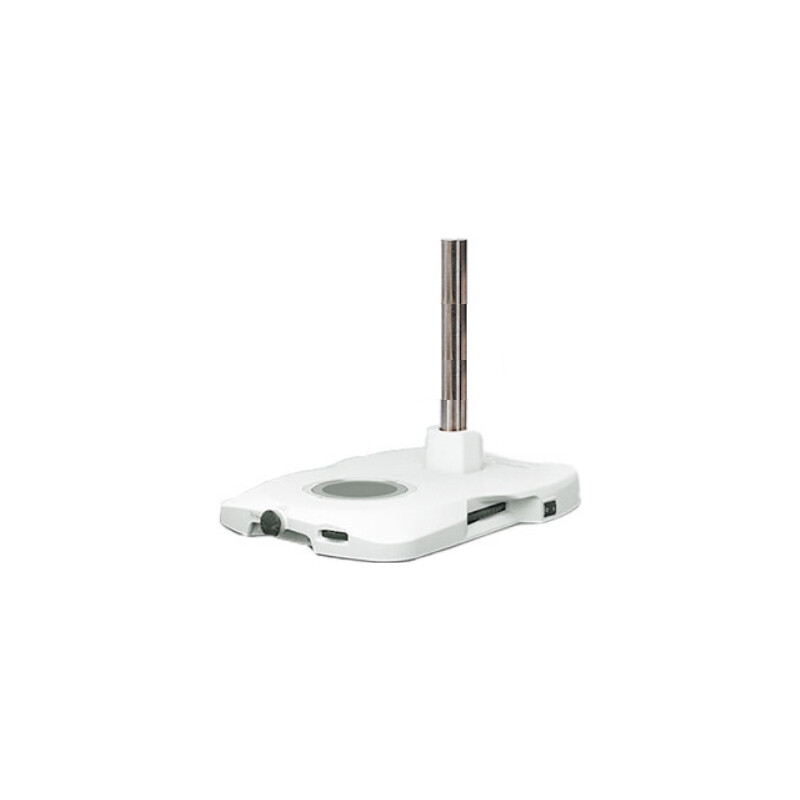

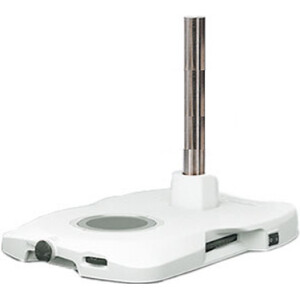

Comfortable LED Illumination Base
The universal reflected/transmitted light LED illumination stand brings together all the advantages of LED technology. The flat, high-brightness LEDs allow successful integration of transmitted illumination into a very slim base, which in turn facilitates easy specimen access and manipulation.
Electrostatic Discharge Protection
The main body and major accessories can quickly eliminate static electricity with the use of antistatic materials and coatings. This prevents a specimen under observation from electrostatic damage.
Easy on the Eyes: User Comfort is Where Precision Performance Begins
The SZX7 stereo microscope from Olympus is easy to use and delivers outstanding optical performance so that users are comfortable performing imaging tasks from advanced research toroutine inspections.
The microscope's Galilean optical system, previously restricted to more specialized microscopes, offers the best zoom ratio in this class, as well as outstanding image clarity, true color, and accurate reproduction of the original specimen in crisp, well-defined detail.
The SZX7 can be customized using a range of accessories to accommodate a variety of specimen types and sizes.
Quality Optics for Consistently Superior Image Reproduction
Clear, accurate specimen observation without strain. With its smooth finish, apochromatic zoom optics, ComfortView eyepieces, and easy adjustability, the SZX7 minimizes strain and fatigue while fulfilling the key mission of Olympus microscope designers—to provide the optimal image for any specimen. The performance of the high-level Galilean optical system is complemented by much less distortion than before with high numerical aperture. The SZX7 microscope body is manufactured using newly developed lead-free optics, demonstrating Olympus' commitment to protect the environment
7:1 Wide Zoom Ratio
With a magnification range of 8X–56X (using a 1X objective/10X eyepieces), the SZX7 offers a zoom ratio of 7:1. This is the best in its class and enables a specimen to be observed at the most appropriate magnification.
Excellent Resolving Power
High-quality objectives deliver accurate, high-resolution images that show specimens in minute detail.
A Range of Objectives to Suit Every Specimen and Every Application
- Superior Image quality with high resolution and excellent flatness: The new DFPLAPO1X-4 objective provides excellent optical performance, with plan apochromat correction and an NA of 0.10.
- Longest working distance (W.D.) in this class: Objectives range from the SZX-AC H1X (90 mm W.D.) to the DFPL0.5X-4 (171 mm W.D.). As a result, difficult to access surfaces can be easily observed.
Accurate Color Reproduction
Careful selection of lens surface coatings and apochromatic zoom optics make it possible to observe and document specimens with accurate color reproducibility.
ComfortView Eyepieces for Greater Comfort and Faster Work
New ComfortView eyepieces feature pupil aberration control and appropriate positioning in the eye point for fast and comfortable observations. The result is a field of view that is easy to find,
comfortable to view, and easy to keep.
Convenient Front-Access Operation
Improved access to the most frequently used knobs and controls maximizes operator comfort and reduces neck and back strain.
Quickly Recall Magnification Settings via Click-Stop Mechanism
Many inspection and documentation tasks require the use of a known zoom magnification setting to ensure consistent and comparable results. The integrated click-stop mechanism provides quick and easy access to this important function.
