Mikroskop AM7115MTF, 5MP, 10-70x, 8 LED, 30 fps, USB 2.0

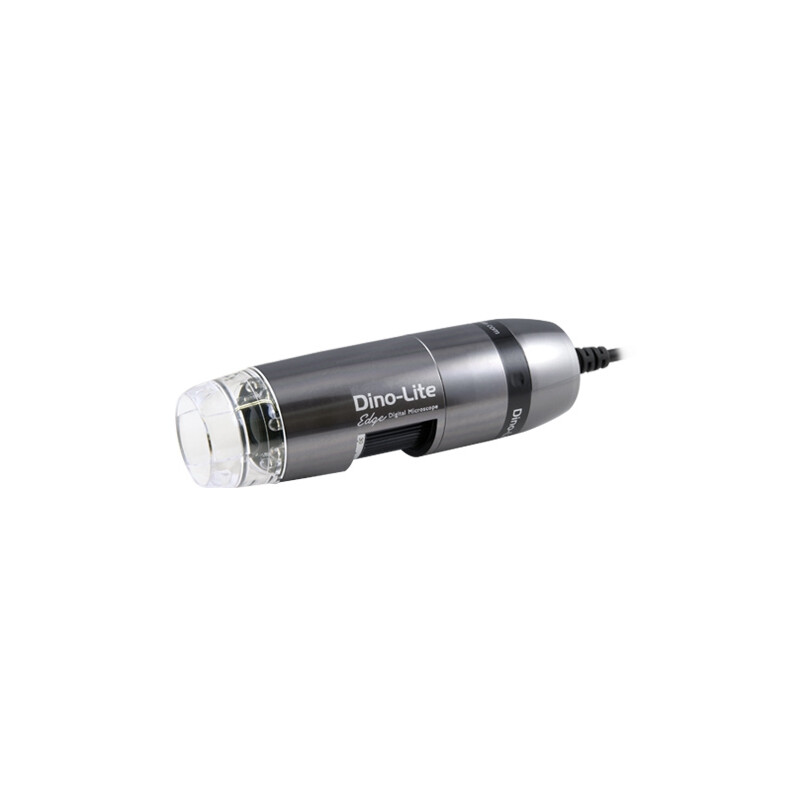

Dino-Lite AM7115MTF

When abundant space between the target and the microscope is a must, use Dino-Lite 5MP AM7115MTF extra-long working distance digital microscope. AM7115MTF offers high resolution images and up to 70x magnification at a 108mm working distance.

Specifications

Model:

• AM7115MTF Dino-Lite Edge

​Interface:

• USB 2.0

​Product Resolution:

• 5MP (2592x1944)

​Magnification:

• 10x-70x

​Frame Rate:

• 10fps in 5MP/3MP/2MP, MJPEG
• 25fps in 1.3MP, MJPEG
• 30fps in VGA, MJPEG

Saving Format Image:

• DinoCapture2.0: BMP, GIF, PNG, MNG, TIF, TGA, PCX, WBMP, JP2, JPC, JPG, PGX, RAS, PNM
• DinoXcope: PNG, JPEG

Saving Format Video:

• DinoCapture2.0: WMV, FLV, SWF
• DinoXcope: MOV

​Lighting:

• 8 white LEDs

​Microtouch:

• Yes

​Operating System Supported:

• Windows XP/7/8/10/11; macOS 10.14 or later

System Requirements

• Intel Core2 Duo @ 2.20 GHz/AMD Athlon X2 Dual Core BE-2400 (2.3GHz)
• 20GB available HD space
• 2GB available RAM or more
• 512MB video card or more
• CD-ROM drive for installation
• USB 2.0

​Calibration Function:

• Yes

​Measurement Function:

• Yes

​Unit Dimension:

• 10.5cm (H) x 3.2cm (D)

Unit Weight:

• 125g
