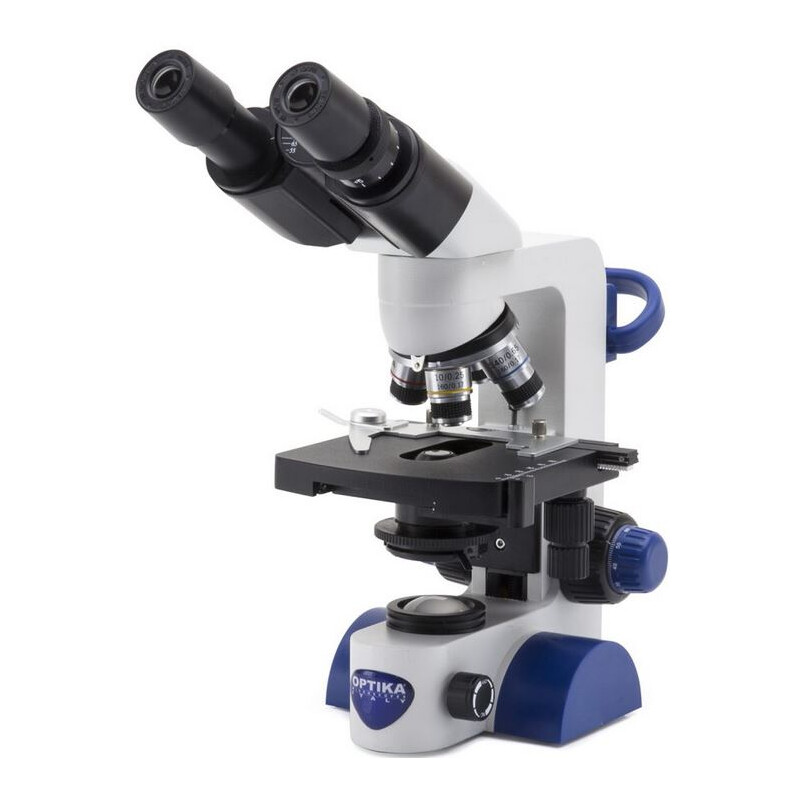

B-67
Observation mode: Brightfield.
Head: Binocular, 30° inclined; 360° rotating.
Dioptric adjustment: Left eyepiece.
Eyepiece: WF10x/18 mm, secured by screw
Nosepiece: Quadruple ball bearings revolving nosepiece, reversed.
Objectives:
– Achromatic 4x/0.10, with anti-fungus treatment
– Achromatic 10x/0.25, with anti-fungus treatment
– Achromatic 40x/0.65, with anti-fungus treatment
– Achromatic 60x/0.85, with anti-fungus treatment
Specimen stage: StagErase™ eraseable mechanical stage, 125×125 mm, 62×24 mm X-Y movement range. Vernier scale on the two axes, accuracy: 0.1 mm.
Focusing: Coaxial coarse and fine focusing mechanism with limit stop to prevent the contact between objective and specimen.
Condenser: Abbe N.A. 1.25, pre-centered, focusable, with iris diaphragm.
Illumination: 1 W LED built-in in the condenser, with brightness control.
Color temperature: 6,300 K. Multi-plug 100-240Vac/5Vdc external power supply.
