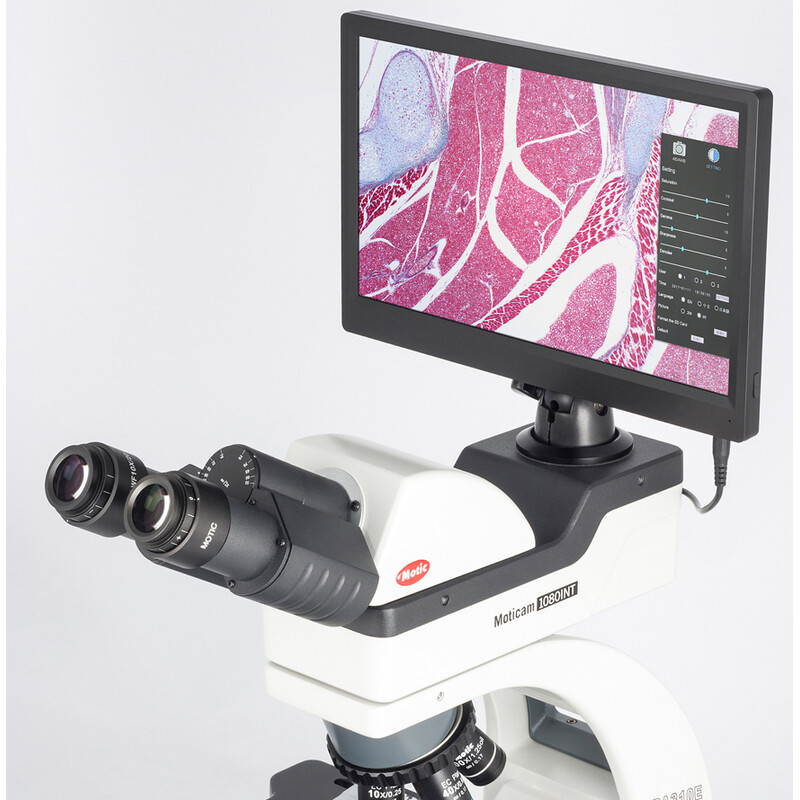

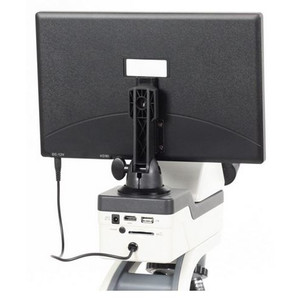

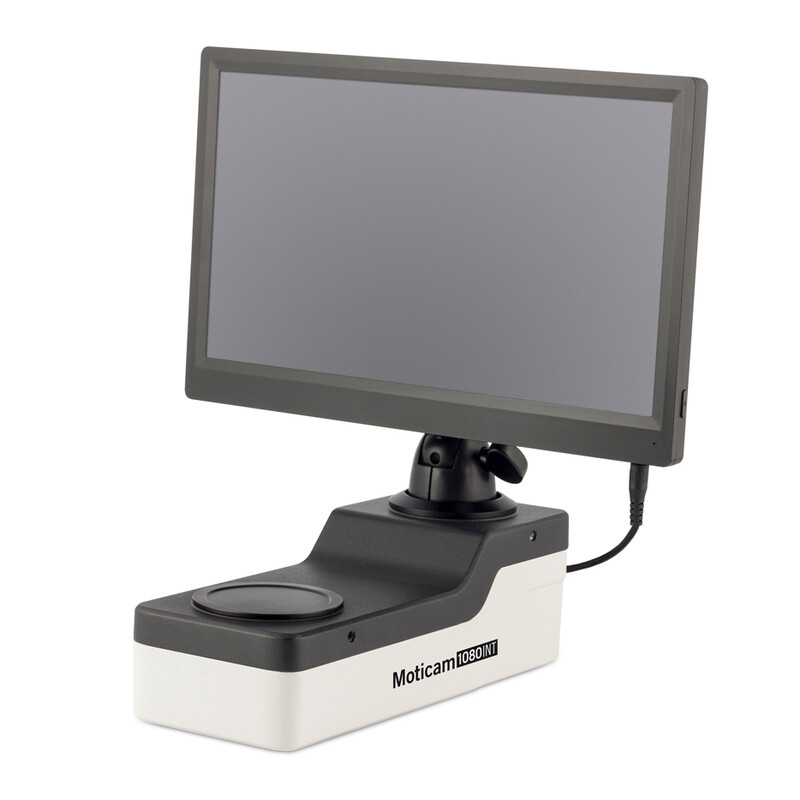

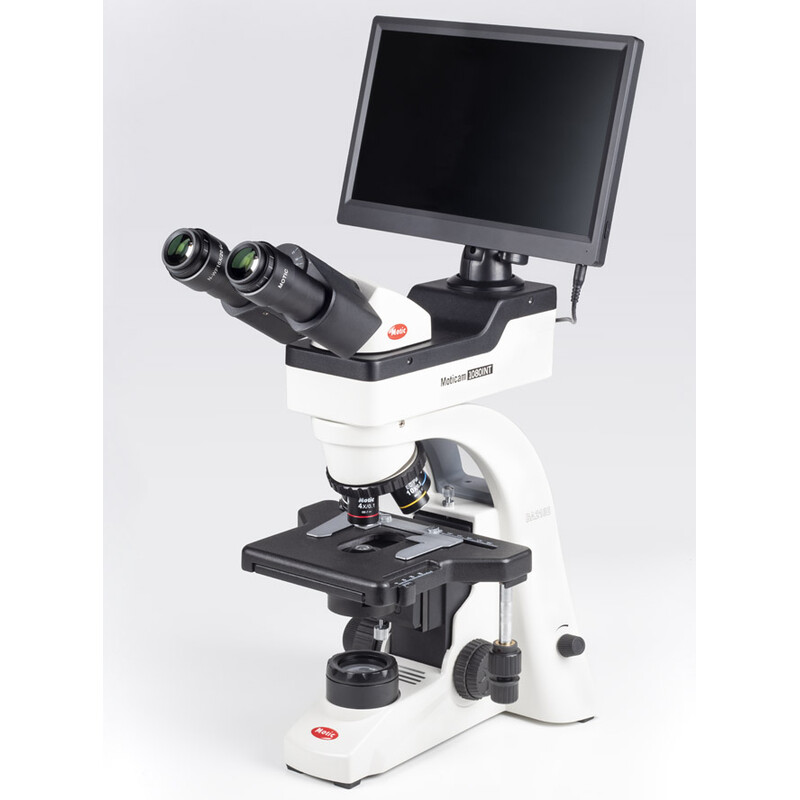

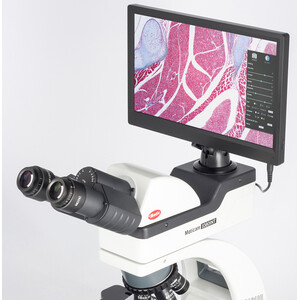

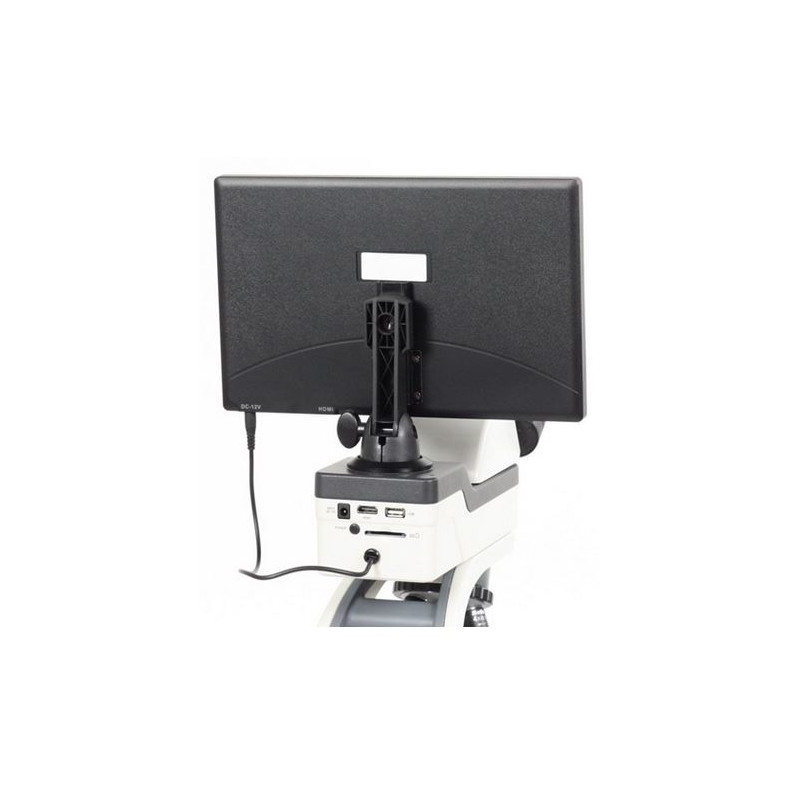

Moticam 1080 INT
- Intermediate digital camera for BA Series
- Sensor Type: CMOS
- Sensor Size: 1/2.8"
- Capture resolution (on SD-card) - Still Image: 8.0MP (3840 x 2160) / Video: Full HD 1920 x 1080
- Live Display Mode (through USB): 1920 x 1080 (Full HD) @ 30 fps
- Live Display Mode (through HDMI): 1920 x 1080 (Full HD) @ 60 fps
- Data Transfer: HDMI (1080p) and USB 2.0
- Screen: LCD 11,6" Full HD
- On-board software
- Supported OS: Microsoft Windows XP SP3/Vista/7/8/10 and MAC OSX & Linux
- Minimum Computer Requirements: 2GHz dualcore – RAM memory 2GB – Video
Specifications Moticam 1080 INT
Sensor type: CMOS
Sensor size: 1/2.8"
Imaging area: 5.346x3.003mm
Capture resolution: 8MP (3840x2160 pixels)
Image capture resolution (On SD-card): 8MP (3840x2160 pixels)
Video capture resolution (On SD-card): 1920x1080p (Full HD)
Live display mode through USB: 1920x1080 pixels (Full HD)
Live display mode through HDMI: 1920x1080 (Full HD)
Pixel size: 2.8x2.8μm
Scan mode: Progressive
Data transfer: HDMI (1080p), USB 2.0
Max. frames per second (fps) USB: 1920x1080 (Full HD) @ 30 fps, HDMI: 1920x1080 (Full HD) @ 60 fps
Exposure time: "0.06ms ~ 40ms with Auto Exposure mode, (0.06ms ~ 999ms with Manual Exposure mode)"
Operating temperature: From -10 to +60 Degrees Celsius non condensing
Max. signal to noise ratio: 40dB
Dynamic range: 71dB
Sensitivity: 0.51V (Typical at 1/30 sec)
Slot: SD Card (max 32Gb)
Buttons: On/Off
Supported device: TWAIN and Direct Show Driver
Supported systems: OS Windows XP SP3/Vista/7/8/10 and MAC OSX, Linux
Minimum computer requirements: 2GHz dualcore - RAM memory 2GB - Video memory min. 512 MB
Screen: 11.6" Native 1920x1080 pixels Full HD Screen with Bracket
Software: On-board software
Software Functions: Still image capture, live image record, zoom in & out, magnifier, ROI, mirror, rotation, split, freeze, cross line, gallery, Auto/Manual exposure, gain, target brightness setting, light frequency, Auto/Manual white balance Mode, saturation, contrast, gamma, sharpness, denoise, user settings, system’s time setting, language (English, Chinese and Japanese), format SD card.
Power supply: 12V (External Power supply)
Package includes: USB 2.0 cable, HDMI cable, Motic 4-dot calibration slide, Motic Images Plus 3.0 for PC/OSX/Linux, universal power supply
