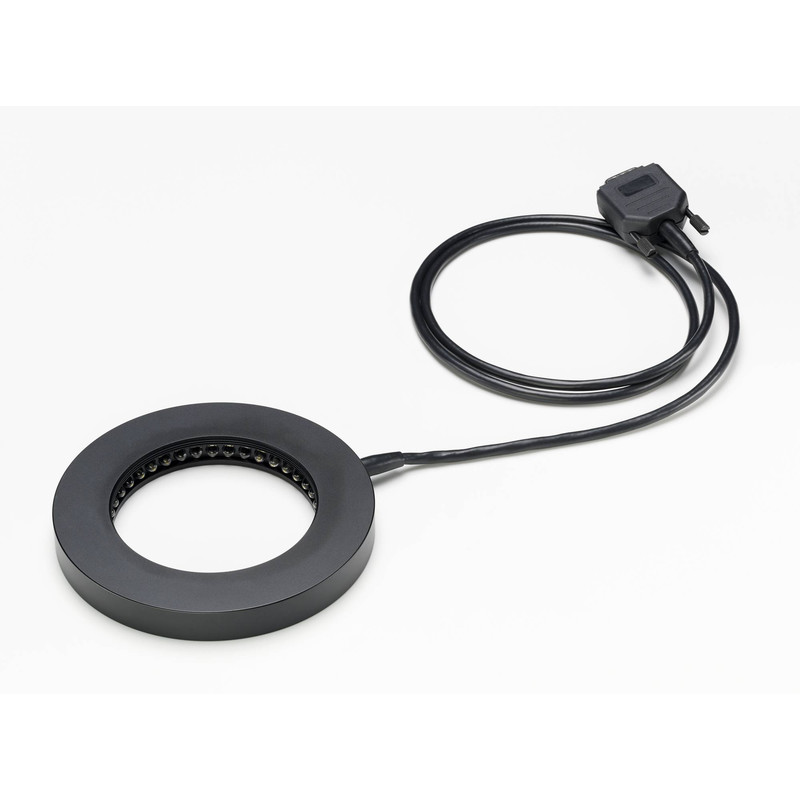

SCHOTT VisiLED Slim LED Ringlight
Focus optics rings for various working distance ranges The Slim Ringlight is a further innovative LED ringlight system, specifically developed for stereo microscopy to illuminate all types of objects in industrial and life science applications.
Due to its slim housing, it is optimal for unconfined object preparation and provides ample space for the usage with objective revolvers.
By simply exchanging screwable focus optics rings, three variable working distance ranges are possible for brightfield and darkfield illumination
Advantages:
- Easily adaptable to microscope objectives by means of thumb screws
- Homogeneous incident or oblique illumination
- Variable working distance ranges possible by exchange of focus optics rings
- Implementation of brightfield and darkfield applications

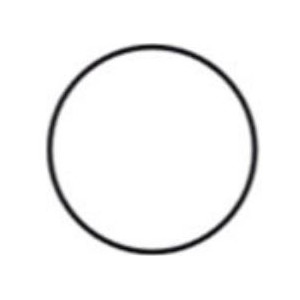

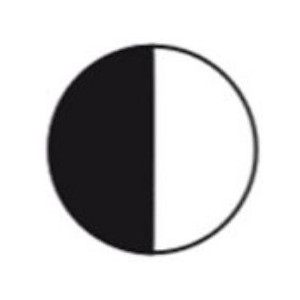

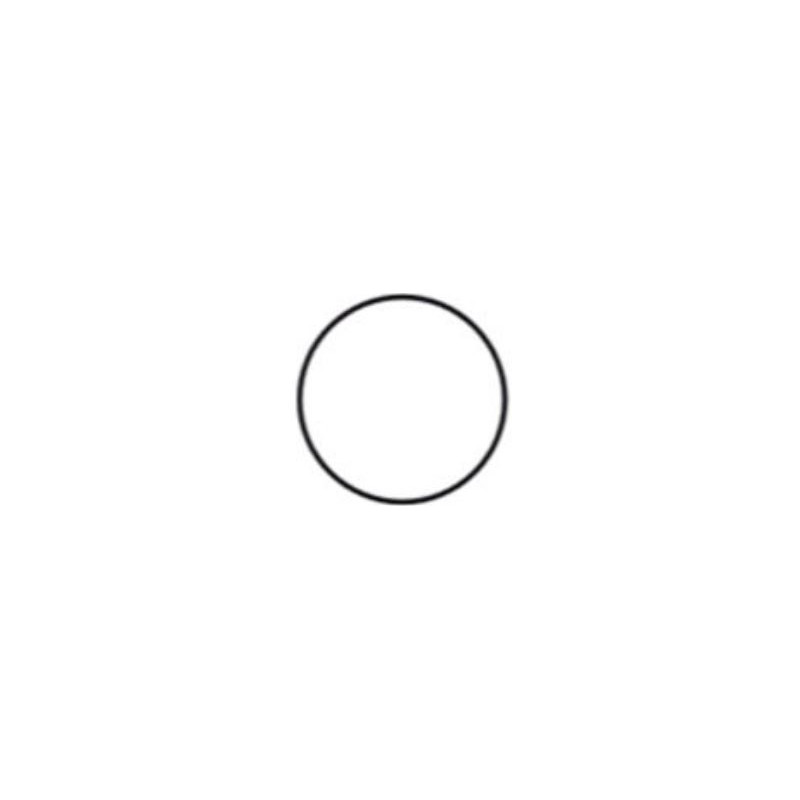

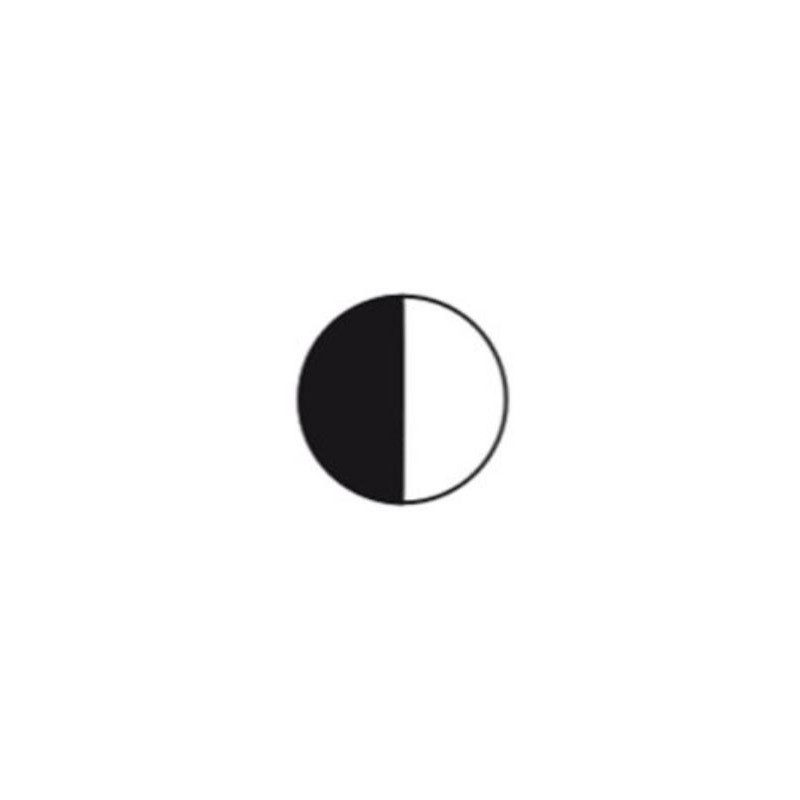

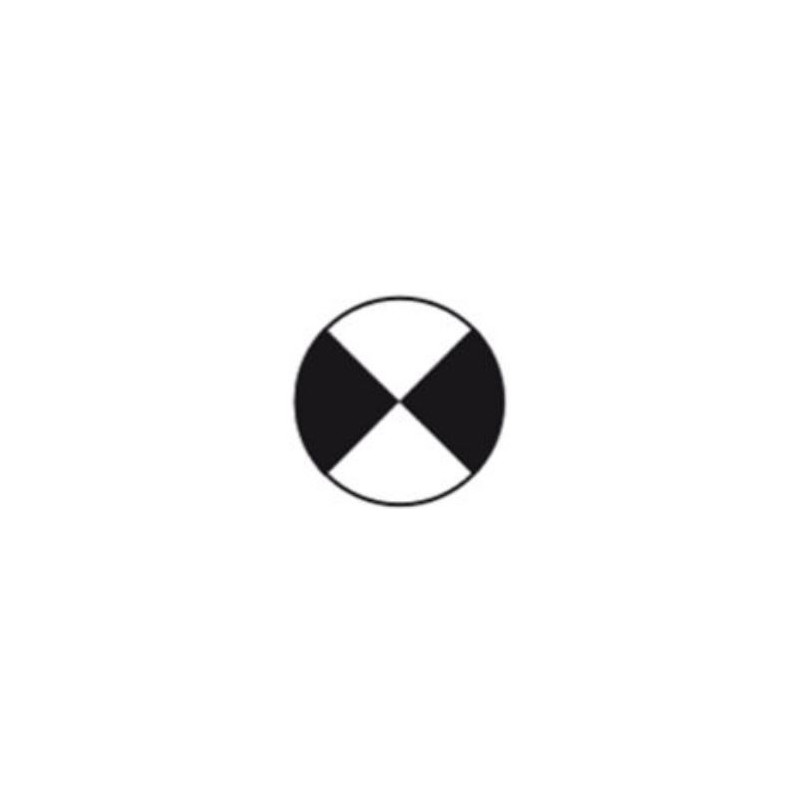

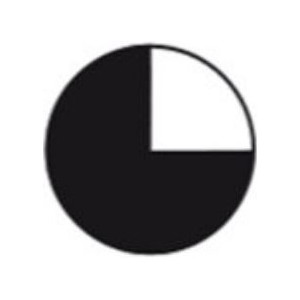

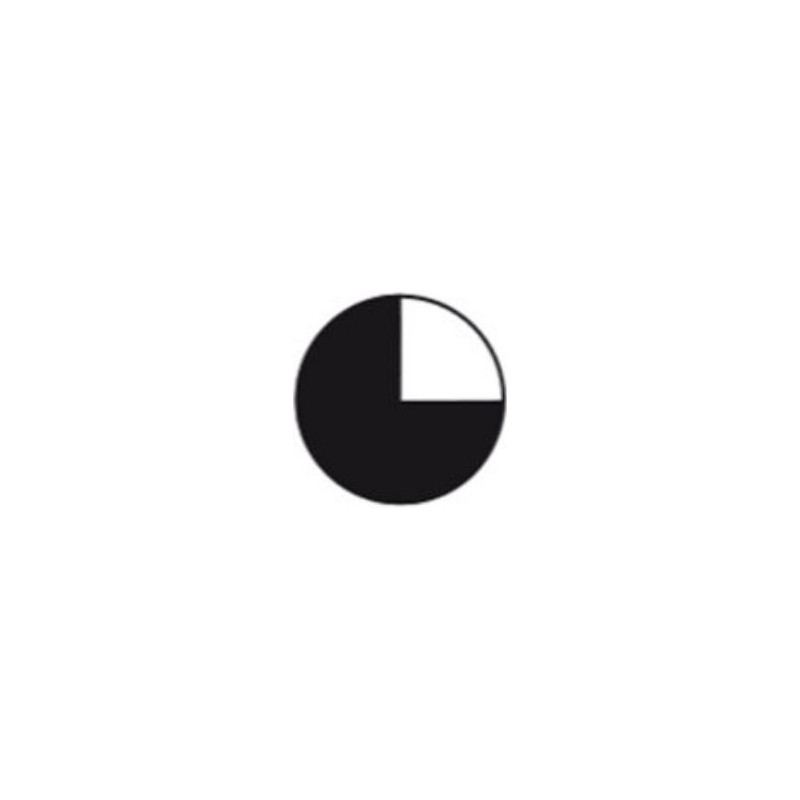

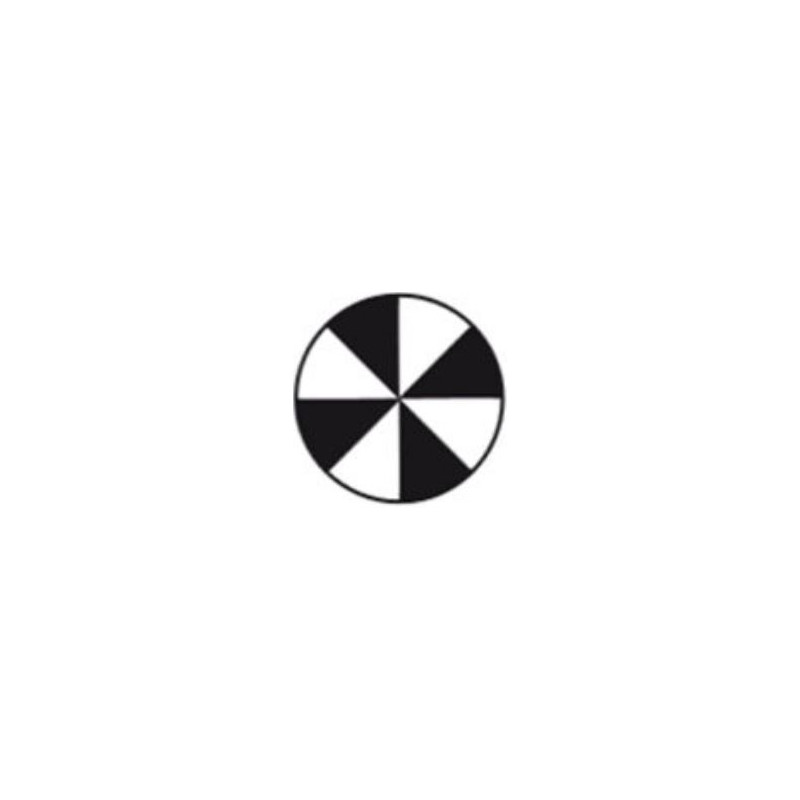

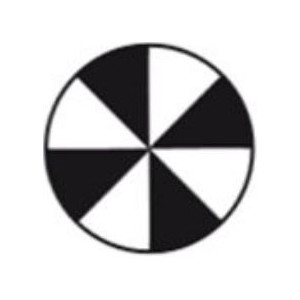

- Segments controllable in different preset modes
Benefits:
- Slim and space saving LED ringlight
- Optimal for unconfined object preparation or usage with objective revolve
Deacription:
- Free Working Distance: 40-90mm and 20-40mm; Focus optics rings for both working distance ranges are included
- Max. Illuminance: 65 kLx (at 50 mm FWD) 45 kLx at 25 mm FWD)
- Dimensions: outerØ: 82 mm/ innerØ: 66 mm/ height: 35.5mm and 67.5mm
