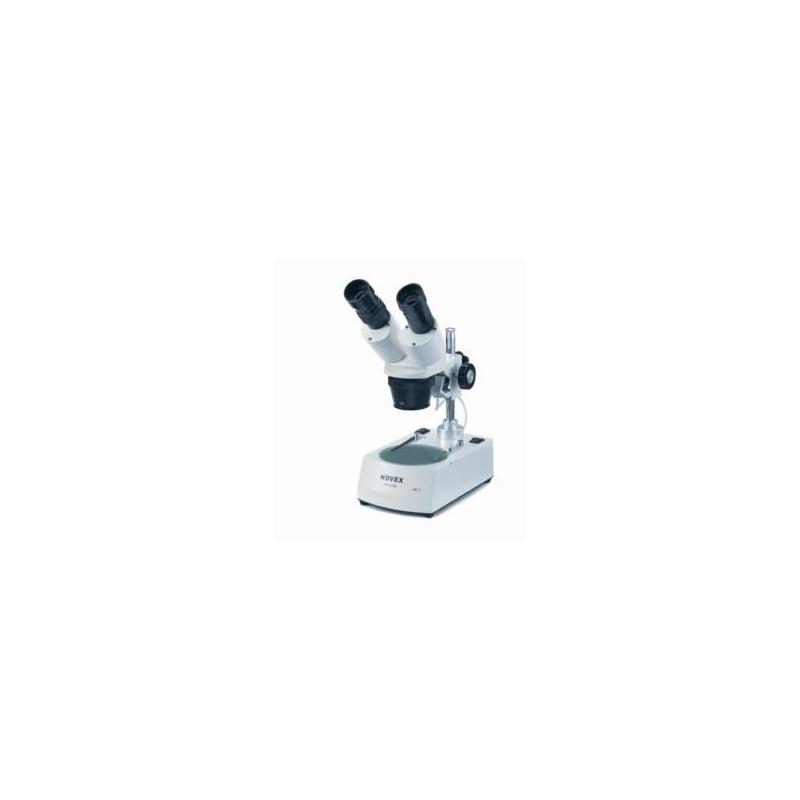

Novex stereomicroscope AP-7
- paired locked-in widefield eyepieces WF10x/20 with eye shades
- binocular 45° inclined tubes with diopter adjustment on one tube, interpupillary distance adjustable between 55 and 75 mm
- two objective pair 1x and 3x objectives, mounted in a revolvable nosepiece
Magnifications 10 and 30x and a field of view 20/6,7 mm. Other magnifications can be reached with the interchangeable widefield eyepieces WF 5x, WF 15x or WF 20x - the binocular head is vertically adjustable along the stand rod. Rack and pinion focusing with slip-clutch mechanism, range 40 mm. The flat stand base is provided with an interchangeable black-white stage plate, 2 object clamps and an additional transparent stage plate for transmitted illumination.
- incident and transmitted illuminator, 12 volt 10 watt. Built-in transformer 230 volt. Other voltages on request. Complete with on/off switch and 3-wire cable with plug
- complete with dust cover in Styrofoam case
