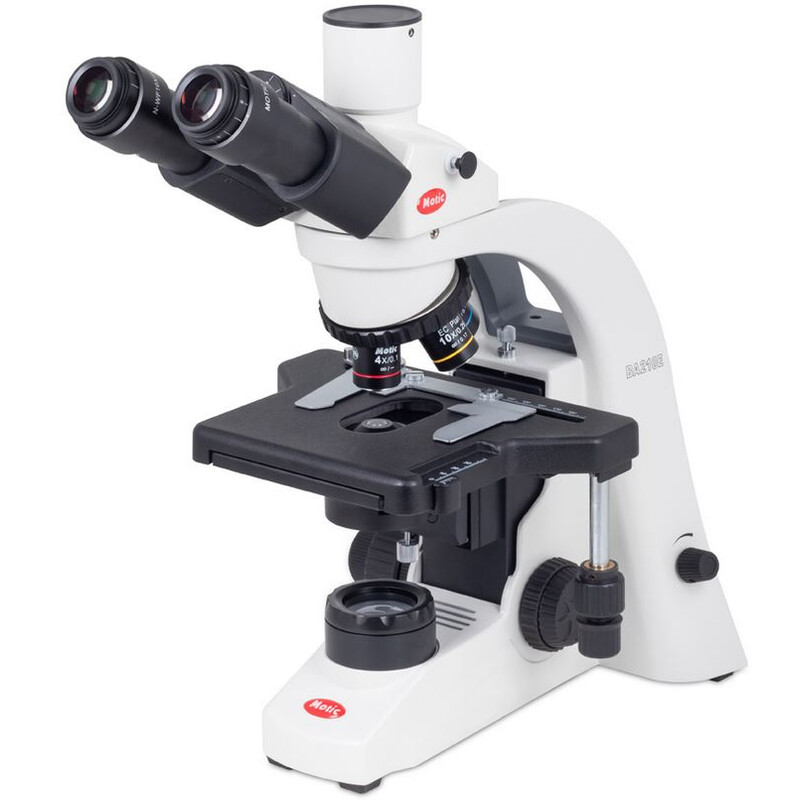

Microscopio BA210E trino, infinity, EC- plan, achro, 40x-1000x, Hal,

Name: Motic Microscopio BA210E trino, infinity, EC- plan, achro, 40x-1000x, Hal,
Brand: Motic
Price: 1630 USD

$ 1.630,00 IVA incl., più spese di spedizione

troppo caro?

a breve termine
spedibile in 1-2 settimane + Tempo di trasporto

aggiungi al carrello

Descrizione prodotto

Purtroppo, questa descrizione non è stato tradotto in italiano, in modo da trovare a questo punto una descrizione inglese.

Optical system Colour Corrected Infinity Optical System (CCIS®)

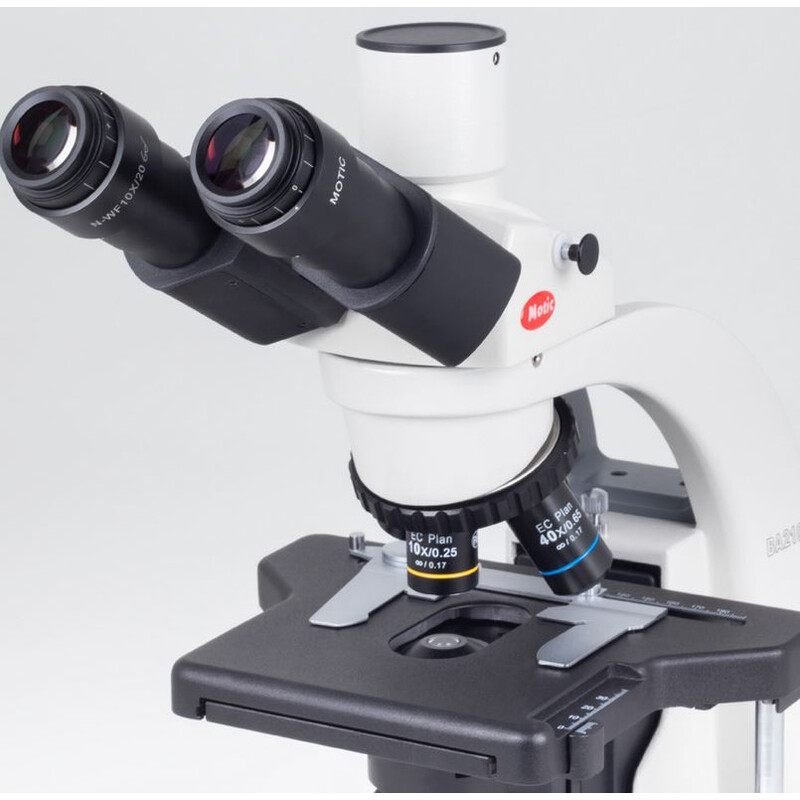

Observation tube Trinocular head, Siedentopf type
Inclination 30º inclined, 360º rotating
Interpupillary distance 55-75mm
Diopter adjustment On both eyepieces, +/- 5 diopter
Eyepieces Widefield N-WF10X/20mm with diopter adjustment
Nosepiece Reversed quadruple

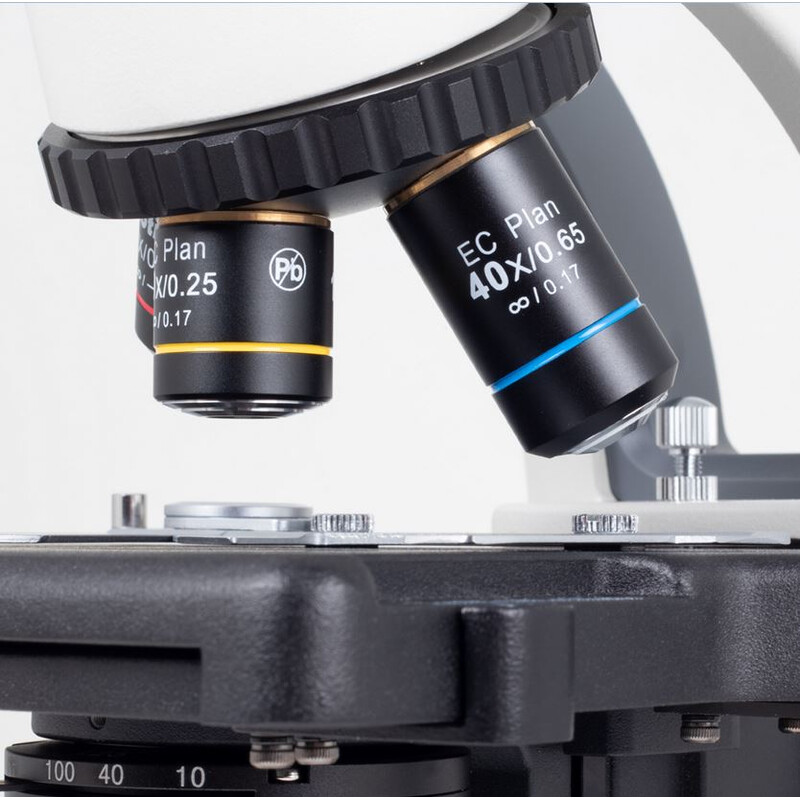

Objective classification CCIS® EC Plan Achromatic, DIN
Objective mounting thread W 4/5"x1/36" (RMS standard)
Stand type Upright

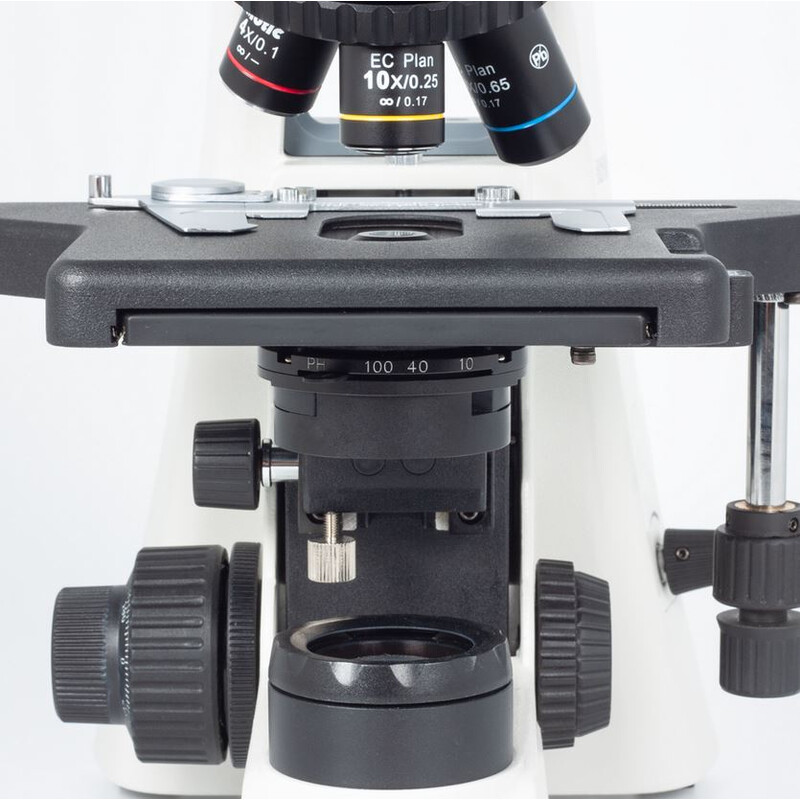

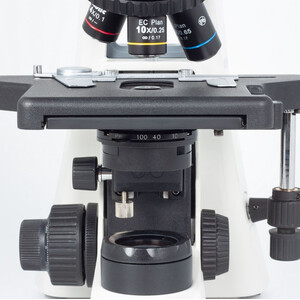

Stage Mechanical stage with built-in low position rackless coaxial stage control and sample holder
Stage size 150x150mm
Travel range X&Y 80x30mm
Condenser Focusable Abbe condenser N.A. 1.25 with slot for contrast sliders
Diaphragm Iris diaphragm
Focus mechanism Coaxial coarse and fine focusing system with tension adjustment
Fine focus precision 2µm
Focusing stroke 20mm
Upper limit stop Upper limit stop preset but adjustable
Filter holder On top of the illuminator with fixing cap
Transmitted illumination Quartz halogen 6V/30W with intensity control
Illumination interchangeability Quartz halogen 6V/30W or LED 3W
Transformer Internal
Power supply 100-240V (CE)
Accessories included
