Microscopio invertito AE2000 MET, trino, 50x-500x, LM, Darkfield, 100W

Name: Motic Microscopio invertito AE2000 MET, trino, 50x-500x, LM, Darkfield, 100W
Brand: Motic
Price: 8600 USD

$ 8.600,00 IVA incl., più spese di spedizione

troppo caro?

a breve termine
spedibile in 1-2 settimane + Tempo di trasporto

aggiungi al carrello

domande sul prodotto?

consiglia Microscopi

Descrizione prodotto

Per saperne di più sulla serie AE2000 MET...

Purtroppo, questa descrizione non è stato tradotto in italiano, in modo da trovare a questo punto una descrizione inglese.

AE2000MET

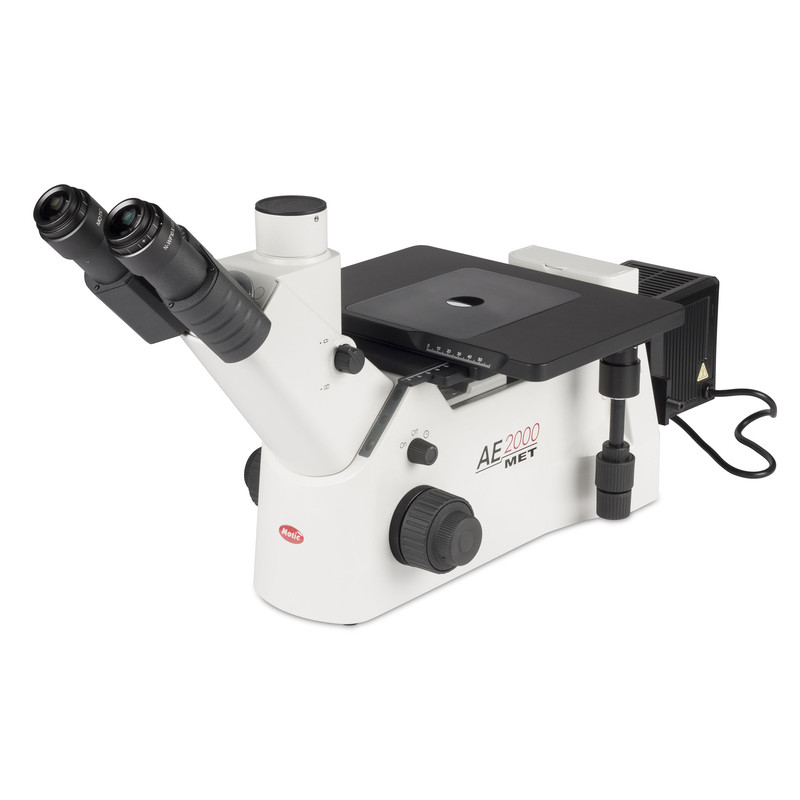

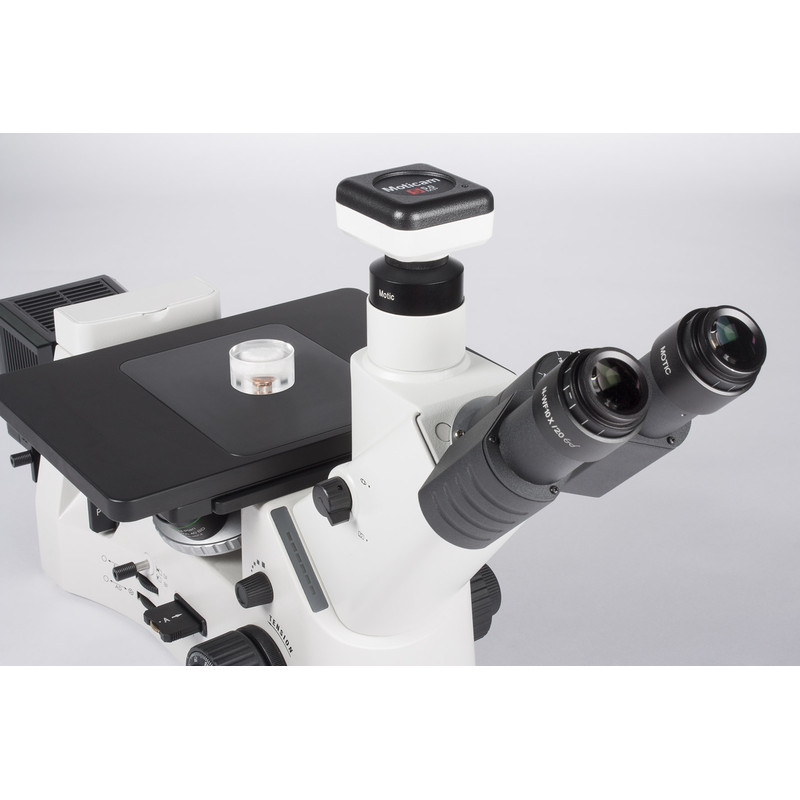

Inverted Metallurgical Microscope

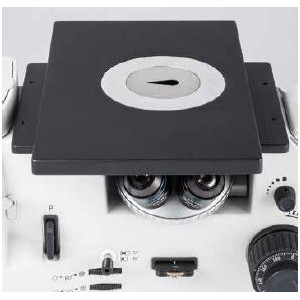

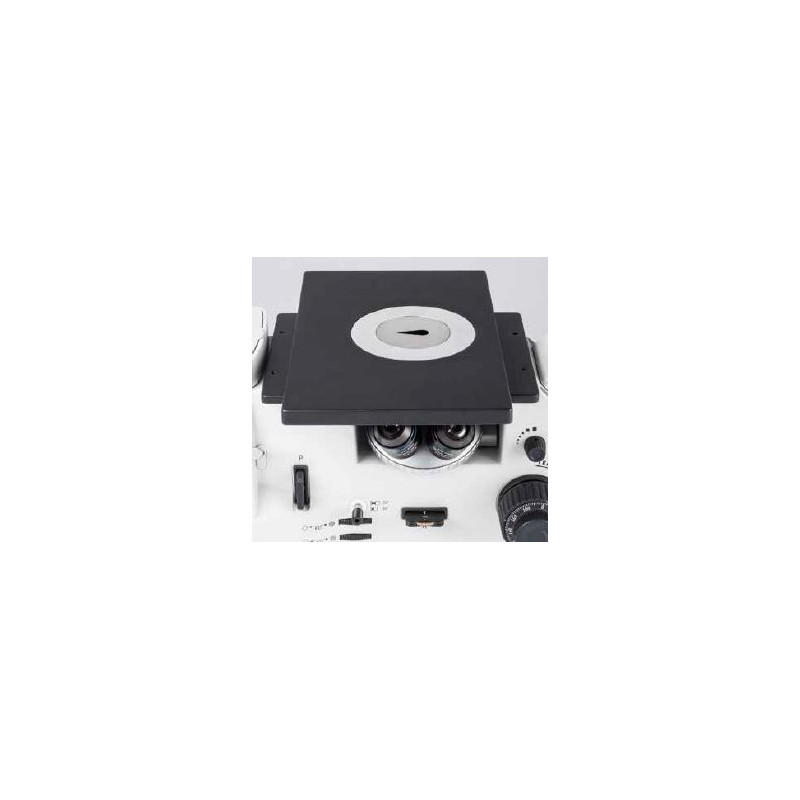

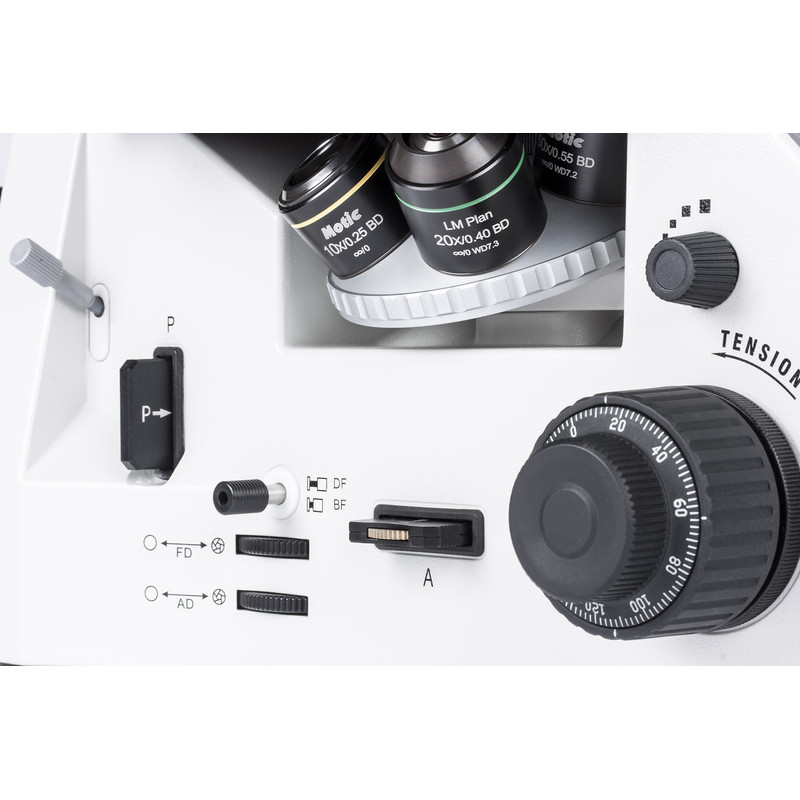

The AE2000-MET Inverted metallurgical microscope is especially designed for large, opaque samples in industrial inspection. Heavy specimen from automotive industry can perfectly be treated, as focusing of the sample is done by the 5-fold nosepiece. The smooth movement of the 3-plate stage allows a

precise positioning. Highlight of this microscope system is a complete series of LM Plan Achromatic objectives. This set delivers excellent images with high contrast and resolution in Bright field as well as in Dark field use.

All BF objectives from BA310-MET series can also be used without restrictions in optical performance. The powerful 50W Halogen light source gives plenty of resources for light consuming methods like Darkfield and POL contrast. An implemented “AUTO-OFF” mode turns off the illumination after 15 minutes.

An exemplary manufacturing quality guarantees a long lifetime of the instrument even under rough conditions of an industrial manufacturing process.

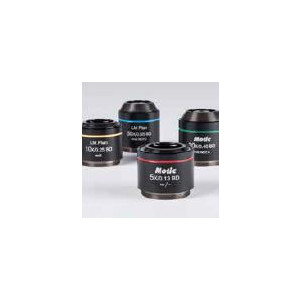

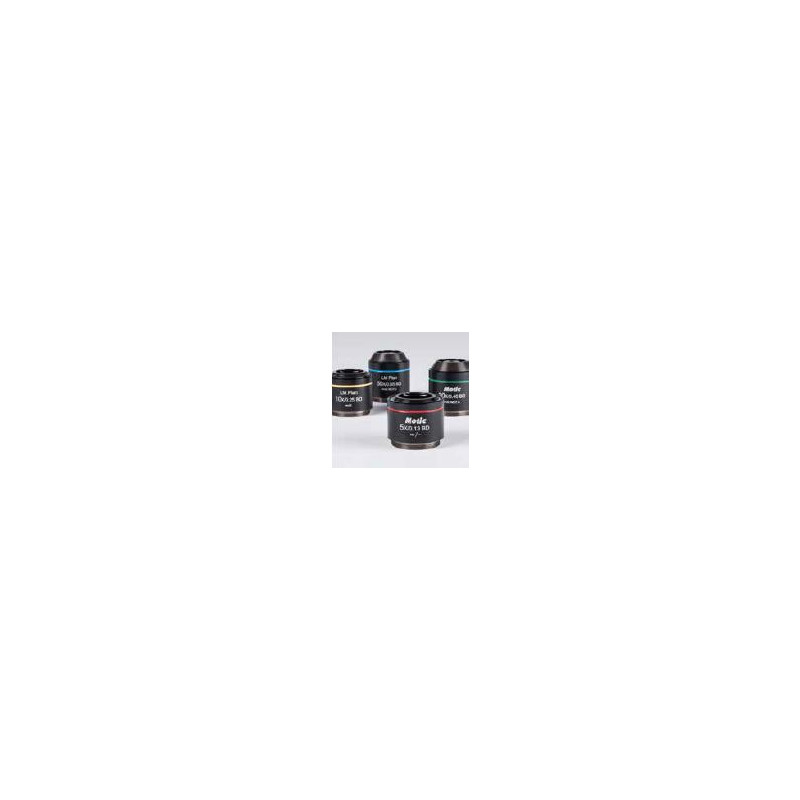

Highlight of this microscope system is a complete series of LM Plan Achromatic BF/DF objectives.

Specifiche

Ottica

Ingrandimento

500

Oculare

Tipo di obiettivo

Planare acromatico (Correzione all'infinito, CCIS LM plan acromatico, DIN 45 mm; 5x/013 (WD 20,3 mm),10X/0,25 (WD 17,5 mm), 20X/0,4 (WD 8,1 mm), 50X/0,55 (WD 8,4 mm))

Iluminazione
