Microscopi > Lenti d`ingrandimento stereo (Duale) > Stereo zoom sets > Evident Olympus > SZX7 > Evident Olympus Microscopio stereo zoom SZX7, trino, 0,8x - 5,6x, con luce trasmessa
Prodotto n.: 49711

Microscopio stereo zoom SZX7, trino, 0,8x - 5,6x, con luce trasmessa

$ 8.500,00 IVA incl. più spese di spedizione
troppo caro?
a breve termine
spedibile in 3-5 settimane + Tempo di trasporto

Nessuna consegna entro Natale. Ordina un buono!


Descrizione prodotto

Per saperne di più sulla serie SZX7...

Purtroppo, questa descrizione non è stato tradotto in italiano, in modo da trovare a questo punto una descrizione inglese.

Included components:

SZX7

The Galilean optical system of the SZX7 is outstanding in its class, especially when digital imaging is required. The SZX7 provides high-resolution images of up to 600 linepairs per millimeter with high color fidelity thanks to its advanced infinity-corrected optics and an impressive 7:1 zoom ratio with 0.8x to 5.6x range. The flexible modular design with a broad range of available objectives guarantees outstanding working distances. Rapid and comfortable observation is ensured by the new ComfortView eyepieces, and the ergonomic design promotes productivity and quality in routine applications. The universal LED illumination stand brings together all the advantages of LED technology.

Galilean Optical System

The Galilean optical system employs two (right/left) independent and parallel zoom optical paths, ensuring both superior optical performance and high system modularity.Careful selection of lens surface coatings and apochromatic zoom optics make it possible to observe and document specimen in more similar coloration to their original authentic colors.

Wide 7:1 Zoom Ratio

Covering a zoom magnification range of 8x-56x with its 1x objective, and offering up to 112x magnification with a 2x objective, the SZX7 macro-to-micro versatility makes it ideal for a wide range of routine observation and inspection tasks.

Choice of High-Performance Objectives

The DFPlan series combines high-NA resolving power and working comfort with "distortion-free" optical design for exceptionally flat imaging, and includes a 2x objective lens with an NA of 0.2 for high-resolution imaging at 600 linepairs per millimeter. DFPL2x/ DPFL1.5x/ DFPL 0.75x/ DFPL 0.5x

The DFPL series of objectives accurately reproduce specimen shapes with outstanding color fidelity. DFPLAPO 1.25x/ DFPLAP01x-4 Apochromatically corrected to achieve the highest degree of performance, Excellent in resolving power, contrast, and image flatness with minimum distortion.

SZX-ACH1.25x/ SZX-ACH1x. Well-balanced objectives that combine high resolving power with long working distance (90mm with 1x).

Digital Imaging and Documentation

The SZX7 can also be equipped with a trinocular tube and Olympus DP series digital camera for high-resolution imaging and research documentation. DP series cameras offer the high sensitivity for a wide range of applications, including high-sensitivity fluorescence imaging, and can be easily controlled using Olympus cellSens software.

ComfortView Eyepieces for Reduced Eyestrain

Quick, comfortable observation is ensured by this exclusive eyepiece design featuring pupil aberration control and appropriate positioning of the eye point. Also, superior optical coatings render true color images with fine detail.

Ergonomic Observation Tube and Extendable Eyepoint Adjuster

Olympus’ long tilting trinocular tube (SZX2-LTTR) improves the ergonomics of our stereo microscopes. This trinocular can be adjusted from 5 to 45 degrees to facilitate a more natural head and neck position while working. In addition, the eyepoint adjuster (SZX2-EEPA) enables users to raise or lower the eyepoint within a 120 mm range to accommodate users of different heights. The combination of these ergonomic components helps reduce stress and fatigue by keeping users in a more natural posture while they’re working.

Quick Magnification Recall

Many inspection and documentation tasks require the use of a known zoom magnification setting to ensure consistent and comparable results. The integrated click-stop mechanism provides quick and easy access to this important function.

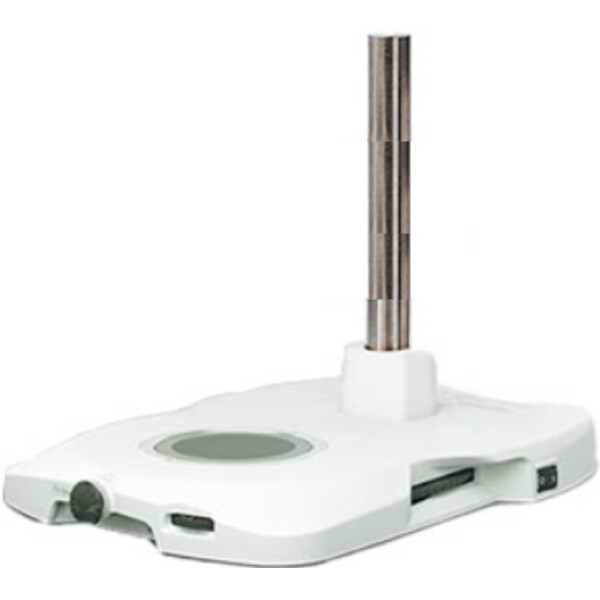

Comfortable LED Illumination Base

The universal reflected/transmitted light LED illumination stand brings together all the advantages of LED technology. The flat, high-brightness LEDs allow successful integration of transmitted illumination into a very slim base, which in turn facilitates easy specimen access and manipulation.

Electrostatic Discharge Protection

The main body and major accessories can quickly eliminate static electricity with the use of antistatic materials and coatings. This prevents a specimen under observation from electrostatic damage.

Easy on the Eyes: User Comfort is Where Precision Performance Begins

The SZX7 stereo microscope from Olympus is easy to use and delivers outstanding optical performance so that users are comfortable performing imaging tasks from advanced research toroutine inspections.

The microscope's Galilean optical system, previously restricted to more specialized microscopes, offers the best zoom ratio in this class, as well as outstanding image clarity, true color, and accurate reproduction of the original specimen in crisp, well-defined detail.

The SZX7 can be customized using a range of accessories to accommodate a variety of specimen types and sizes.

Quality Optics for Consistently Superior Image Reproduction

Clear, accurate specimen observation without strain. With its smooth finish, apochromatic zoom optics, ComfortView eyepieces, and easy adjustability, the SZX7 minimizes strain and fatigue while fulfilling the key mission of Olympus microscope designers—to provide the optimal image for any specimen. The performance of the high-level Galilean optical system is complemented by much less distortion than before with high numerical aperture. The SZX7 microscope body is manufactured using newly developed lead-free optics, demonstrating Olympus' commitment to protect the environment

7:1 Wide Zoom Ratio

With a magnification range of 8X–56X (using a 1X objective/10X eyepieces), the SZX7 offers a zoom ratio of 7:1. This is the best in its class and enables a specimen to be observed at the most appropriate magnification.

Excellent Resolving Power

High-quality objectives deliver accurate, high-resolution images that show specimens in minute detail.

A Range of Objectives to Suit Every Specimen and Every Application

  • Superior Image quality with high resolution and excellent flatness: The new DFPLAPO1X-4 objective provides excellent optical performance, with plan apochromat correction and an NA of 0.10.
  • Longest working distance (W.D.) in this class: Objectives range from the SZX-AC H1X (90 mm W.D.) to the DFPL0.5X-4 (171 mm W.D.). As a result, difficult to access surfaces can be easily observed.

Accurate Color Reproduction

Careful selection of lens surface coatings and apochromatic zoom optics make it possible to observe and document specimens with accurate color reproducibility.

ComfortView Eyepieces for Greater Comfort and Faster Work

New ComfortView eyepieces feature pupil aberration control and appropriate positioning in the eye point for fast and comfortable observations. The result is a field of view that is easy to find,

comfortable to view, and easy to keep.

Convenient Front-Access Operation

Improved access to the most frequently used knobs and controls maximizes operator comfort and reduces neck and back strain.

Quickly Recall Magnification Settings via Click-Stop Mechanism

Many inspection and documentation tasks require the use of a known zoom magnification setting to ensure consistent and comparable results. The integrated click-stop mechanism provides quick and easy access to this important function.

Specifiche

Ottica


Iluminazione
Luce trasmessa
Tipo di pila
LED
Ingrandimento
8x-56x
Tipo di obiettivo
Obiettivo zoom
Scala di rappresentazione
0.8-5.6
Oculare
10
Sistema ottica
CMO

Prestazioni


Zoom (ottico)
1:7

Meccanica


Tecnica di fabbricazione
Binoculare
Messa a fuoco
Movimento ampio
Tavolino portaoggetti
Piattino
Distanza di lavoro (mm)
90

Particolarità


Portafiltro
si

Generale


Adatto da
14
Lunghezza (mm)
253
Larghezza (mm)
166
Altezza (mm)
403
Peso (g)
6000
Serie
SZX7

Campi di aplicatione


Industria
si
Medicina
si
Didattica
si
Biologia
si

Campi di utilizzo


Metallurgia
si (-)
Università
si
Tecnologia dei semiconduttori
si
Biologia marina
si

Varie


Codice prodotto del fornitore
E0460035 (E07MIS0035)

Downloads

Sicurezza del prodotto

Produttore: Evident Europe GmbH, Caffamacherreihe 8–10, 20355 Hamburg, DE, https://www.evidentscientific.com/
