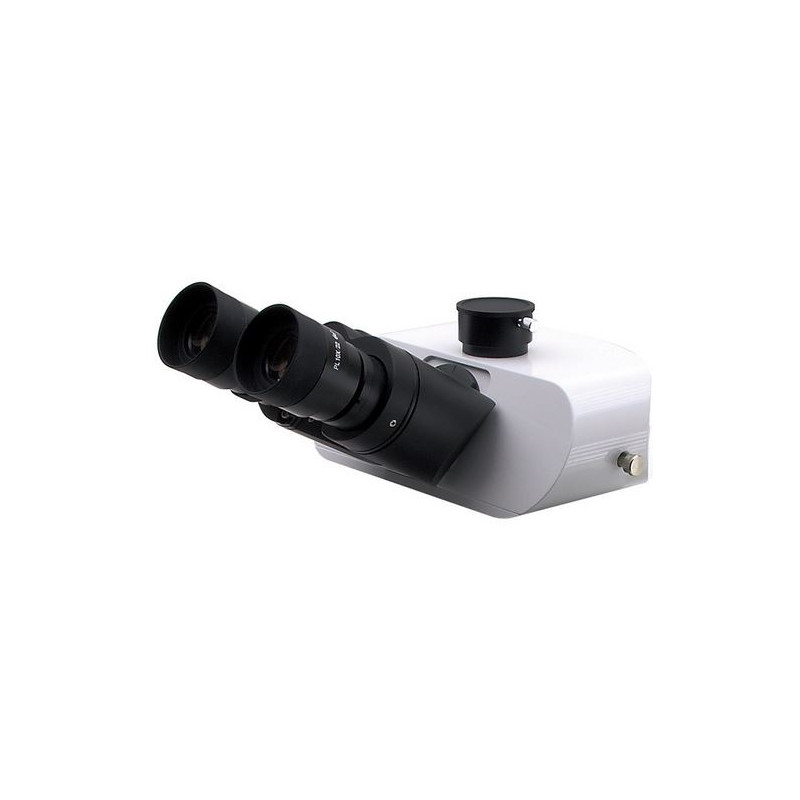

testa microscopio M-1011, trino

Model: Observation heads

Description: Optical observation heads for B-800 and B-1000

M-1010 - M-1011 - M-1012 - M-1013

Trinocular head M-1010 for B-800; M-1011 for B-1000

Binocular ERGO head M-1012 Trinocular ERGO head M-1013

• Output ports Models available:

- Trinocular head with 2 positions (ratios 100/0, 50/50) (M-1010)

- Trinocular head with 3 positions (ratios 100/0, 50/50, 0/100) (M-1011)

- Binocular ergonomic head (M-1012)

- Trinocular ergonomic head (ratios 100/0, 50/50) (M-1013)

• Ergonomics Binocular ERGO head: 30°- 60° inclination
• Trinocular ERGO head: 5° - 35° inclination
• Rotation Heads can be rotated by 360°
• Interpupillary
• adjustment
• 50mm - 75mm
• Diopter adjustment +- 5 diopter adjustment
• Notes Photo tube (internal diameter 23mm) included in Trinocular ERGO head
